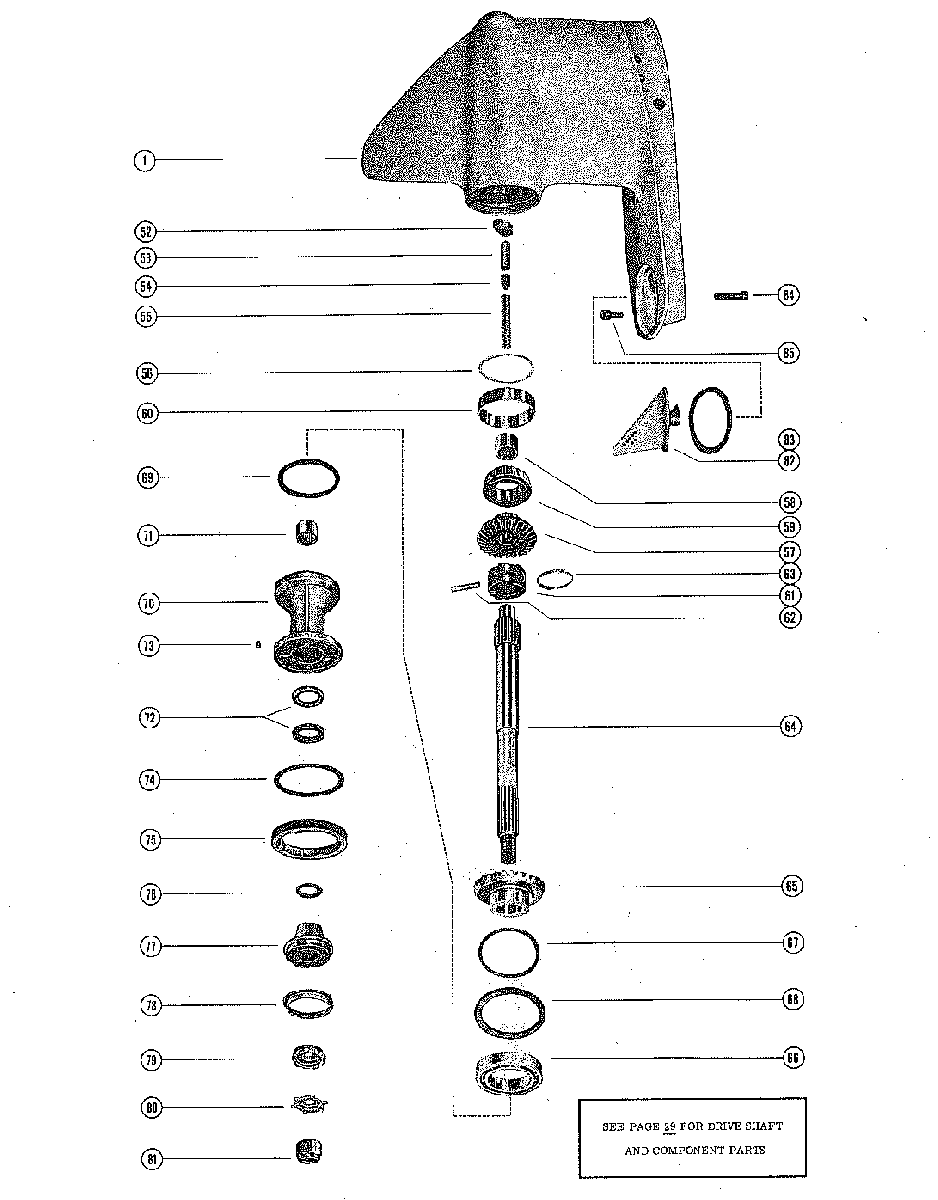

GEAR HOUSING ASSEMBLY, COMPLETE (MERC 1000E) (PAGE 2) для Mercury - 1000 1464949 THRU 1768403
-
№АртикулНазвание
-
-1623-2022A7 GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD) (SEE NOTE BELOW)GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD) (SEE NOTE BELOW)
-
11623-2022A8 GEAR HOUSING ASSEMBLY (SEE PAGE 30 FOR PARTS BREAKDOWN)GEAR HOUSING ASSEMBLY (SEE PAGE 30 FOR PARTS BREAKDOWN)
-
52760394 CAM, SHIFTCAM, SHIFT
-
5330625 FOLLOWER, AMFOLLOWER, AM
-
5430624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5524-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5615-30923A1 SHIM, BEARING OUTER RACE TO GEAR HOUSINGSHIM, BEARING OUTER RACE TO GEAR HOUSING
-
--43-53100A3 FORWARD GEAR ASSEMBLY, COMPLETEFORWARD GEAR ASSEMBLY, COMPLETE
-
5743-53100A3 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
5831-30895T BEARING, ROLLER - FORWARD GEAR ASSEMBLYBEARING, ROLLER - FORWARD GEAR ASSEMBLY
-
5931-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
6031-31092 CUP, TAPERED ROLLER BEARINGCUP, TAPERED ROLLER BEARING
-
6152-822539T RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
6217-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
6324-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6444-47900A2 SHAFT, PROPELLERSHAFT, PROPELLER
-
6543-31887 REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
6630-31265 BEARING, BALL - REVERSE GEAR ASSEMBLYBEARING, BALL - REVERSE GEAR ASSEMBLY
-
6715-29955A1 SHIM, THRUST WASHER TO GEAR HOUSINGSHIM, THRUST WASHER TO GEAR HOUSING
-
6812-71143A1 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSINGWASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
-
6925-29976 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
7031284T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
7131-30956T BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
7226-76868 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
7328-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
7412-29957 WASHER, GEAR HOUSING COVERWASHER, GEAR HOUSING COVER
-
7552699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7612-31013 WASHER, THRUST - BEARING CARRIERWASHER, THRUST - BEARING CARRIER
-
7730581A1 THRUST HUB AND WASHER ASSEMBLYTHRUST HUB AND WASHER ASSEMBLY
-
7812-29590 WASHER, CUPPED - THRUST HUBWASHER, CUPPED - THRUST HUB
-
7912-31211Q03 WASHER, SPLINED - PROPELLER SHAFTWASHER, SPLINED - PROPELLER SHAFT
-
8014-816629Q TAB WASHER, PROPELLER SHAFTTAB WASHER, PROPELLER SHAFT
-
8111-29594 NUT, PROPELLERNUT, PROPELLER
-
8231237 WATER PICKUP, GEAR HOUSINGWATER PICKUP, GEAR HOUSING
-
8327-30557 GASKET, WATER PICKUP TO GEAR HOUSINGGASKET, WATER PICKUP TO GEAR HOUSING
-
8410-30559 SCREW, WATER PICKUP TO GEAR HOUSING (2 1/4")SCREW, WATER PICKUP TO GEAR HOUSING (2 1/4")
-
8510-30206 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
