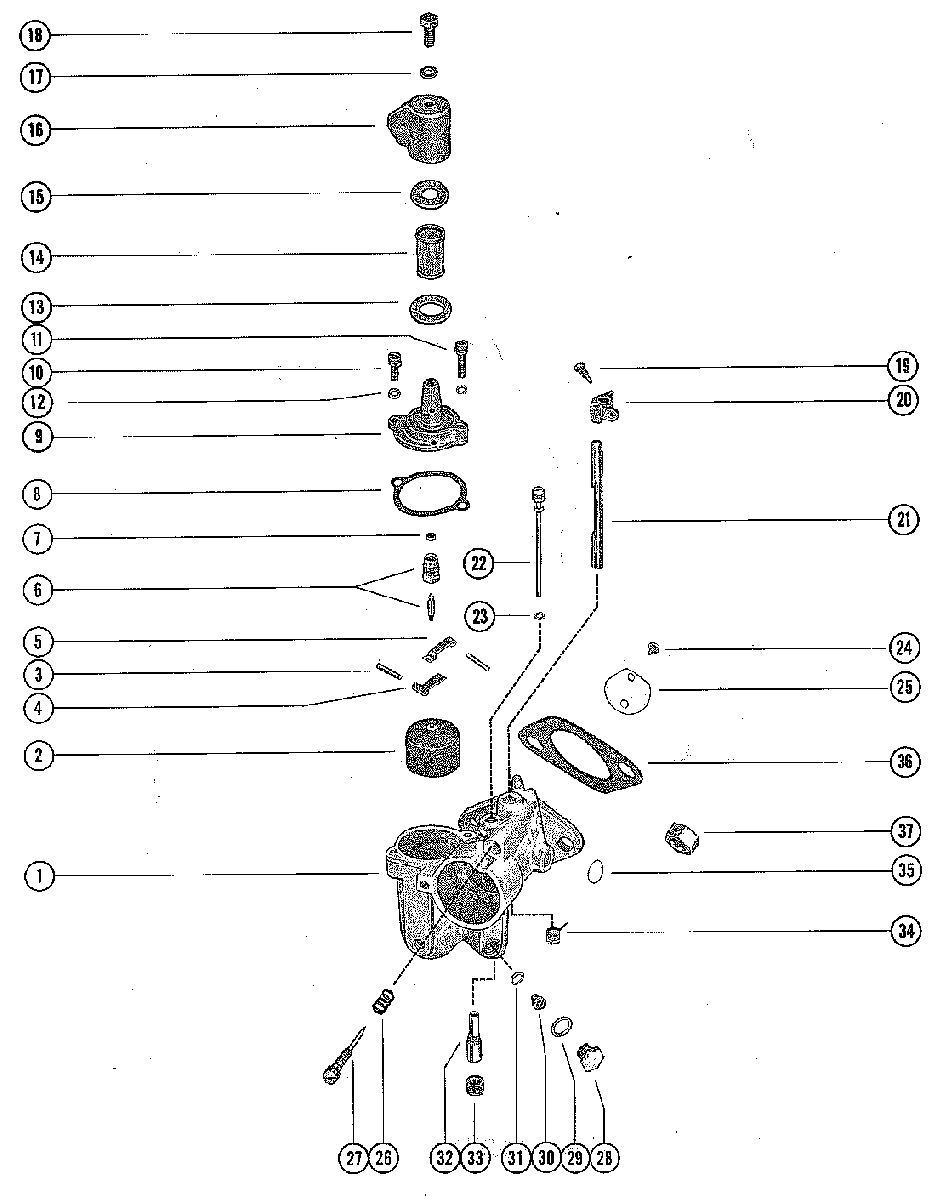

CARBURETOR ASSEMBLY для Mercury - 1000SS 2318586 THRU 2836018
-
№АртикулНазвание
-
11335-3359 CARBURETOR ASSEMBLY, COMPLETE (KC-10A)CARBURETOR ASSEMBLY, COMPLETE (KC-10A)
-
11335-3640 CARBURETOR ASSEMBLY, COMPLETE (KC-14A)CARBURETOR ASSEMBLY, COMPLETE (KC-14A)
-
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
390-8M0143356 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
490-8M0143356 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
590-8M0143356 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-92581 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
790-8M0143356 GASKET, INLET SEATGASKET, INLET SEAT
-
890-8M0143356 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
91399-1133 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
1010-22625 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-25850 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1010-52195 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-52196 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1213-26995 LOCKWASHER, FLOAT BOWL COVER SCREWSLOCKWASHER, FLOAT BOWL COVER SCREWS
-
1390-8M0143356 GASKET, STRAINER COVER (LARGE)GASKET, STRAINER COVER (LARGE)
-
141399-3938 SCREEN, FILTERSCREEN, FILTER
-
1590-8M0143356 GASKET, STRAINER COVER (SMALL)GASKET, STRAINER COVER (SMALL)
-
161399-4791A1 COVER, STRAINERCOVER, STRAINER
-
1790-8M0143356 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
1810-25822 SCREW, STRAINER COVER FASTENINGSCREW, STRAINER COVER FASTENING
-
191395-6027 SCREW. THROTTLE STOP LEVERSCREW. THROTTLE STOP LEVER
-
208146791 LEVER, THROTTLE STOPLEVER, THROTTLE STOP
-
211399-2012 SHAFT, THROTTLESHAFT, THROTTLE
-
2290-8M0143356 TUBE, IDLETUBE, IDLE
-
2390-8M0143356 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
2490-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
251399-3401 SHUTTER, THROTTLESHUTTER, THROTTLE
-
2690-8M0143356 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
271399-1713 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
2810-28405 SCREW PLUG - MAIN FUEL JET CHANNELSCREW PLUG - MAIN FUEL JET CHANNEL
-
2990-8M0143356 GAKSET, JET CHANNEL PLUG SCREWGAKSET, JET CHANNEL PLUG SCREW
-
301399-1461 JET, MAIN FUEL (.061)JET, MAIN FUEL (.061)
-
301399-1459 JET, MAIN FUEL (.059) - STANDARDJET, MAIN FUEL (.059) - STANDARD
-
301399-1457 JET, MAIN FUEL (.057)JET, MAIN FUEL (.057)
-
301399-1655 JET, MAIN FUEL (.055)JET, MAIN FUEL (.055)
-
3190-8M0143356 GASKET, MAIN FUEL JETGASKET, MAIN FUEL JET
-
3290-8M0143356 NOZZEL, MAINNOZZEL, MAIN
-
3310-28846 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
3490-8M0143356 SPRING, THROTTLE SHAFT RETURN (CTR&LOWR CARBURETOR)SPRING, THROTTLE SHAFT RETURN (CTR&LOWR CARBURETOR)
-
3490-8M0143356 SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
-
3590-8M0143356 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
--1399-2015 GASKET AND PACKING SET (1 PER CARBURETOR)GASKET AND PACKING SET (1 PER CARBURETOR)
-
--1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR)REPAIR PARTS KIT (1 PER CARBURETOR)
-
3627-31402 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3711-29250 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
