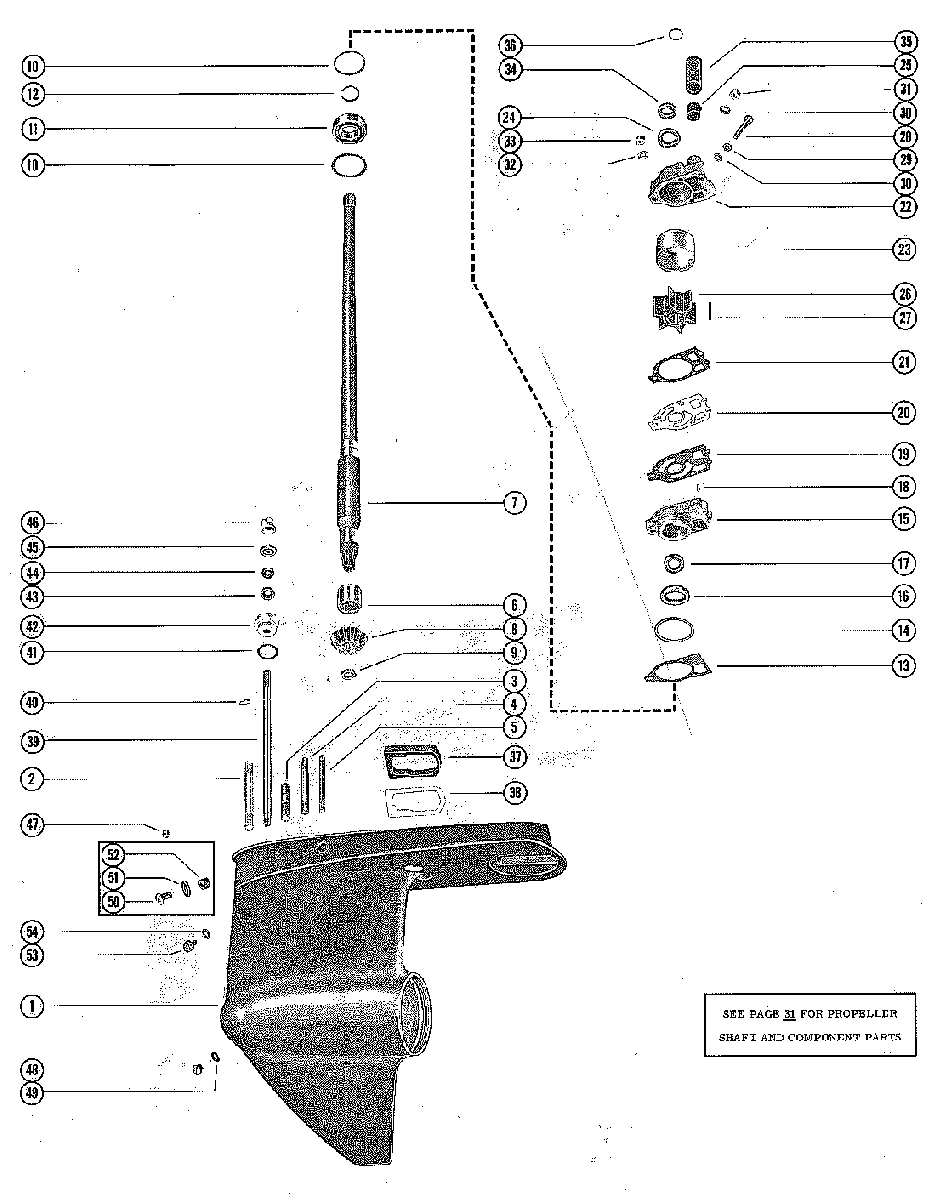

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 1000SS 2318586 THRU 2836018
-
№АртикулНазвание
-
-1623-3912A8 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELOW
-
-1623-3912A9 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOW
-
-1623-3912A8 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELOW
-
-1623-3912A9 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOW
-
11623-5244A14 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
11623-5244A14 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
216-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
-
316-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2-1/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2-1/16")
-
316-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2-1/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2-1/16")
-
416-8M0034463 STUD, WATER PUMP BASE&BODY TO GEAR HOUSING (3-3/8")STUD, WATER PUMP BASE&BODY TO GEAR HOUSING (3-3/8")
-
516-57919 STUD, WATER PUMP BASE&BODY TO GEAR HOUSING (3-5/16")STUD, WATER PUMP BASE&BODY TO GEAR HOUSING (3-5/16")
-
631-32898T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
745-47433 DRIVE SHAFT (SHORT SHAFT)DRIVE SHAFT (SHORT SHAFT)
-
745-47434 DRIVE SHAFT (LONG SHAFT)DRIVE SHAFT (LONG SHAFT)
-
843-49751 GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
-
911-35921 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
843-49751 GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
-
911-35921 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1015-30278A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSINGSHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING
-
1130-63326T BEARING, BALL - DRIVE SHAFT
SERIAL 00000000-02573851BEARING, BALL - DRIVE SHAFT
SERIAL 00000000-02573851 -
1130-63326T BEARING, BALL - DRIVE SHAFT
SERIAL 02573852-09999999BEARING, BALL - DRIVE SHAFT
SERIAL 02573852-09999999 -
1253-30726 RING, RETAINING - BALL BEARINGRING, RETAINING - BALL BEARING
-
1015-30278A1 SHIM, WATER PUMP BASE TO GEAR HOUSINGSHIM, WATER PUMP BASE TO GEAR HOUSING
-
1327-32438 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
1425-30224 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
1546-48758A1 WATER PUMP BASE ASSEMBLY(ALUMINUM)WATER PUMP BASE ASSEMBLY(ALUMINUM)
-
1546-48747A1 WATER PUMP BASE ASSEMBLY(PLASTIC)WATER PUMP BASE ASSEMBLY(PLASTIC)
-
1626-94038 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1726-16977 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1817-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODYDOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
-
1927-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATEGASKET, LOWER - WATER PUMP BASE TO FACE PLATE
-
20324351 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
-
2127-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODYGASKET, UPPER - FACE PLATE TO WATER PUMP BODY
-
2246-96148A8 WATER PUMP BODY ASSEMBLY(ALUMINUM)WATER PUMP BODY ASSEMBLY(ALUMINUM)
-
2246-96148T1 WATER PUMP BODY ASSEMBLY(PLASTIC)WATER PUMP BODY ASSEMBLY(PLASTIC)
-
2330915 INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2348752T INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2426-16977 OIL SEAL, WATER PUMP BODYOIL SEAL, WATER PUMP BODY
-
2526-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
2647-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2717-8M0034466 PIN, IMPELLER DRIVEPIN, IMPELLER DRIVE
-
2810-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (2-1/4")SCREW, WATER PUMP BODY TO GEAR HOUSING (2-1/4")
-
3013-26992 LOCKWASHER, WTR PUMP BDY FASTNG SCREW&STUDS (1/4")LOCKWASHER, WTR PUMP BDY FASTNG SCREW&STUDS (1/4")
-
3111-29598 NUT, WATER PUMP BODY FASTENING STUDS (1/4")NUT, WATER PUMP BODY FASTENING STUDS (1/4")
-
3213-26993 LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16")LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16")
-
3311-28770 NUT, WATER PUMP BODY FASTENING STUD (5/16")NUT, WATER PUMP BODY FASTENING STUD (5/16")
-
2913-26992 LOCKWASHER, WATER PUMP BODY SCREWLOCKWASHER, WATER PUMP BODY SCREW
-
3012-29245 WASHER, WATER PUMP BODY FASTENING SCREW AND STUDWASHER, WATER PUMP BODY FASTENING SCREW AND STUD
-
3111-826709109 NUT, WATER PUMP BODY FASTENING SCREWNUT, WATER PUMP BODY FASTENING SCREW
-
3212-36001 WASHER, WATER PUMP BODY FASTENING STUDWASHER, WATER PUMP BODY FASTENING STUD
-
3311-826709111 NUT, WATER PUMP BODY FASTENING STUDNUT, WATER PUMP BODY FASTENING STUD
-
3425-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
-
3523-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
3625-30613 "O" RING, UPPER - DRIVE SHAFT"O" RING, UPPER - DRIVE SHAFT
-
3737641001 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
3838051 PLATE, SUPPORT - EXHAUST TUBE SEALPLATE, SUPPORT - EXHAUST TUBE SEAL
-
3976062A1 SHAFT, SHIFT - LOWERSHAFT, SHIFT - LOWER
-
4053-29641 CLIP, RETAINING - SHIFT SHAFTCLIP, RETAINING - SHIFT SHAFT
-
4125-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
4223-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4326-24590 OIL SEAL, SHIFT SHAFT HOUSING (LOWER)OIL SEAL, SHIFT SHAFT HOUSING (LOWER)
-
4326-892361 OIL SEAL, SHIFT SHAFT BUSING (UPPER)OIL SEAL, SHIFT SHAFT BUSING (UPPER)
-
4412-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4578036 SPACER, LOWER - REVERSE LOCKINGSPACER, LOWER - REVERSE LOCKING
-
4643308T1 CAM, REVERSE LOCKINGCAM, REVERSE LOCKING
-
4722-390721 PLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLEPLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLE
-
4810-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
4912-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
-
5010-29608 SCREW, GEAR HOUSING FLUSHING HOLE - ALUMINUMSCREW, GEAR HOUSING FLUSHING HOLE - ALUMINUM
-
5123-29588 GASKET, GEAR HOUSING FLUSHING HOLE SCREW - ALUMINUMGASKET, GEAR HOUSING FLUSHING HOLE SCREW - ALUMINUM
-
5226-29612 SEAL, GEAR HOUSING FLUSHING HOLE - ALUMINUMSEAL, GEAR HOUSING FLUSHING HOLE - ALUMINUM
-
5319-48750 PLUG, GEAR HOUSING FLUSHING HOLE - PLASTICPLUG, GEAR HOUSING FLUSHING HOLE - PLASTIC
-
5412-49221 WASHER, GEAR HOUSING FLUSHING HOLE SCREW - PLASTICWASHER, GEAR HOUSING FLUSHING HOLE SCREW - PLASTIC
