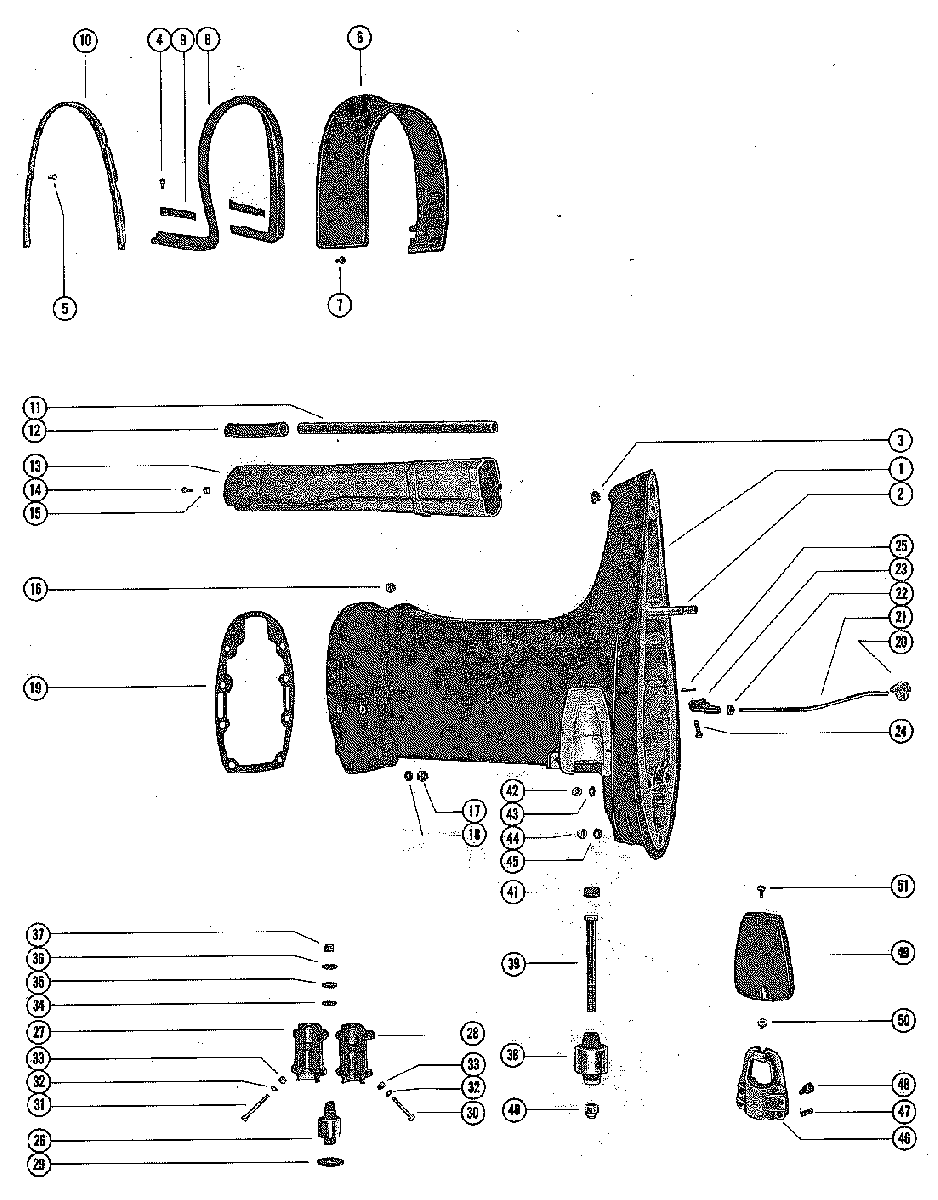

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 1000SS 2318586 THRU 2836018
-
№АртикулНазвание
-
11552-3911A3 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
SERIAL 00000000-02409053DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
SERIAL 00000000-02409053 -
11551-3918A3 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
SERIAL 00000000-02409053DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
SERIAL 00000000-02409053 -
11552-3911A3 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
SERIAL 02409054-09999999DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
SERIAL 02409054-09999999 -
11551-3918A3 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
SERIAL 02409054-09999999DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
SERIAL 02409054-09999999 -
11552-3911A3 DRIVE SHAFT HOUSING ASSEMBLY (SHOFT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHOFT SHAFT)
-
11551-3918A3 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
216-47165 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2-3/4")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2-3/4")
-
216-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2-11/16")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2-11/16")
-
319-47579 PLUG, PLASTIC - TRIM TAB SCREW HOLEPLUG, PLASTIC - TRIM TAB SCREW HOLE
-
410-48409 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")
-
510-48408 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")
-
637417 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
710-37571 SCREW, TRIM COVER TO BOTTOM COWLSCREW, TRIM COVER TO BOTTOM COWL
-
837919 SEAL, TRIM COVER TO DRIVE SHAFT HOUSINGSEAL, TRIM COVER TO DRIVE SHAFT HOUSING
-
937665 STRIP, RETAINING - TRIM COVER SEAL (SIDE)STRIP, RETAINING - TRIM COVER SEAL (SIDE)
-
1038052 STRIP, RETAINING - TRIM COVER SEAL (REAR)STRIP, RETAINING - TRIM COVER SEAL (REAR)
-
1132-37446 TUBE, WATER INLET (SHORT SHAFT)TUBE, WATER INLET (SHORT SHAFT)
-
1132-37438 TUBE, WATER INLET (LONG SHAFT)TUBE, WATER INLET (LONG SHAFT)
-
1223-29591 SLEEVE, RUBBER - WATER INLET TUBESLEEVE, RUBBER - WATER INLET TUBE
-
1338469 TUBE, EXHAUST (SHORT SHAFT)TUBE, EXHAUST (SHORT SHAFT)
-
1338470 TUBE, EXHAUST (LONG SHAFT)TUBE, EXHAUST (LONG SHAFT)
-
1410-38601 SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE
USE 3 SCREWS AND 3 NUTS THRU SERIAL #2409053 - USE 2 SCREWS AND 2 NUTS STARTING WITH SERIAL #2409054.SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE
USE 3 SCREWS AND 3 NUTS THRU SERIAL #2409053 - USE 2 SCREWS AND 2 NUTS STARTING WITH SERIAL #2409054. -
1410-38601 SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE
USE 3 SCREWS AND 3 NUTS THRU SERIAL #2409053 - USE 2 SCREWS AND 2 NUTS STARTING WITH SERIAL #2409054.SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE
USE 3 SCREWS AND 3 NUTS THRU SERIAL #2409053 - USE 2 SCREWS AND 2 NUTS STARTING WITH SERIAL #2409054. -
1511-35888 NUT, EXHAUST TUBE SCREW
USE 3 SCREWS AND 3 NUTS THRU SERIAL #2409053 - USE 2 SCREWS AND 2 NUTS STARTING WITH SERIAL #2409054.NUT, EXHAUST TUBE SCREW
USE 3 SCREWS AND 3 NUTS THRU SERIAL #2409053 - USE 2 SCREWS AND 2 NUTS STARTING WITH SERIAL #2409054. -
1511-35888 NUT, EXHAUST TUBE SCREW
USE 3 SCREWS AND 3 NUTS THRU SERIAL #2409053 - USE 2 SCREWS AND 2 NUTS STARTING WITH SERIAL #2409054.NUT, EXHAUST TUBE SCREW
USE 3 SCREWS AND 3 NUTS THRU SERIAL #2409053 - USE 2 SCREWS AND 2 NUTS STARTING WITH SERIAL #2409054. -
1611-23161 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
1711-8M0042636 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
1812-20086 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
1927-38471 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
-
2052887 GUIDE, PUSH ROD - REVERSE LOCKINGGUIDE, PUSH ROD - REVERSE LOCKING
-
2052887 GUIDE, PUSH ROD - RECERSE LOCKINGGUIDE, PUSH ROD - RECERSE LOCKING
-
2147591 ROD, PUSH - REVERSE LOCK (SHORT SHAFT)ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
-
2147558 ROD, PUSH - REVERSE LOCK (LONG SHAFT)ROD, PUSH - REVERSE LOCK (LONG SHAFT)
-
2211-69254 NUT, JAM - PUSH RODNUT, JAM - PUSH ROD
-
2347559 YOKE, PUSH RODYOKE, PUSH ROD
-
2424-78203A2 PIN, PUSH ROD TO REVERSE LOCKPIN, PUSH ROD TO REVERSE LOCK
-
2518-25191 COTTER PIN, PUSH ROD PINCOTTER PIN, PUSH ROD PIN
-
2675296 MOUNT, RUPPER - UPPERMOUNT, RUPPER - UPPER
-
2675297 MOUNT, RUBBER - UPPER (HEAVY DUTY)MOUNT, RUBBER - UPPER (HEAVY DUTY)
-
2731260 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
2837712 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
2749239 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
2853141 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
2924929 PACKING, "U" CUPPACKING, "U" CUP
-
3010-20012 SCREW, UPPER MOUNT COVER (1-5/8")SCREW, UPPER MOUNT COVER (1-5/8")
-
3110-28775 SCREW, UPPER MOUNT COVER (2-1/8")SCREW, UPPER MOUNT COVER (2-1/8")
-
3212-29245 WASHER, UPPER MOUNT COVER SCREWWASHER, UPPER MOUNT COVER SCREW
-
3311-35888 NUT, UPPER MOUNT COVER SCREWNUT, UPPER MOUNT COVER SCREW
-
3412-31262 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
3512-47840 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
3612-31263 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
3711-34933 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
3837399 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
3875300 MOUNT, RUBBER - LOWER )HEAVY DUTY)MOUNT, RUBBER - LOWER )HEAVY DUTY)
-
3910-75284 SCREW, UPPER MOUNT (5-1/2")SCREW, UPPER MOUNT (5-1/2")
-
4011-25096 NUT, MOUNT SCREWNUT, MOUNT SCREW
-
4125067 BUMPER, RUBBER - MOUNTING SCREWBUMPER, RUBBER - MOUNTING SCREW
-
4211-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
4312-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
4411-29489 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
4512-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
4635608 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
4724-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
4810-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSINGSCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
-
4935474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
5011-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
5110-29722 SCREW, COVER TO LOWER CLAMP MOUNTSCREW, COVER TO LOWER CLAMP MOUNT
