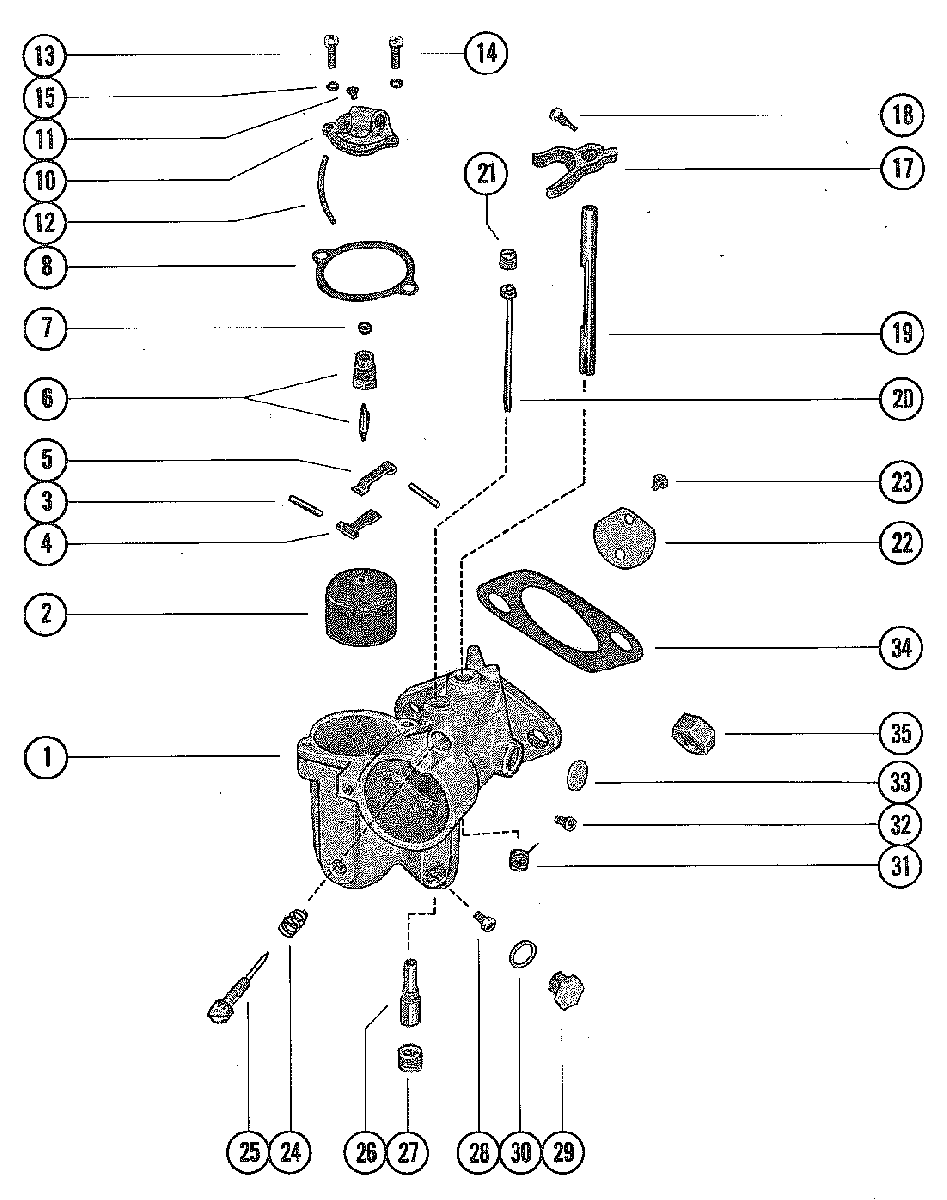

CARBURETOR ASSEMBLY для Mercury - 1150, 115 7112248 THRU 7131212
-
№АртикулНазвание
-
11368-5702A19 CARBURETOR ASSEMBLY
UNITED STATES 5050791 AND BELOW
AUSTRALIA 8054754 AND BELOW
CANADA 7118922 AND BELOWCARBURETOR ASSEMBLY
UNITED STATES 5050791 AND BELOW
AUSTRALIA 8054754 AND BELOW
CANADA 7118922 AND BELOW -
11368-5702A19 CARBURETOR ASSEMBLY
UNITED STATES 5050792 AND UP
AUSTRALIA 8054755 AND UP
CANADA 7118923 AND UPCARBURETOR ASSEMBLY
UNITED STATES 5050792 AND UP
AUSTRALIA 8054755 AND UP
CANADA 7118923 AND UP -
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
390-8M0143356 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
490-8M0143356 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
590-8M0143356 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-83181 INLET NEDDLE, SEAT AND GASKET
UNITED STATES 5050791 AND BELOW
AUSTRALIA 8054754 AND BELOW
CANADA 7118922 AND BELOWINLET NEDDLE, SEAT AND GASKET
UNITED STATES 5050791 AND BELOW
AUSTRALIA 8054754 AND BELOW
CANADA 7118922 AND BELOW -
61395-83181 INLET NEEDLE, SEAT AND GASKET
UNITED STATES 5050792 AND UP
AUSTRALIA 8054755 AND UP
CANADA 7118923 AND UPINLET NEEDLE, SEAT AND GASKET
UNITED STATES 5050792 AND UP
AUSTRALIA 8054755 AND UP
CANADA 7118923 AND UP -
790-8M0143356 GASKET, INLET SEATGASKET, INLET SEAT
-
890-8M0143356 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
101395-5680 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
111395-5733 JET, BOWL VENT (.092)
UNITED STATES 5050791 AND BELOW
AUSTRALIA 8054754 AND BELOW
CANADA 7118922 AND BELOWJET, BOWL VENT (.092)
UNITED STATES 5050791 AND BELOW
AUSTRALIA 8054754 AND BELOW
CANADA 7118922 AND BELOW -
111399-6249 JET, BOWL VENT (.96)
UNITED STATES 5050792 AND UP
AUSTRALIA 8054755 AND UP
CANADA 7118923 AND UPJET, BOWL VENT (.96)
UNITED STATES 5050792 AND UP
AUSTRALIA 8054755 AND UP
CANADA 7118923 AND UP -
1232-892024122 HOSE, ECONOMIZERHOSE, ECONOMIZER
-
1310-52195 SCREW, FLOAT BOWL COVERSCREW, FLOAT BOWL COVER
-
141395-4804 SCREW, FLOAT BOWL COVERSCREW, FLOAT BOWL COVER
-
1513-26995 LOCKWASHER, FLOAT BOWL COVER SCREWLOCKWASHER, FLOAT BOWL COVER SCREW
-
178146791 LEVER, THROTTLE (SEE NOT BELOW)LEVER, THROTTLE (SEE NOT BELOW)
-
181395-6027 SCREW, THROTTLE STOP LEVER (SEE FOOT NOTE BELOW)SCREW, THROTTLE STOP LEVER (SEE FOOT NOTE BELOW)
-
191395-7942 SHAFT, THROTTLESHAFT, THROTTLE
-
2090-8M0143356 TUBE, IDLETUBE, IDLE
-
211395-4540 SCREW, BODY (IDLE TUBE)SCREW, BODY (IDLE TUBE)
-
221395-5108 SHUTTER, THROTTLESHUTTER, THROTTLE
-
2390-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
2490-8M0143356 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
251399-3515 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
2690-8M0143356 NOZZLE, MAINNOZZLE, MAIN
-
271395-4542 SCREW, PLUG-MAIN NOZZLESCREW, PLUG-MAIN NOZZLE
-
281399-3794 JET, MAIN FUEL (.074)-STANDARD
UNITED STATES 5050792 AND UP
AUSTRALIA 8054755 AND UP
CANADA 7118923 AND UPJET, MAIN FUEL (.074)-STANDARD
UNITED STATES 5050792 AND UP
AUSTRALIA 8054755 AND UP
CANADA 7118923 AND UP -
281395-6207 JET, MAIN FUEL (.072)-STANDARD
UNITED STATES 5050791 AND BELOW
AUSTRALIA 8054754 AND BELOW
CANADA 7118922 AND BELOWJET, MAIN FUEL (.072)-STANDARD
UNITED STATES 5050791 AND BELOW
AUSTRALIA 8054754 AND BELOW
CANADA 7118922 AND BELOW -
281395-6030 JET, MAIN FUEL (.070)JET, MAIN FUEL (.070)
-
281395-6029 JET, MAIN FUEL (.068)JET, MAIN FUEL (.068)
-
291395-4541 SCREW,PLUG-MAIN FUEL JET CHANNELSCREW,PLUG-MAIN FUEL JET CHANNEL
-
3090-8M0143356 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
3190-8M0143356 SPRING, THROTTLE SHAFT RETURNSPRING, THROTTLE SHAFT RETURN
-
321395-4543 SCREW, BODY CHANNELSCREW, BODY CHANNEL
-
3390-8M0143356 WELCH PLUG, BODY CANNELWELCH PLUG, BODY CANNEL
-
--1395-879194024 GASKET AND PACKING SET ( 1 PER CARBURETOR)GASKET AND PACKING SET ( 1 PER CARBURETOR)
-
--1395-51091 REPAIR PARTS KIT (1 CARBURETOR)
UNITED STATES 5050791 AND BELOW
AUSTRALIA 8054754 AND BELOW
CANADA 7118922 AND BELOWREPAIR PARTS KIT (1 CARBURETOR)
UNITED STATES 5050791 AND BELOW
AUSTRALIA 8054754 AND BELOW
CANADA 7118922 AND BELOW -
--1395-51091 REPAIR PARTS KIT(1 PER CARBURETOR)
UNITED STATES 5050792 AND UP
AUSTRALIA 8054755 AND UP
CANADA 7118923 AND UPREPAIR PARTS KIT(1 PER CARBURETOR)
UNITED STATES 5050792 AND UP
AUSTRALIA 8054755 AND UP
CANADA 7118923 AND UP -
3427-481641 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3511-64809 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
-
--27-85653A87 GASKET SETGASKET SET
