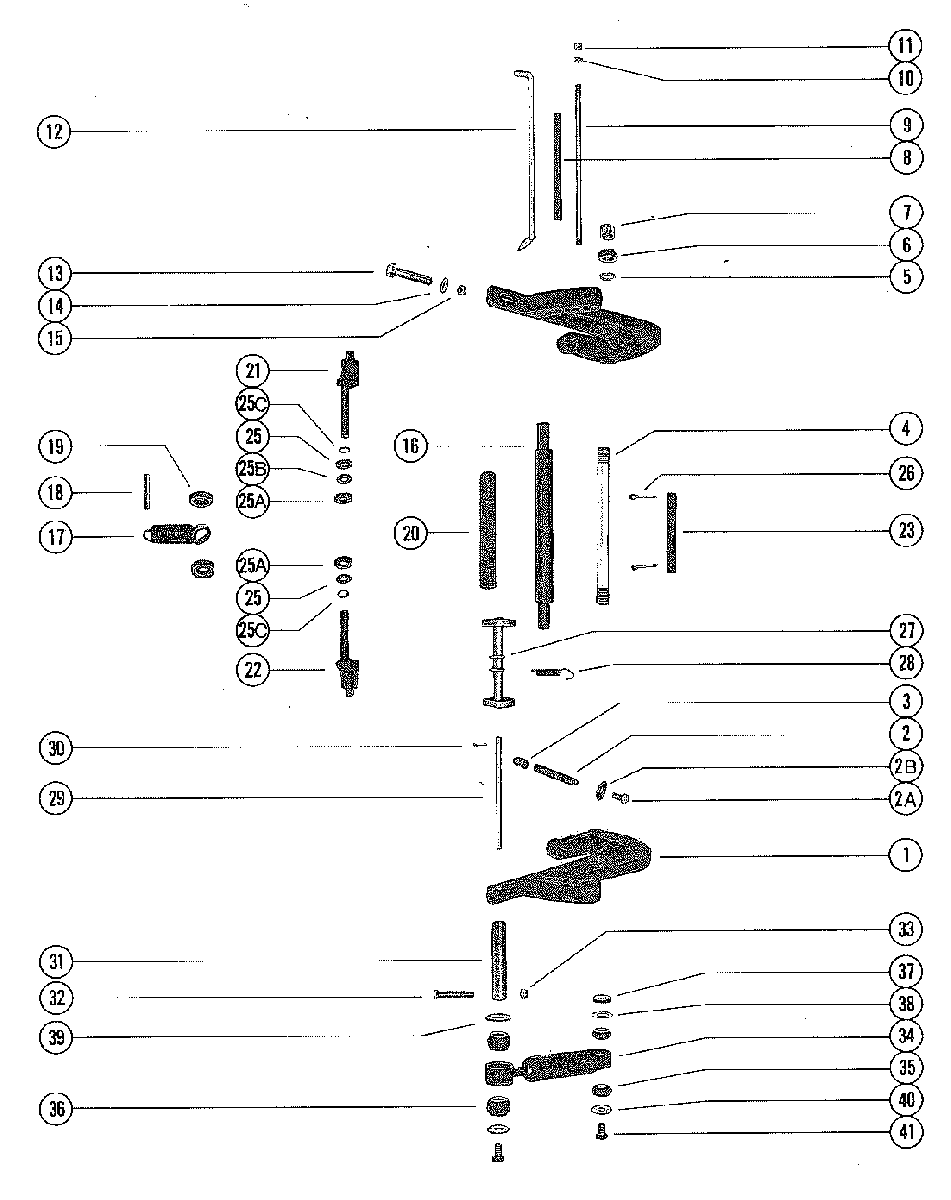

CLAMP BRACKET AND REVERSE LOCK для Mercury - 1150, 115 7112248 THRU 7131212
-
№АртикулНазвание
-
11440-8394A1 CLAMP BRACKET ASSEMBLYCLAMP BRACKET ASSEMBLY
-
210-78492A1 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
2A10-78495 SCREW, WASHER ATTACHINGSCREW, WASHER ATTACHING
-
2B12-78493 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
375043 CAP, THUMB SCREWCAP, THUMB SCREW
-
48M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKETTUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
-
512-52864 WASHER, CLAMP BRACKET TILT TUBEWASHER, CLAMP BRACKET TILT TUBE
-
611-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
753078 CAP, PLASTIC - TILT TUBECAP, PLASTIC - TILT TUBE
-
823-59624 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
916-59625 STUD
CLAMP BRACKET (NOT USED WITH FULL POWER TRIM)STUD
CLAMP BRACKET (NOT USED WITH FULL POWER TRIM) -
1013-26993 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
1111-28770 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1217-8M0026068 TILT LOCK PIN ASSEMBLY
(NOT USED WITH FULL POWER TRIM)TILT LOCK PIN ASSEMBLY
(NOT USED WITH FULL POWER TRIM) -
1310-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM (LOWER)BOLT, CLAMP BRACKET TO BOAT TRANSOM (LOWER)
-
1310-68299 BOLT, CLAMP BRACKET TO BOAT TRANSOM (UPPER)BOLT, CLAMP BRACKET TO BOAT TRANSOM (UPPER)
-
1412-46765 WASHER, CLAMP BRACKET BOLT (LOWER)WASHER, CLAMP BRACKET BOLT (LOWER)
-
1412-68300 WASHER, CLAMP BRACKET BOLT (UPPER)WASHER, CLAMP BRACKET BOLT (UPPER)
-
1511-82670912 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
1655-28416 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
1724-94891 SPRING, COIL - SWIVEL BRACKET
(NOT USED WITH FULL POWER TRIM)SPRING, COIL - SWIVEL BRACKET
(NOT USED WITH FULL POWER TRIM) -
1817-38311 PIN, COIL SPRING MOUNTING
(NOT USED WITH FULL POWER TRIM)PIN, COIL SPRING MOUNTING
(NOT USED WITH FULL POWER TRIM) -
1923-28688 SPACER, RUBBER - COIL SPRING POSITIONING
(NOT USED WITH FULL POWER TRIM)SPACER, RUBBER - COIL SPRING POSITIONING
(NOT USED WITH FULL POWER TRIM) -
2063473 TUBE
CUSHION - SHOCK PIN(USED WITH FULL POWER TRIM)TUBE
CUSHION - SHOCK PIN(USED WITH FULL POWER TRIM) -
2176386 TILT LOCK ASSEMBLY (STARBOARD)TILT LOCK ASSEMBLY (STARBOARD)
-
2276385T TILT LOCK ASSEMBLY (PORT)TILT LOCK ASSEMBLY (PORT)
-
2379659 TUBE, TILT LOCKTUBE, TILT LOCK
-
2513-69150 WASHER
WAVE - TILT LOCK (STARBOARD SIDE ONLY)WASHER
WAVE - TILT LOCK (STARBOARD SIDE ONLY) -
25A26-22734 OIL SEAL, SWIVEL BRACKET (TILT LOCK)OIL SEAL, SWIVEL BRACKET (TILT LOCK)
-
25B12-76388 WASHER, TILT LOCK (STARBOARD SIDE ONLY)WASHER, TILT LOCK (STARBOARD SIDE ONLY)
-
25C25-627021 "O" RING, TILT LOCK"O" RING, TILT LOCK
-
2618-47959 COTTER PIN, TILT LOCKCOTTER PIN, TILT LOCK
-
2787431 REVERSE LOCK ASSEMBLY
(NOT USED WITH FULL POWER TRIM)REVERSE LOCK ASSEMBLY
(NOT USED WITH FULL POWER TRIM) -
2824-78203A2 SPRING, REVERSE LOCK TENSION
(NOT USED WITH FULL POWER TRIM)SPRING, REVERSE LOCK TENSION
(NOT USED WITH FULL POWER TRIM) -
2956349 SHAFT, REVERSE LOCK PIVOT
(NOT USED WITH FULL POWER TRIM)SHAFT, REVERSE LOCK PIVOT
(NOT USED WITH FULL POWER TRIM) -
3018-45882 COTTER PIN, REVERSE LOCK TO SHAFT
(NOT USED WITH FULL POWER TRIM)COTTER PIN, REVERSE LOCK TO SHAFT
(NOT USED WITH FULL POWER TRIM) -
3155-28414 PIN, LOWER SHOCK MOUNTINGPIN, LOWER SHOCK MOUNTING
-
3210-21937 SCREW, LOWER SHOCK PINSCREW, LOWER SHOCK PIN
-
3311-20184 NUT, LOWER SHOCK PIN SCREWNUT, LOWER SHOCK PIN SCREW
-
3455-58780A7 SHOCK ABSORBER
(NOT USED WITH FULL POWER TRIM)SHOCK ABSORBER
(NOT USED WITH FULL POWER TRIM) -
3523-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
(NOT USED WITH FULL POWER TRIM)BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
(NOT USED WITH FULL POWER TRIM) -
3612-28196 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
-
3723-73203 SPACER
UPPER SHOCK BUSHING TO CLAMP BRACKETSPACER
UPPER SHOCK BUSHING TO CLAMP BRACKET -
3812-28196 WASHER, UPPER BUSHING RETAINER (INNER)WASHER, UPPER BUSHING RETAINER (INNER)
-
3912-59378 WASHER, LOWER BUSHING RETAINER (INNER)WASHER, LOWER BUSHING RETAINER (INNER)
-
4012-69374 WASHER
UPPER AND LOWER BUSHING RETAINER (OUTER)WASHER
UPPER AND LOWER BUSHING RETAINER (OUTER) -
4110-69375 SCREW, UPPER AND LOWER SHOCK MOUNTING PINSCREW, UPPER AND LOWER SHOCK MOUNTING PIN
-
-27-85653A87 GASKET SETGASKET SET
