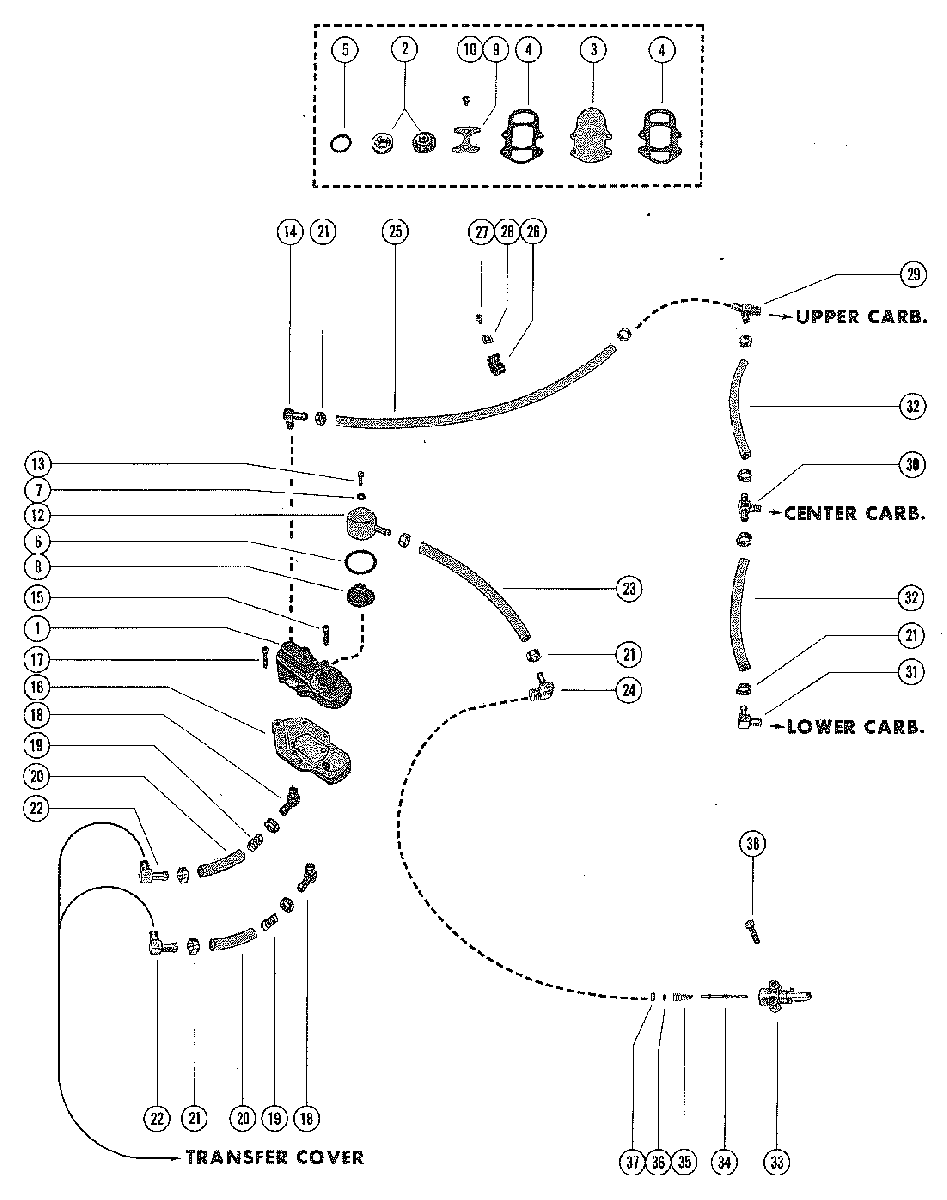

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 1150, 115 7112248 THRU 7131212
-
№АртикулНазвание
-
166530A2 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-30430A7 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
389031A1 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
490-8M0143356 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
590-8M0143356 GASKET, CHECK VALVEGASKET, CHECK VALVE
-
690-8M0143356 "O" RING, COVER TO HOUSING"O" RING, COVER TO HOUSING
-
790-8M0143356 GASKET, NYLON-FILTER COVER SCREWGASKET, NYLON-FILTER COVER SCREW
-
835-59072 SCREEN, FILTER-INLETSCREEN, FILTER-INLET
-
923004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
1010-43725 SCREW, RETAINER TO FUEL PUMP ( 1/4")SCREW, RETAINER TO FUEL PUMP ( 1/4")
-
1235-91078A1 COVER, FUEL INLETCOVER, FUEL INLET
-
1310-37370 SCREW, COVER TO FUEL PUMP (5/8")SCREW, COVER TO FUEL PUMP (5/8")
-
1422-19688 FITTING, FUEL OUTLETFITTING, FUEL OUTLET
-
1510-66686 SCREW, FUEL PUMP TO BASE (1")SCREW, FUEL PUMP TO BASE (1")
-
1666575 BASE, FUEL PUMPBASE, FUEL PUMP
-
1710-66687 SCREW, FUEL PUMP TO BOTTOM COWL (1 1/2")SCREW, FUEL PUMP TO BOTTOM COWL (1 1/2")
-
1822-19688 FITTING, PULSE LINE (90 DEG.)FITTING, PULSE LINE (90 DEG.)
-
1924-68434 SPRING, PLUSE LINESPRING, PLUSE LINE
-
2010-70732 PULSE LINE (3 1/4")PULSE LINE (3 1/4")
-
2154-68424 CLAMP, FUEL LINE ATTACHINGCLAMP, FUEL LINE ATTACHING
-
2222-19688 FITTING, PULSE LINE TO TRANSFER COVER (90 DEG.)FITTING, PULSE LINE TO TRANSFER COVER (90 DEG.)
-
2332-8M0108355 FUEL LINE, ADAPTOR TO FUEL PUMP (6 3/4")FUEL LINE, ADAPTOR TO FUEL PUMP (6 3/4")
-
2422-63981 ELBOW, FUEL LINE TO ADAPTORELBOW, FUEL LINE TO ADAPTOR
-
2532-8M0108355 FUEL LINE
FUEL PUMP TO UPPER CARBURETOR (15 3/4")FUEL LINE
FUEL PUMP TO UPPER CARBURETOR (15 3/4") -
2654-22627 CLIP,FUEL LINE ATTACHINGCLIP,FUEL LINE ATTACHING
-
2710-62568 SCREW, FUEL LINE CLIP (3/8")SCREW, FUEL LINE CLIP (3/8")
-
288M0084613 "D" WASHER, FUEL LINE CLIP SCREW"D" WASHER, FUEL LINE CLIP SCREW
-
2922-66328 FITTING, TEE-UPPER CARBURETORFITTING, TEE-UPPER CARBURETOR
-
3022-64706001 FITTING, TEE-CENTER CARBURETORFITTING, TEE-CENTER CARBURETOR
-
3122-19688 FITTING, ELBOW-LOWER CARBURETORFITTING, ELBOW-LOWER CARBURETOR
-
3232-8M0108355 FUEL LINE, CARBURETOR TO CARBURETOR (6 1/4")FUEL LINE, CARBURETOR TO CARBURETOR (6 1/4")
-
3322833 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
3423069 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
3524-23067T SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
3625-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
3730188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
3810-69029 SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
-
-27-85653A87 GASKET SETGASKET SET
