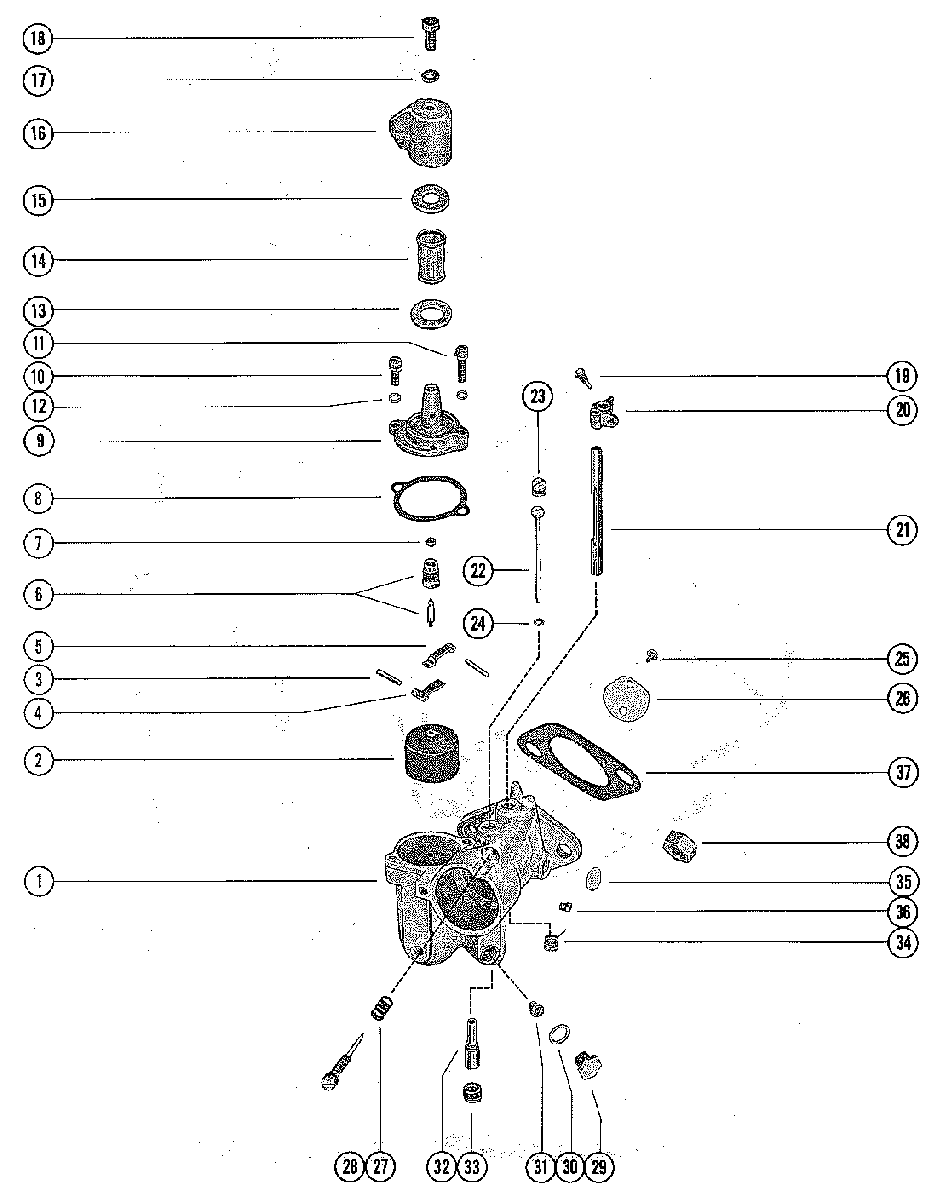

CARBURETOR ASSEMBLY для Mercury - 1250 2314956 THRU 2839368
-
№АртикулНазвание
-
11348-3547 CARBURETOR ASSEMBLY, COMPLETE (KD-1A) SEE NOTE ON PAGE 14CARBURETOR ASSEMBLY, COMPLETE (KD-1A) SEE NOTE ON PAGE 14
-
11348-3547 CARBURETOR ASSEMBLY, COMPLETE (KD-1B)CARBURETOR ASSEMBLY, COMPLETE (KD-1B)
-
11348-3718 CARBURETOR ASSEMBLY, COMPLETE (KD-2A) SEE NOTE ON PG 14CARBURETOR ASSEMBLY, COMPLETE (KD-2A) SEE NOTE ON PG 14
-
21395-8673 FLOAT ASSEMBLY SEE NOTE ON PG 14FLOAT ASSEMBLY SEE NOTE ON PG 14
-
390-8M0143356 PIN, FLOAT LEVER PINION SEE NOTE ON PG 14PIN, FLOAT LEVER PINION SEE NOTE ON PG 14
-
490-8M0143356 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
590-8M0143356 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-92581 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
790-8M0143356 GASKET, INLET SEATGASKET, INLET SEAT
-
890-8M0143356 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
91399-1133 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
1010-22625 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-25850 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1010-52195 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-52196 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1213-26995 LOCKWASHER, FLOAT BOWL COVER SCREWLOCKWASHER, FLOAT BOWL COVER SCREW
-
1390-8M0143356 GASKET, STRAINER COVER (LARGE)GASKET, STRAINER COVER (LARGE)
-
141399-3938 SCREEN, FILTERSCREEN, FILTER
-
1590-8M0143356 GASKET, STRAINER COVER (SMALL)GASKET, STRAINER COVER (SMALL)
-
161399-4791A1 COVER, STRAINERCOVER, STRAINER
-
1790-8M0143356 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
1810-25822 SCREW, STRAINER COVER FASTENINGSCREW, STRAINER COVER FASTENING
-
191395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
208146791 LEVER, THROTTLE STOP (SEE NOTE BELOW)LEVER, THROTTLE STOP (SEE NOTE BELOW)
-
211395-7942 SHAFT, THROTTLESHAFT, THROTTLE
-
2290-8M0143356 TUBE, IDLETUBE, IDLE
-
2290-8M0143356 TUBE, IDLETUBE, IDLE
-
2310-23178 SCREW, BODY (IDLE TUBE)SCREW, BODY (IDLE TUBE)
-
2490-8M0143356 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
2590-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
261395-9017 SHUTTER, THROTTLESHUTTER, THROTTLE
-
2790-8M0143356 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
281399-3515 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
2910-28405 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
3090-8M0143356 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
311399-3517 JET, MAIN FUEL (.084)JET, MAIN FUEL (.084)
-
311399-3518 JET, MAIN FUEL (.082) - STANDARDJET, MAIN FUEL (.082) - STANDARD
-
311395-6201 JET, MAIN FUEL (.080)JET, MAIN FUEL (.080)
-
311399-3520 JET, MAIN FUEL (.0785)JET, MAIN FUEL (.0785)
-
311399-3796 JET, MAIN FUEL (.076) - STANDARDJET, MAIN FUEL (.076) - STANDARD
-
311399-3794 JET, MAIN FUEL (.074)JET, MAIN FUEL (.074)
-
311395-6207 JET, MAIN FUEL (.072)JET, MAIN FUEL (.072)
-
3290-8M0143356 NOZZLE, MAIN (FOR KD-1A CARBURETOR)NOZZLE, MAIN (FOR KD-1A CARBURETOR)
-
3290-8M0143356 NOZZLE, MAIN (FOR KD1B CARBURETOR)NOZZLE, MAIN (FOR KD1B CARBURETOR)
-
3290-8M0143356 NOZZLE, MAINNOZZLE, MAIN
-
331399-3522 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
3490-8M0143356 SPRING, THROTTLE SHAFT RETURN (CENTER AND LOWER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (CENTER AND LOWER CARBURETOR)
-
3490-8M0143356 SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
-
3590-8M0143356 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
3610-23030 SCREW, BODY CHANNELSCREW, BODY CHANNEL
-
--1395-879194024 GASKET AND PACKING SET (1 PER CARBURETOR)GASKET AND PACKING SET (1 PER CARBURETOR)
-
--1399-3524 REPAIR PARTS KIT (1 PER CARBURETOR) - FOR KD-1A CARBURETORREPAIR PARTS KIT (1 PER CARBURETOR) - FOR KD-1A CARBURETOR
-
--1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR) - FOR KD-1B CARBURETORREPAIR PARTS KIT (1 PER CARBURETOR) - FOR KD-1B CARBURETOR
-
--1395-879194024 GASKET AND PACKING SET (1 PER CARBURETOR)GASKET AND PACKING SET (1 PER CARBURETOR)
-
--1395-92621 REPAIR PARTS KIT (1 PER CARBURETOR)REPAIR PARTS KIT (1 PER CARBURETOR)
-
3727-481641 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3811-29250 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
