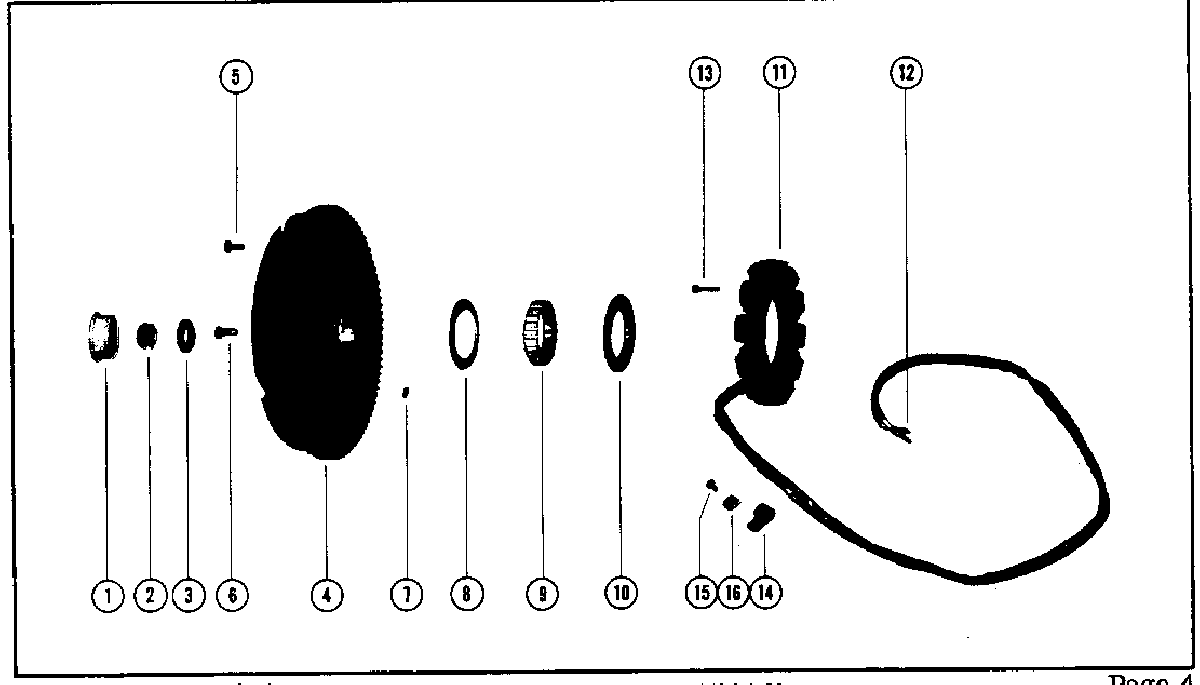

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 1250 2314956 THRU 2839368
-
№АртикулНазвание
-
119-45907 PLUG8 FLYWHEEL PULLER THREADSPLUG8 FLYWHEEL PULLER THREADS
-
211-22339 NUT8 FLYWHEELNUT8 FLYWHEEL
-
211-52901 NUT, FLYWHEEL (PART OF A436-31874A4 CRANKSHAFT ASSEMBLY)NUT, FLYWHEEL (PART OF A436-31874A4 CRANKSHAFT ASSEMBLY)
-
312-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
4225-2494A37 FLYWHEEL ASSEMBLY, COMPLETEFLYWHEEL ASSEMBLY, COMPLETE
-
4225-2494A37 FLYWHEEL ASSEMBLY, COMPLETEFLYWHEEL ASSEMBLY, COMPLETE
-
510-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
-
610-68997 SCREW, PLATE AND HUB TO FLEXIBLE PLATE (3/4")SCREW, PLATE AND HUB TO FLEXIBLE PLATE (3/4")
-
717-26618 PIN, DOWEL - PULLEY TO FLYWHEELPIN, DOWEL - PULLEY TO FLYWHEEL
-
829788 FLANGE, FLYWHEEL PULLEYFLANGE, FLYWHEEL PULLEY
-
930306 PULLEY, FLYWHEELPULLEY, FLYWHEEL
-
1029787 HUB, FLYWHEEL PULLEYHUB, FLYWHEEL PULLEY
-
11398-3301 STATOR, ALTERNATORSTATOR, ALTERNATOR
-
11398-4793 STATOR, ALTERNATORSTATOR, ALTERNATOR
-
1230050 TERMINAL, STATOR LEAD WIRETERMINAL, STATOR LEAD WIRE
-
1310-57021 SCREW, STATOR TO UPPER END CAP (7/8")SCREW, STATOR TO UPPER END CAP (7/8")
-
1454-22875 CLIP, STATOR LEAD FASTENING (7/16")CLIP, STATOR LEAD FASTENING (7/16")
-
1510-62568 SCREW, STATOR LEAD CLIP (#10 SHEET METAL)SCREW, STATOR LEAD CLIP (#10 SHEET METAL)
-
1510-69079 SCREW, STATOR LEAD CLIP (7/16")SCREW, STATOR LEAD CLIP (7/16")
-
1454-26550 CLIP, STATOR/WIRING HARNESS LEADS FASTENING (5/16")CLIP, STATOR/WIRING HARNESS LEADS FASTENING (5/16")
-
1510-37655 SCREW, STATOR LEAD CLIP FASTENING (10-32 X 1/2")SCREW, STATOR LEAD CLIP FASTENING (10-32 X 1/2")
-
168M0084613 "D" WASHER, CLIP FASTENING SCREW"D" WASHER, CLIP FASTENING SCREW
