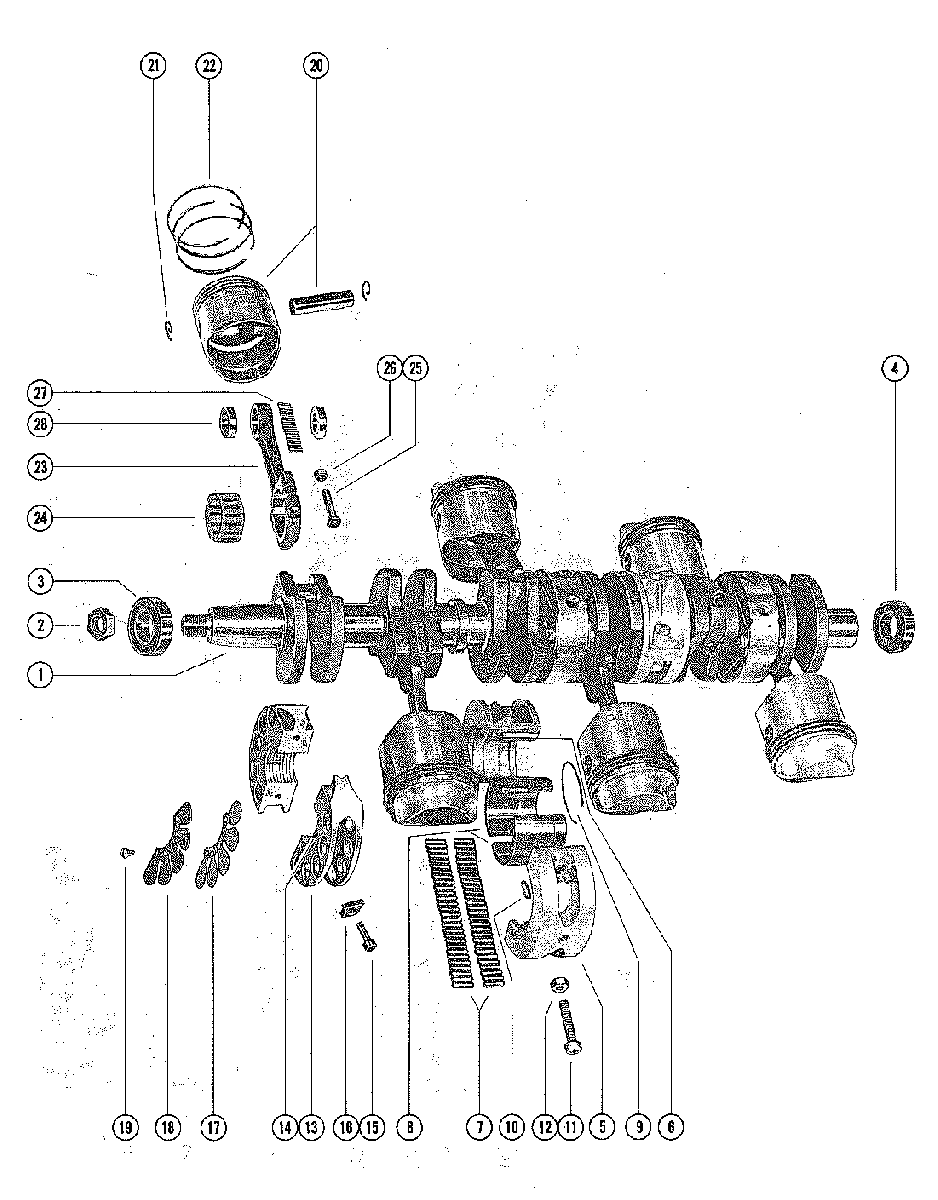

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 1250 2314956 THRU 2839368
-
№АртикулНазвание
-
1436-9072A1 CRANKSHAFT ASSEMBLY (NOT AS SHOWN)CRANKSHAFT ASSEMBLY (NOT AS SHOWN)
-
1436-9072A1 CRANKSHAFT ASSEMBLY (NOT AS SHOWN)CRANKSHAFT ASSEMBLY (NOT AS SHOWN)
-
211-52901 NUT, FLYWHEEL TO CRANKSHAFTNUT, FLYWHEEL TO CRANKSHAFT
-
330-62567T BEARING, BALL - UPPERBEARING, BALL - UPPER
-
430-63742T BEARING, BALL - LOWER
SERIAL 00000000-02709827BEARING, BALL - LOWER
SERIAL 00000000-02709827 -
430-63742T BEARING, BALL - LOWER
SERIAL 02709828-09999999BEARING, BALL - LOWER
SERIAL 02709828-09999999 -
5535-3190A2 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
617-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
729-714221 BEARING, NEEDLE - OUTER RACEBEARING, NEEDLE - OUTER RACE
-
826113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
953-26933 RING, SMAP - OUTER RACERING, SMAP - OUTER RACE
-
1017-47246 DOWEL PIN, STEPPEDDOWEL PIN, STEPPED
-
1110-22968 SCREW, CENTER MAIN BEARING CLAMPINGSCREW, CENTER MAIN BEARING CLAMPING
-
1211-20184 NUT, BEARING CLAMPING SCREWNUT, BEARING CLAMPING SCREW
-
13540-7238A2 MAIN BEARING ASSEMBLY, VALVE TYPEMAIN BEARING ASSEMBLY, VALVE TYPE
-
1417-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1510-45775 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
1611-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1734-56007A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
1834-48081 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
1910-20597 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
-
20742-3512A2 PISTON AND PISTON PIN ASSEMBLY "G" TYPE LOCK RING
SEE DRAWING BELOWPISTON AND PISTON PIN ASSEMBLY "G" TYPE LOCK RING
SEE DRAWING BELOW -
2140-45740 LOCK RING, PISTON PIN G" TYPE LOCK RING
SEE DRAWING BELOWLOCK RING, PISTON PIN G" TYPE LOCK RING
SEE DRAWING BELOW -
2239-78816A12 RING, PISTON (1/16") G" TYPE LOCK RING
SEE DRAWING BELOWRING, PISTON (1/16") G" TYPE LOCK RING
SEE DRAWING BELOW -
20742-3512A2 PISTON AND PISTON PIN ASSEMBLY "C" TYPE LOCK RING
SEE DRAWING BELOWPISTON AND PISTON PIN ASSEMBLY "C" TYPE LOCK RING
SEE DRAWING BELOW -
2153-857196 LOCK RING, PISTON PIN "C" TYPE LOCK RING
SEE DRAWING BELOWLOCK RING, PISTON PIN "C" TYPE LOCK RING
SEE DRAWING BELOW -
2239-78816A12 RING, PISTON (1/16" THICK) "C" TYPE LOCK RING
SEE DRAWING BELOWRING, PISTON (1/16" THICK) "C" TYPE LOCK RING
SEE DRAWING BELOW -
23624-8101A3 CONNECKTING ROD AND CAP ASSEMBLYCONNECKTING ROD AND CAP ASSEMBLY
-
23624-8101A3 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2431-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
2510-54803 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
2611-49091 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
2729-47270 BEARING NEEDLE - PISTON PINBEARING NEEDLE - PISTON PIN
-
2812-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
