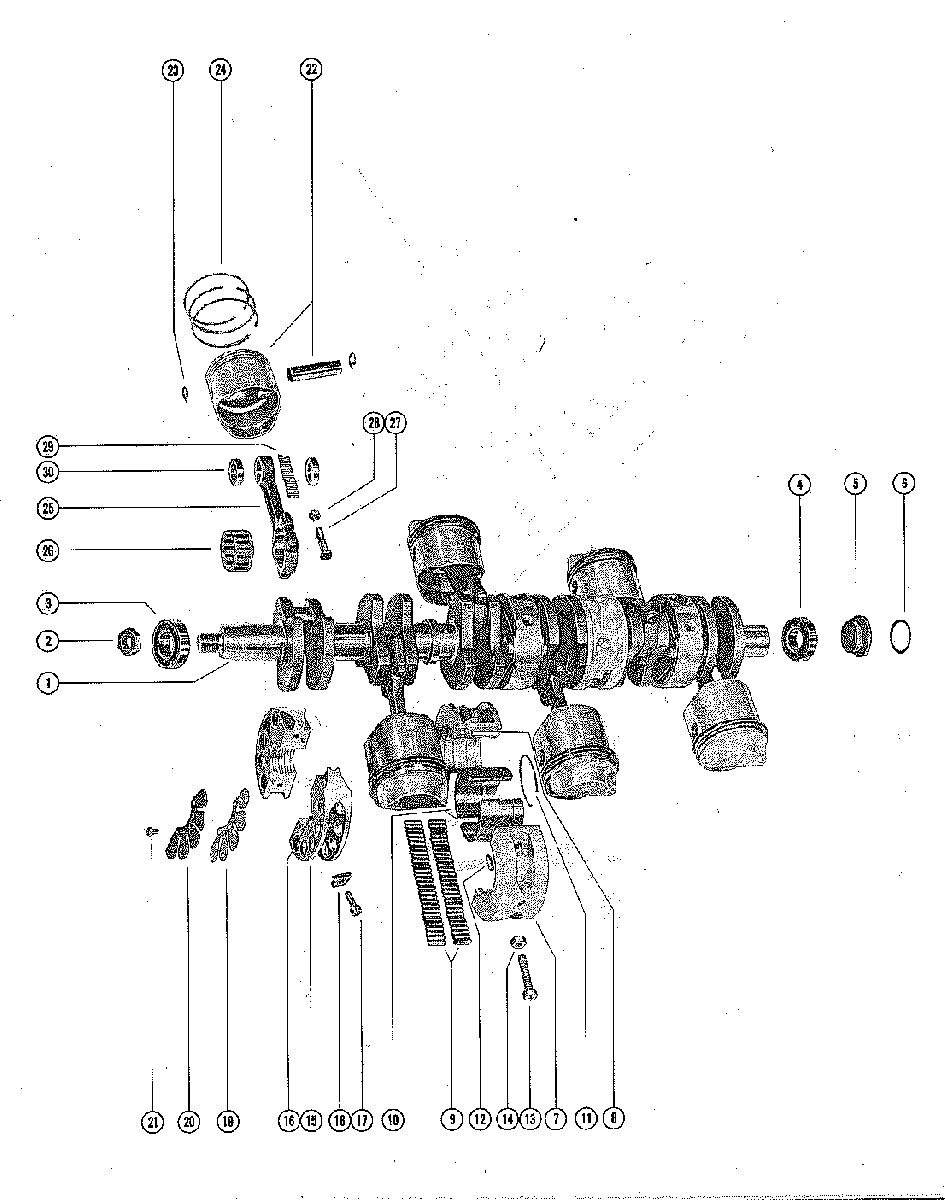

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 1350 2839369 THRU 3293233
-
№АртикулНазвание
-
1436-9072A1 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
211-52901 NUT, FLYWHEEL TO CRANKSHAFTNUT, FLYWHEEL TO CRANKSHAFT
-
330-62567T BEARING, BALL - UPPERBEARING, BALL - UPPER
-
430-63742T BEARING, BALL - LOWERBEARING, BALL - LOWER
-
554196A6 CARRIER ASSEMBLY, "O" RING
SERIAL 02940021-09999999CARRIER ASSEMBLY, "O" RING
SERIAL 02940021-09999999 -
625-35126 "O" RING, CARRIER
SERIAL 02940021-09999999"O" RING, CARRIER
SERIAL 02940021-09999999 -
7535-3190A2 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
817-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
929-714221 BEARING, NEEDLE - OUTER RACEBEARING, NEEDLE - OUTER RACE
-
1026113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1153-26933 RING, SNAP - OUTER RACERING, SNAP - OUTER RACE
-
1217-47246 DOWEL PIN, STEPPEDDOWEL PIN, STEPPED
-
1310-22968 SCREW, CENTER MAIN BEARING CLAMPINGSCREW, CENTER MAIN BEARING CLAMPING
-
1411-20184 NUT, BEARING CLAMPING SCREWNUT, BEARING CLAMPING SCREW
-
15540-7238A2 MAIN BEARING ASSEMBLY, VALVE TYPEMAIN BEARING ASSEMBLY, VALVE TYPE
-
1617-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1710-45775 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
1811-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1934-56007A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
2034-56008 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
2110-20055 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
-
22774-9137A12 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
2353-857196 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2439-78816A12 RING, PISTON (1/16")RING, PISTON (1/16")
-
25624-8101A3 CONNECTING ROD AND CAP ASSEMBLY
SERIAL 00000000-02942990CONNECTING ROD AND CAP ASSEMBLY
SERIAL 00000000-02942990 -
25624-8101A3 CONNECTING ROD AND CAP ASSEMBLY
SERIAL 03036066-09999999CONNECTING ROD AND CAP ASSEMBLY
SERIAL 03036066-09999999 -
2631-62596A1 BEARING ASSEMBLY, CRANKPIN
SERIAL 00000000-02942990BEARING ASSEMBLY, CRANKPIN
SERIAL 00000000-02942990 -
2631-62596A1 BEARING ASSEMBLY, CRANKPIN
SERIAL 03036066-09999999BEARING ASSEMBLY, CRANKPIN
SERIAL 03036066-09999999 -
2710-54803 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
2811-49091 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
2929-47270 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
3012-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
--774-9137A13 PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
OVERSIZE PISTONS AND RINGSPISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
OVERSIZE PISTONS AND RINGS -
--39-78811A12 RING, PISTON (.015 OVERSIZE) - 1/16" THICK
OVERSIZE PISTONS AND RINGSRING, PISTON (.015 OVERSIZE) - 1/16" THICK
OVERSIZE PISTONS AND RINGS
