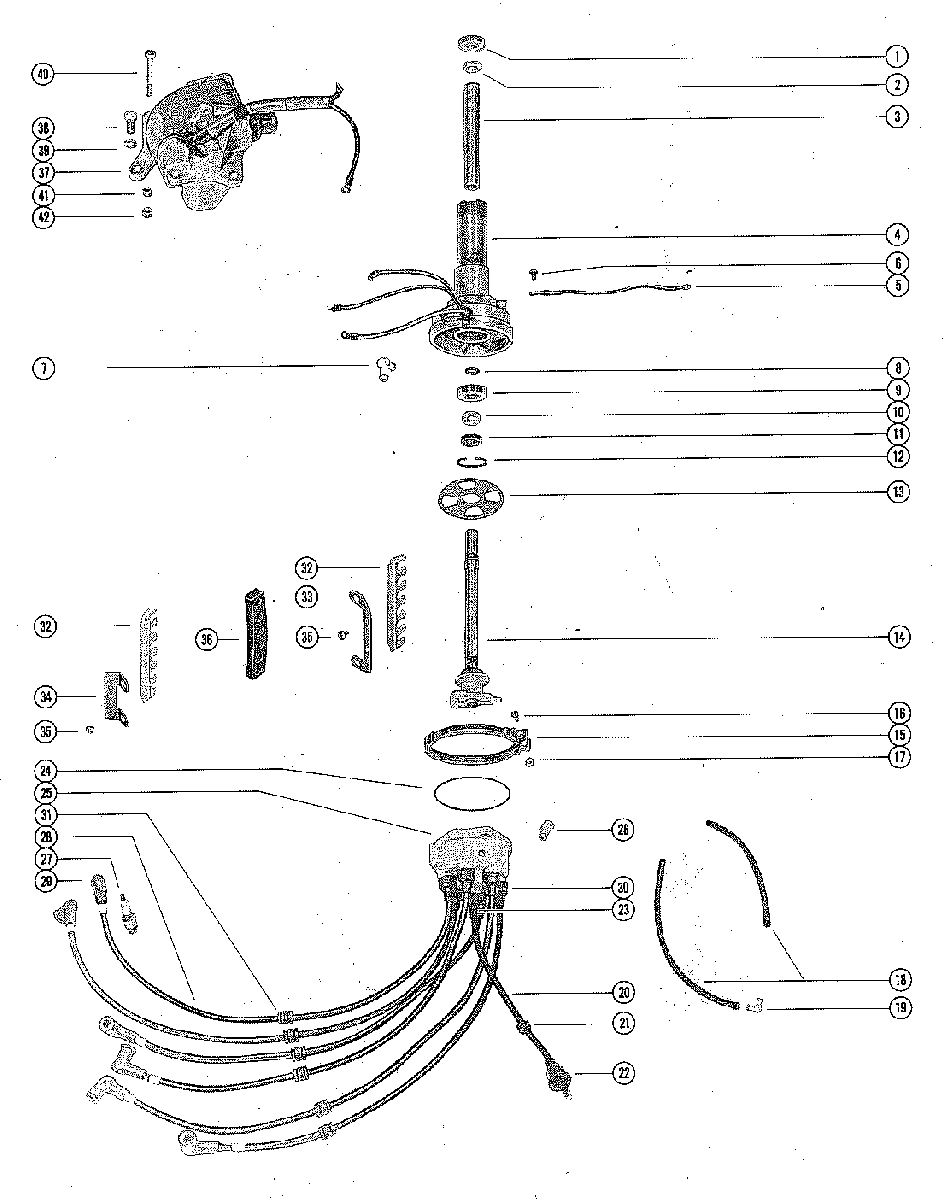

DISTRIBUTOR HOUSING AND ROTOR для Mercury - 1350 2839369 THRU 3293233
-
№АртикулНазвание
-
130-20066 BALL BEARING, DISTRIBUTOR HOUSING (UPPER)BALL BEARING, DISTRIBUTOR HOUSING (UPPER)
-
211-54209 NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSINGNUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING
-
323-53539 SLEEVE, ROTOR SHAFTSLEEVE, ROTOR SHAFT
-
4393-3736A79 HOUSING ASSEMBLY, DISTRIBUTOR
SERIAL 00000000-02942990HOUSING ASSEMBLY, DISTRIBUTOR
SERIAL 00000000-02942990 -
4393-3736A79 HOUSING ASSEMBLY, DISTRIBUTOR
SERIAL 03036066-09999999HOUSING ASSEMBLY, DISTRIBUTOR
SERIAL 03036066-09999999 -
553417 GROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASEGROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASE
-
610-62568 SCREW, GROUND STRAP ATTACHING (3/8")SCREW, GROUND STRAP ATTACHING (3/8")
-
722-55262 ELBOW, VENT - DISTRIBUTOR HOUSINGELBOW, VENT - DISTRIBUTOR HOUSING
-
815-55853 SHIM, BALL BEARING TO DISTRIBUTOR HOUSINGSHIM, BALL BEARING TO DISTRIBUTOR HOUSING
-
930-26379 BALL BEARING, DISTRIBUTOR HOUSING (LOWER)BALL BEARING, DISTRIBUTOR HOUSING (LOWER)
-
1015-21148A1 SHIM, BALL BEARING TO SPACERSHIM, BALL BEARING TO SPACER
-
1123-53538 SPACER, ROTOR SHAFTSPACER, ROTOR SHAFT
-
1253-26406 RING, RETAINER - BALL BEARING TO DISTRIBUTOR HOUSINGRING, RETAINER - BALL BEARING TO DISTRIBUTOR HOUSING
-
13393-4248 DISC, ROTOR
SERIAL 00000000-02940020DISC, ROTOR
SERIAL 00000000-02940020 -
14393-4371 ROTOR, DISTRIBUTOR
SERIAL 00000000-02940020ROTOR, DISTRIBUTOR
SERIAL 00000000-02940020 -
13393-4313 DISC, ROTOR
SERIAL 02940021-09999999DISC, ROTOR
SERIAL 02940021-09999999 -
14393-4312 ROTOR, DISTRIBUTOR
SERIAL 02940021-09999999ROTOR, DISTRIBUTOR
SERIAL 02940021-09999999 -
1554-59588 CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
SERIAL 00000000-00294290CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
SERIAL 00000000-00294290 -
1554-59588 CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
SERIAL 03036066-09999999CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
SERIAL 03036066-09999999 -
1610-54281 SCREW, DISTRIBUTOR CAP CLAMP (1 1/4")SCREW, DISTRIBUTOR CAP CLAMP (1 1/4")
-
1711-26768 NUT, DISTRIBUTOR CAP CLAMP SCREWNUT, DISTRIBUTOR CAP CLAMP SCREW
-
1832-8M0108355 HOSE, VENT - DISTRIBUTOR TO ELBOW (11 1/2")HOSE, VENT - DISTRIBUTOR TO ELBOW (11 1/2")
-
1832-8M0108355 HOSE, VENT - DISTRIBUTOR TO ELBOW (13 1/2")HOSE, VENT - DISTRIBUTOR TO ELBOW (13 1/2")
-
1922-31521 ELBOW, VENT HOSE TO BOTTOM COWLELBOW, VENT HOSE TO BOTTOM COWL
-
2084-821945A5 HIGH TENSION CABLE ASSEMBLY, DISTRIBUTOR CAP TO COILHIGH TENSION CABLE ASSEMBLY, DISTRIBUTOR CAP TO COIL
-
2125-26547 GROMMET, HIGH TENSION CABLEGROMMET, HIGH TENSION CABLE
-
22332-2854T01 BOOT, HIGH TENSION CABLE TO COILBOOT, HIGH TENSION CABLE TO COIL
-
2385-94589 SLEEVE, HIGH TENSION CABLESLEEVE, HIGH TENSION CABLE
-
2427-55896 GASKET, DISTRIBUTOR CAPGASKET, DISTRIBUTOR CAP
-
25393-4841A2 DISTRIBUTOR CAP ASSEMBLY
SERIAL 00000000-02942990DISTRIBUTOR CAP ASSEMBLY
SERIAL 00000000-02942990 -
25393-4841A2 DISTRIBUTOR CAP ASSEMBLY
SERIAL 03036066-09999999DISTRIBUTOR CAP ASSEMBLY
SERIAL 03036066-09999999 -
--393-1293A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
2622-31521 ELBOW, VENT - DISTRIBUTOR CAPELBOW, VENT - DISTRIBUTOR CAP
-
2733-97180Q SPARK PLUG (AC-V40FFM)SPARK PLUG (AC-V40FFM)
-
2884-813715A1 SPARK PLUG LEAD ASSEMBLY #1, #2, #3, #4, #5, AND #6
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERSSPARK PLUG LEAD ASSEMBLY #1, #2, #3, #4, #5, AND #6
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS -
--8M0084600 CONNECTOR, SPARK PLUG LEADCONNECTOR, SPARK PLUG LEAD
-
2985-63709A1 PROTECTOR, SPARK PLUG LEADPROTECTOR, SPARK PLUG LEAD
-
3085-94589 SLEEVE, SPARK PLUG LEAD TO DISTRIBUTORSLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR
-
3125-26547 GROMMET, SPARK PLUG LEADSGROMMET, SPARK PLUG LEADS
-
3245409 WIRE RETAINER, HIGH TENSION LEADSWIRE RETAINER, HIGH TENSION LEADS
-
3345392 BRACKET, FRONT - WIRE RETAINERBRACKET, FRONT - WIRE RETAINER
-
3447398 BRACKET, REAR - WIRE RETAINERBRACKET, REAR - WIRE RETAINER
-
3510-62568 SCREW, FRONT AND REAR BRACKET ATTACHINGSCREW, FRONT AND REAR BRACKET ATTACHING
-
3645391 SPACER, RUBBER - HIGH TENSION LEADSSPACER, RUBBER - HIGH TENSION LEADS
-
37332-4895A5 IGNITION COIL ASSEMBLY, COMPLETEIGNITION COIL ASSEMBLY, COMPLETE
-
3810-24624 SCREW, COIL MOUNTING BRACKET (1 3/4")SCREW, COIL MOUNTING BRACKET (1 3/4")
-
3913-26992 LOCKWASHER, COIL MOUNTING BRACKETLOCKWASHER, COIL MOUNTING BRACKET
-
4010-88488 SCREW, COIL MOUNTING BRACKET (3 1/4")SCREW, COIL MOUNTING BRACKET (3 1/4")
-
4123-52933 SPACER, COIL BRACKET TO BOTTOM COWLSPACER, COIL BRACKET TO BOTTOM COWL
-
4211-20184 NUT, COIL MOUNTING BRACKET SCREWNUT, COIL MOUNTING BRACKET SCREW
