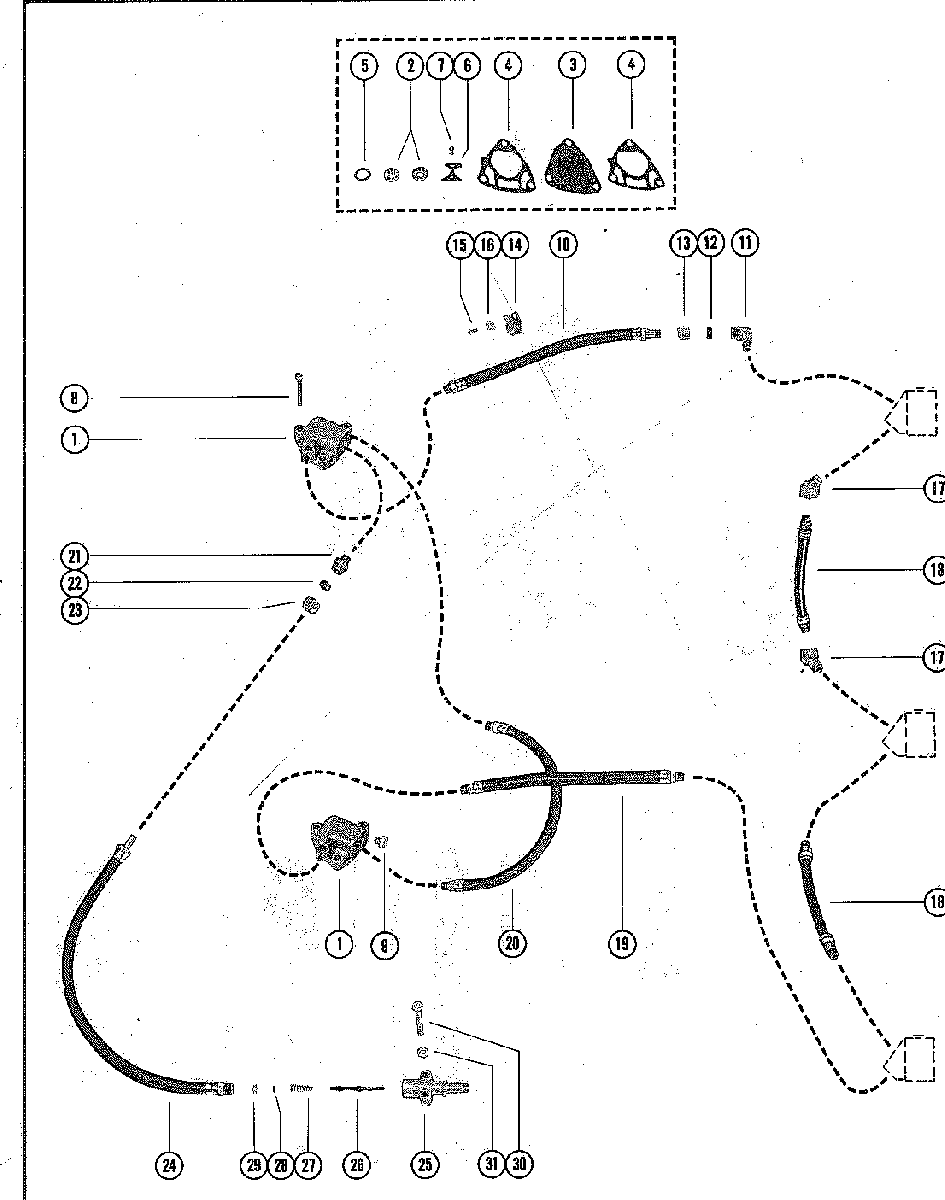

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 1350 2839369 THRU 3293233
-
№АртикулНазвание
-
155156A5 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-30430A3 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
355278A1 DIAPHRAGM KITDIAPHRAGM KIT
-
490-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
590-8M0143356 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
623004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
710-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
810-69067 SCREW, FUEL PUMP MOUNTING (1 3/8")SCREW, FUEL PUMP MOUNTING (1 3/8")
-
922-328022 PLUG, PIPE - BOTTOM PUMPPLUG, PIPE - BOTTOM PUMP
-
1032-33154A1 FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (14 1/8")FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (14 1/8")
-
1122-30174 ELBOW, UPPER CARBURETOR STRAINER COVER (90)ELBOW, UPPER CARBURETOR STRAINER COVER (90)
-
1222-30175 SLEEVE, CARBURETOR STRAINER COVER ELBOWSLEEVE, CARBURETOR STRAINER COVER ELBOW
-
1322-30177 NUT, UPPER CARBURETOR STRAINER COVER ELBOWNUT, UPPER CARBURETOR STRAINER COVER ELBOW
-
1454-22627 CLIP, FUEL LINE TO CYLINDER BLOCKCLIP, FUEL LINE TO CYLINDER BLOCK
-
1510-62568 SCREW, FUEL LINE CLIP TO CYLINDER BLOCK (3/8")SCREW, FUEL LINE CLIP TO CYLINDER BLOCK (3/8")
-
168M0084613 "D" WASHER, FUEL LINE CLIP SCREW"D" WASHER, FUEL LINE CLIP SCREW
-
1722-8M0123050 ELBOW, FUEL LINE TO CARBURETOR (45)ELBOW, FUEL LINE TO CARBURETOR (45)
-
1832-31584A1 FUEL LINE ASSEMBLY, CARBURETOR TO CARBURETORFUEL LINE ASSEMBLY, CARBURETOR TO CARBURETOR
-
1932-52944A1 FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (10")FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (10")
-
2032-55828A1 FUEL LINE ASSEMBLY, PUMP TO PUMP (13 3/4")FUEL LINE ASSEMBLY, PUMP TO PUMP (13 3/4")
-
2122-30468 FITTING, TOP PUMPFITTING, TOP PUMP
-
2222-30175 SLEEVE, TOP PUMP FITTINGSLEEVE, TOP PUMP FITTING
-
2322-30177 NUT, TOP PUMP FITTINGNUT, TOP PUMP FITTING
-
2432-55829 FUEL LINE, ADAPTOR TO LOWER FUEL PUMPFUEL LINE, ADAPTOR TO LOWER FUEL PUMP
-
2530186 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
2630185Q3 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2724-30189 SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
2825-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
2930188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
3010-69029 SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
-
3010-37561 SCREW, ADAPTOR TO BOTTOM COWL (2 1/2")SCREW, ADAPTOR TO BOTTOM COWL (2 1/2")
-
3111-20184 NUT, ADAPTOR FASTENING SCREWNUT, ADAPTOR FASTENING SCREW
