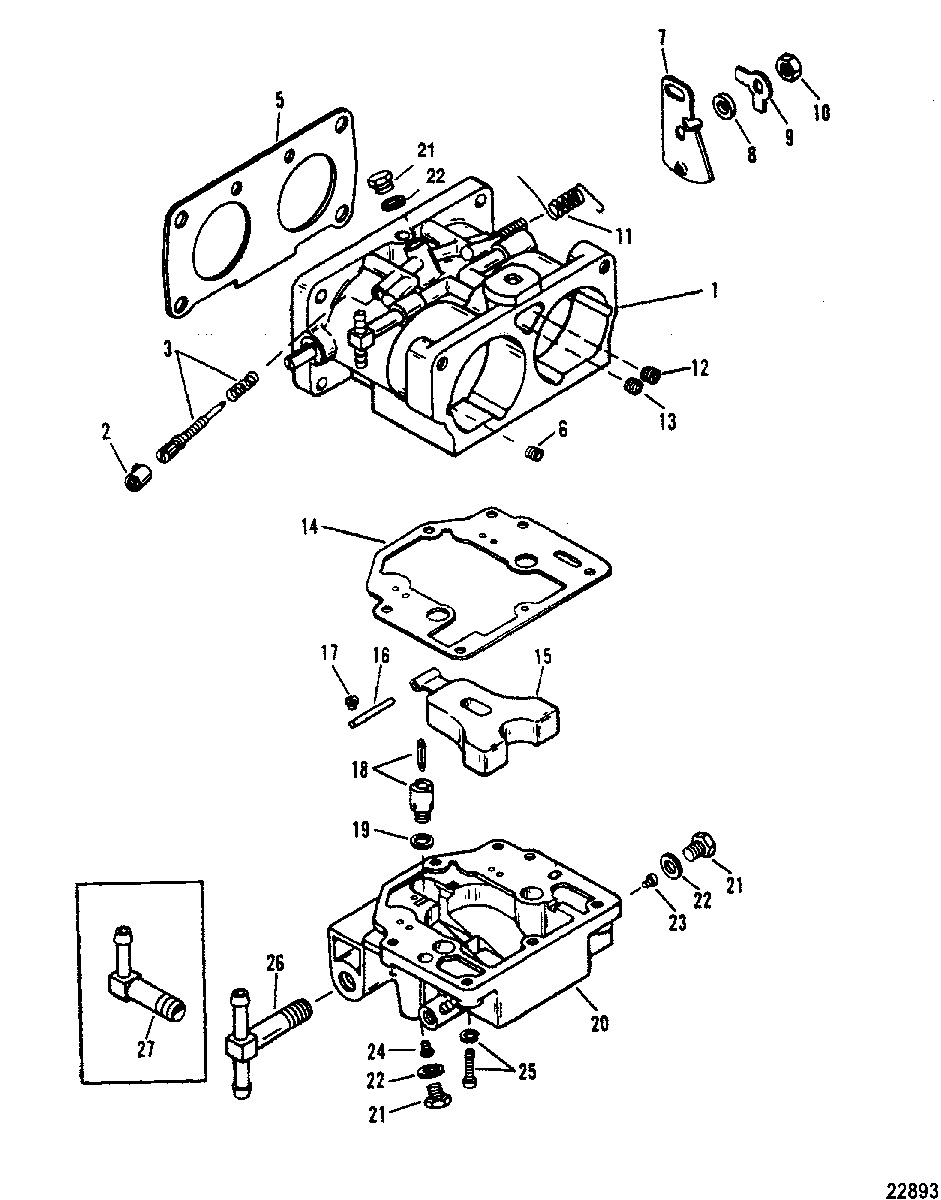

CARBURETOR(WMH-30/31/32/33/34) для Mercury - 140 JET 0D082000 THRU 0G303045
-
№АртикулНазвание
-
13311-818650A28 CARBURETOR, Top
135 - WMH-30CARBURETOR, Top
135 - WMH-30 -
13311-818650A29 CARBURETOR, Center
135 - WMH-30CARBURETOR, Center
135 - WMH-30 -
13311-818650A55 CARBURETOR, Bottom (30A)
135 - WMH-30CARBURETOR, Bottom (30A)
135 - WMH-30 -
13311-818650A31 CARBURETOR, Top
150 - WMH-31CARBURETOR, Top
150 - WMH-31 -
13311-818650A32 CARBURETOR, Center
150 - WMH-31CARBURETOR, Center
150 - WMH-31 -
13311-818650A56 CARBURETOR, Bottom (31A)
150 - WMH-31CARBURETOR, Bottom (31A)
150 - WMH-31 -
13311-818650A34 CARBURETOR, Top
TRACKER/XR6/MAGNUM III-WMH-32CARBURETOR, Top
TRACKER/XR6/MAGNUM III-WMH-32 -
13311-818650A35 CARBURETOR, Center
TRACKER/XR6/MAGNUM III-WMH-32CARBURETOR, Center
TRACKER/XR6/MAGNUM III-WMH-32 -
13311-818650A57 CARBURETOR, Bottom (32A)
TRACKER/XR6/MAGNUM III-WMH-32CARBURETOR, Bottom (32A)
TRACKER/XR6/MAGNUM III-WMH-32 -
13311-818650A37 CARBURETOR, Top
175 - WMH-33CARBURETOR, Top
175 - WMH-33 -
13311-818650A38 CARBURETOR, Center
175 - WMH-33CARBURETOR, Center
175 - WMH-33 -
13311-818650A58 CARBURETOR, Bottom (33A)
175 - WMH-33CARBURETOR, Bottom (33A)
175 - WMH-33 -
13311-818650A52 CARBURETOR, Top
200 - WMH-34CARBURETOR, Top
200 - WMH-34 -
13311-818650A53 CARBURETOR, Center
200 - WMH-34CARBURETOR, Center
200 - WMH-34 -
13311-818650A59 CARBURETOR, Bottom (34A)
200 - WMH-34CARBURETOR, Bottom (34A)
200 - WMH-34 -
2810779 CAPCAP
-
3NSS NOT SOLD SEPARATE, Idle Mixture Screw/SpringNOT SOLD SEPARATE, Idle Mixture Screw/Spring
-
527-677511 GASKETGASKET
-
6815633060 JET, (.060) (.056 - 135)JET, (.060) (.056 - 135)
-
61399-7570 JET, .040 (XR6/MAGNUM III)JET, .040 (XR6/MAGNUM III)
-
6815633050 JET, (.050) (150/175/200)JET, (.050) (150/175/200)
-
7810721 LEVER, Throttle (TOP/CENTER)LEVER, Throttle (TOP/CENTER)
-
7810722 LEVER, Throttle (BOTTOM - WMH-SERIES)LEVER, Throttle (BOTTOM - WMH-SERIES)
-
78107221 LEVER, Throttle (BOTTOM - WMH-A SERIES)LEVER, Throttle (BOTTOM - WMH-A SERIES)
-
81395-811284 SPACERSPACER
-
912-810745 WASHERWASHER
-
1011-810744 NUTNUT
-
11NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
121395-5815 JET, (.086) (150)JET, (.086) (150)
-
121395-6247 JET, Main (.090) (XR6/MAGNUM III)JET, Main (.090) (XR6/MAGNUM III)
-
121399-3517 JET, (.084) (135/175/200)JET, (.084) (135/175/200)
-
131399-5225 JET, Main (.054) (135)JET, Main (.054) (135)
-
131395-6359 JET, (.052) (150)JET, (.052) (150)
-
131395-6246 JET, (.048) (175)JET, (.048) (175)
-
131395-7831 JET, Main Fuel (.058) (XR6/MAGNUM III)JET, Main Fuel (.058) (XR6/MAGNUM III)
-
131399-5317 JET, (.046) (200)JET, (.046) (200)
-
14NSS NOT SOLD SEPARATE, Gasket-Fuel BowlNOT SOLD SEPARATE, Gasket-Fuel Bowl
-
15810738 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
16F10064 SHAFTSHAFT
-
17NSS NOT SOLD SEPARATE, Screw-FloatNOT SOLD SEPARATE, Screw-Float
-
181395-8116901 VALVE SEAT KITVALVE SEAT KIT
-
19NSS NOT SOLD SEPARATE, Gasket-Valve SeatNOT SOLD SEPARATE, Gasket-Valve Seat
-
201395-823623 BOWL, Fuel (TOP)BOWL, Fuel (TOP)
-
201395-823624 BOWL, Fuel (CENTER/BOTTOM)BOWL, Fuel (CENTER/BOTTOM)
-
211395-811694 PLUGPLUG
-
22NSS NOT SOLD SEPARATE, Gasket-Power/Progression JetNOT SOLD SEPARATE, Gasket-Power/Progression Jet
-
231399-4215 JET, Main Fuel (.066) (135)JET, Main Fuel (.066) (135)
-
231399-4217 JET, Main (.062) (150/XR6/MAGNUM III)JET, Main (.062) (150/XR6/MAGNUM III)
-
231399-4216 JET, (.064) (175)JET, (.064) (175)
-
231399-4215 JET, Main Fuel (.066) (200 - TOP)JET, Main Fuel (.066) (200 - TOP)
-
231399-4216 JET, (.064) (200 - CENTER/BOTTOM)JET, (.064) (200 - CENTER/BOTTOM)
-
241395-808584 POWER JETPOWER JET
-
251395-808612 SCREW AND WASHER, (#8-32 x .750)SCREW AND WASHER, (#8-32 x .750)
-
261395-7900 TEE FITTING (TOP/CENTER)TEE FITTING (TOP/CENTER)
-
271395-7901 ELBOW (BOTTOM)ELBOW (BOTTOM)
-
-8107492 GASKET KIT, CarburetorGASKET KIT, Carburetor
-
-1395-8116912 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
