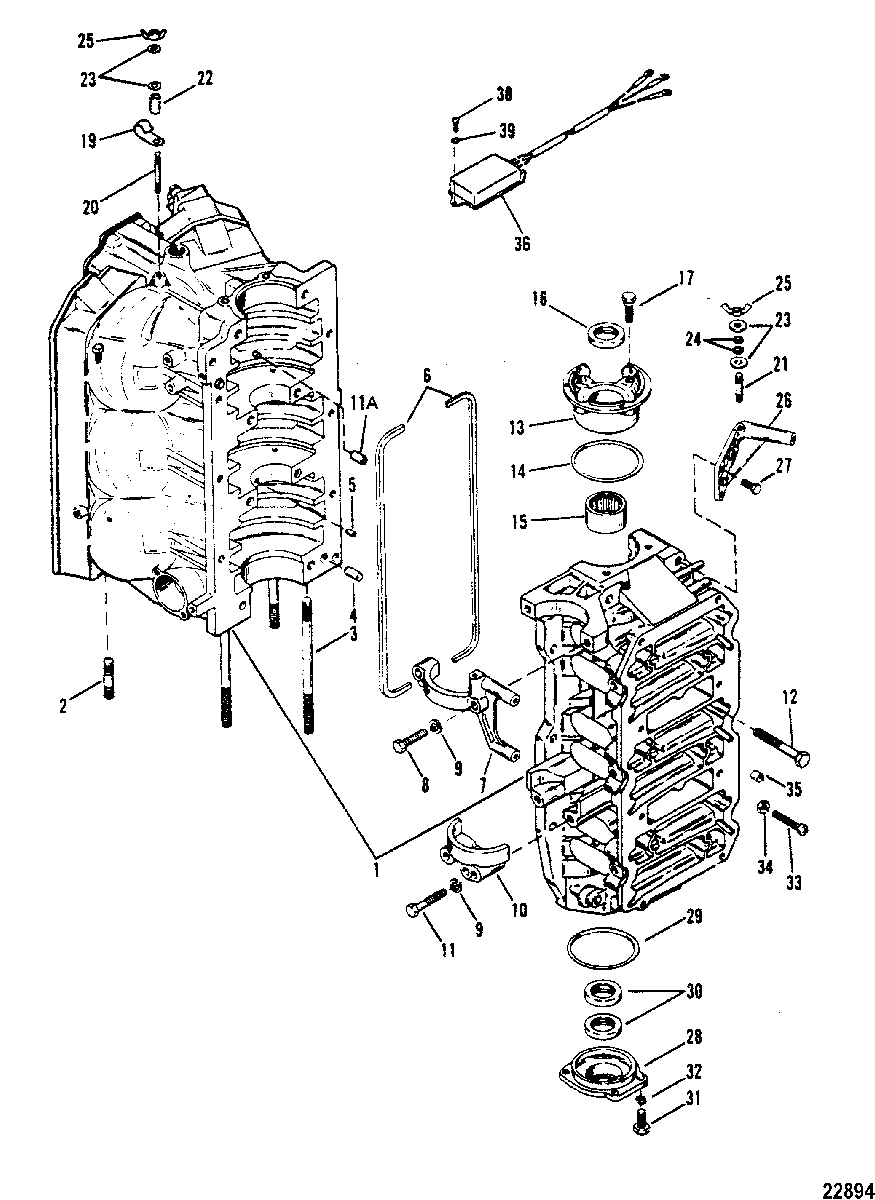

CYLINDER BLOCK AND END CAPS для Mercury - 140 JET 0D082000 THRU 0G303045

№

Артикул

Название
1

884-859211T2 CYLINDER BLOCK (135/150)

CYLINDER BLOCK (135/150)

0 ₽
1

884-9763T17 CYLINDER BLOCK (XR6/Magnum III)
SN# 0D284787 & Below

CYLINDER BLOCK (XR6/Magnum III)
SN# 0D284787 & Below

189 620 ₽
1

884-9763T23 CYLINDER BLOCK (XR6/Magnum III)
SN# 0D284788 & Up

CYLINDER BLOCK (XR6/Magnum III)
SN# 0D284788 & Up

0 ₽
1

884-9763T17 CYLINDER BLOCK (175)

CYLINDER BLOCK (175)

189 620 ₽
1

884-9763T61 CYLINDER BLOCK (200)

CYLINDER BLOCK (200)

206 730 ₽
1

884-9763T23 CYLINDER BLOCK ( 150 TRACKER)

CYLINDER BLOCK ( 150 TRACKER)

0 ₽
2

16-76175 STUD (1-7/8") (OLD DESIGN)

STUD (1-7/8") (OLD DESIGN)

860 ₽
2

16-8M0034455 STUD (1-3/4")

STUD (1-3/4")

830 ₽
3

16-670654 STUD (5-1/2")

STUD (5-1/2")

870 ₽
3

16-8M0034454 STUD (6-3/4")

STUD (6-3/4")

1 130 ₽
4

17-43044 PIN, Dowel - Without Hole (.375 x .625)

PIN, Dowel - Without Hole (.375 x .625)

200 ₽
5

17-8M0036405 PIN (BEARING RACE)

PIN (BEARING RACE)

270 ₽
6

27-11338 GASKET

GASKET

150 ₽
7

8M0088723 COVER (UPPER)

COVER (UPPER)

14 890 ₽
8

10-828213 SCREW, (.312-18 x 1.500) Hex Flange

SCREW, (.312-18 x 1.500) Hex Flange

140 ₽
8

10-73657 SCREW, (.312-18 x 1.50) (Use with 13-26993 washer)

SCREW, (.312-18 x 1.50) (Use with 13-26993 washer)

230 ₽
9

13-26993 LOCKWASHER, (.312) (Use with 10-73657 screw)

LOCKWASHER, (.312) (Use with 10-73657 screw)

140 ₽
10

76867 COVER (LOWER)

COVER (LOWER)

2 450 ₽
11

10-815549 SCREW, (.312-18 x 2.00)

SCREW, (.312-18 x 2.00)

340 ₽
11

10-828214 SCREW, (.312-18 x 2.00) Hex Flange

SCREW, (.312-18 x 2.00) Hex Flange

150 ₽
11A

23-99448 BUSHING

BUSHING

320 ₽
12

10-66717 SCREW, (.375-16 x 3.250)

SCREW, (.375-16 x 3.250)

380 ₽
12

10-74824 SCREW, (.312-18 x 1.250)

SCREW, (.312-18 x 1.250)

140 ₽
13

1159-858521T1 END CAP ASSEMBLY, Upper

END CAP ASSEMBLY, Upper

36 690 ₽
14

25-54029 O-RING, (2.800 x .103)

O-RING, (2.800 x .103)

480 ₽
15

31-16756A4 BEARING KIT

BEARING KIT

8 940 ₽
16

26-41953 SEAL

SEAL

1 140 ₽
17

10-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)

SCREW AND LOCKWASHER, (.312-18 x 1.00)

70 ₽
19

54-63153 J CLIP

J CLIP

70 ₽
20

16-15094 STUD, (.190-32 x 1.870)

STUD, (.190-32 x 1.870)

630 ₽
21

16-8M0034435 STUD, (#10-32 x 1.00)

STUD, (#10-32 x 1.00)

800 ₽
22

23-67269 SPACER

SPACER

380 ₽
23

12-49221 WASHER, (.187 x .500 x .062) Neoprene

WASHER, (.187 x .500 x .062) Neoprene

90 ₽
25

11-816874 WING NUT, (#10-32)

WING NUT, (#10-32)

170 ₽
26

422482 BRACKET

BRACKET

4 640 ₽
27

10-49668 SCREW, (.250-20 x .750)

SCREW, (.250-20 x .750)

100 ₽
28

1156-7809T1 END CAP ASSEMBLY

END CAP ASSEMBLY

25 510 ₽
29

25-62700 O-RING, (3.237 x .103)

O-RING, (3.237 x .103)

400 ₽
30

26-41953 SEAL

SEAL

1 140 ₽
31

10-28636 SCREW, (.250-20 x .750)

SCREW, (.250-20 x .750)

90 ₽
32

13-26992 LOCKWASHER, (.250) Stainless Steel

LOCKWASHER, (.250) Stainless Steel

70 ₽
33

10-64022 SCREW, (.250-20 x 2.125)

SCREW, (.250-20 x 2.125)

270 ₽
34

11-64015 NUT, (.250-20)

NUT, (.250-20)

150 ₽
35

26852 CAP, Nylon

CAP, Nylon

320 ₽
36

87076A10 IDLE SPEED CONTROL

IDLE SPEED CONTROL

32 390 ₽
38

10-690201 SCREW, (#10-32 x .875)

SCREW, (#10-32 x .875)

180 ₽
39

12-38833 WASHER

WASHER

220 ₽
-

27-815791A92 GASKET SET, Engine

GASKET SET, Engine

20 840 ₽
-

812815R97 POWERHEAD ASSEMBLY
(135/150)

POWERHEAD ASSEMBLY
(135/150)

599 020 ₽
-

812817R97 POWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284787 & Below

POWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284787 & Below

665 120 ₽
-

823434R97 POWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284788 & Up

POWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284788 & Up

665 540 ₽
-

823434R97 POWERHEAD ASSEMBLY
(Tracker 150)

POWERHEAD ASSEMBLY
(Tracker 150)

665 540 ₽
-

812817R97 POWERHEAD ASSEMBLY
(175)

POWERHEAD ASSEMBLY
(175)

665 120 ₽
-

813043R97 POWERHEAD ASSEMBLY
(200)

POWERHEAD ASSEMBLY
(200)

831 630 ₽
