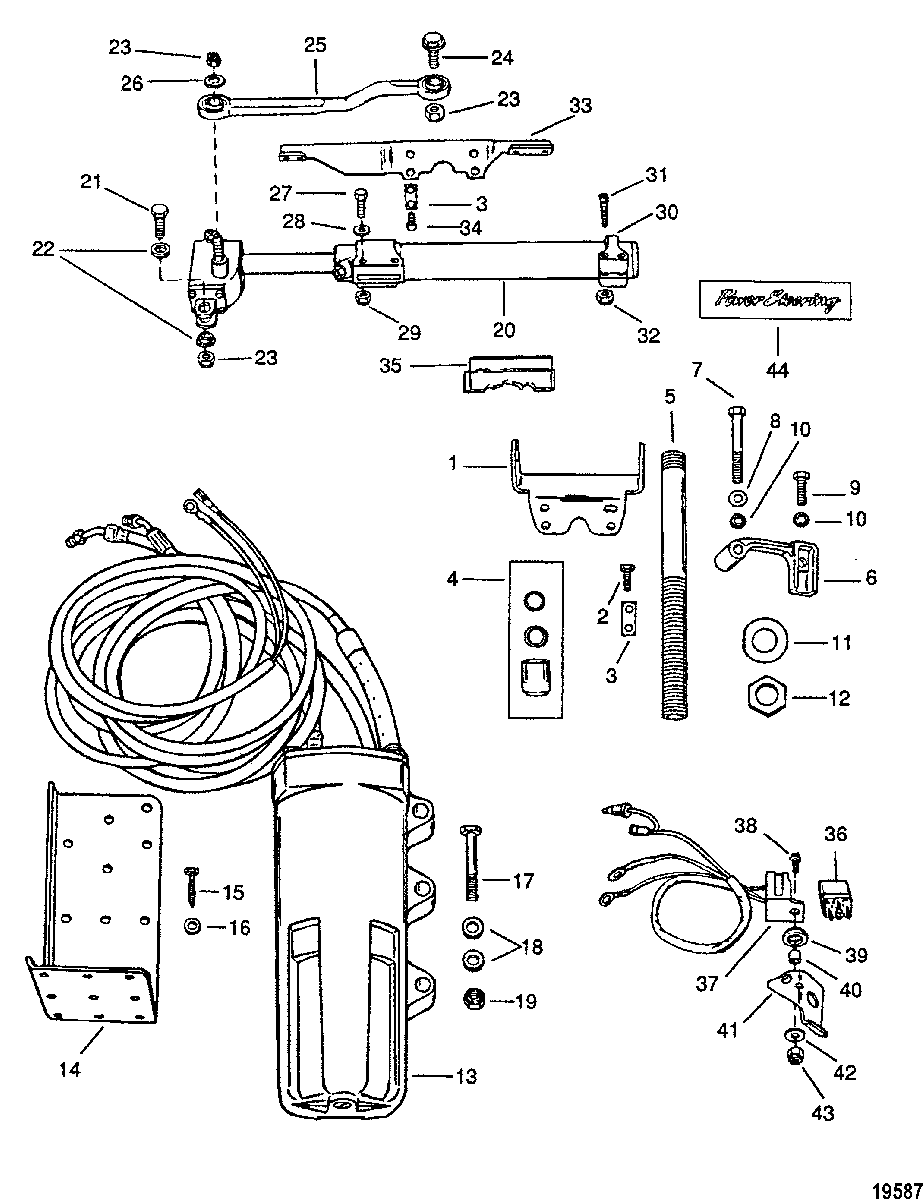

POWER STEERING COMPONENTS(REMOTE) для Mercury - 140 JET 0D082000 THRU 0G303045
-
№АртикулНазвание
-
117771 MOUNTMOUNT
-
210-59702 SCREW, (.250-28 x .875) Stainless SteelSCREW, (.250-28 x .875) Stainless Steel
-
388404 TAB WASHERTAB WASHER
-
419624A1 SEAL KITSEAL KIT
-
571565A2 TUBE ASSEMBLYTUBE ASSEMBLY
-
617776 COUPLINGCOUPLING
-
710-817040 SCREW, (.375-24 x 2.75)SCREW, (.375-24 x 2.75)
-
812-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
910-856722 SCREWSCREW
-
1011-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
1114-42100 TAB WASHERTAB WASHER
-
1211-8M0041651 NUT, (.875-14)NUT, (.875-14)
-
13811290 ACCUMULATOR (See Accumulator for Breakdown)ACCUMULATOR (See Accumulator for Breakdown)
-
14817372 BRACKETBRACKET
-
1510-16862 SCREW, (.250-10 x 1.25)SCREW, (.250-10 x 1.25)
-
1612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1710-4000383 SCREW, (M10 x 70)SCREW, (M10 x 70)
-
1812-4002319 WASHERWASHER
-
1911-40140 NUT, (M10)NUT, (M10)
-
20828588A2 ACTUATORACTUATOR
-
2110-94319 SCREW, (.375-24 x 1.5)SCREW, (.375-24 x 1.5)
-
2223-17405 SPACERSPACER
-
2311-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
2410-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
2592876A4 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
2612-68300 WASHER, (..88 x .39 x .06)WASHER, (..88 x .39 x .06)
-
2710-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2812-4002315 WASHERWASHER
-
2911-401386 NUT, (M6)NUT, (M6)
-
30811292 CLAMPCLAMP
-
3110-818182 SCREWSCREW
-
3211-400263 NUT, (M5)NUT, (M5)
-
33811291 BRACKETBRACKET
-
3410-38601 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
3554-197491 CLAMPCLAMP
-
3687-18211 RELAY SWITCHRELAY SWITCH
-
3784-18244A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
3810-18124 SCREW, (#10-32 x .750)SCREW, (#10-32 x .750)
-
3925-90329 GROMMETGROMMET
-
4023-309772 SPACERSPACER
-
41816994 BRACKETBRACKET
-
4212-42118 WASHERWASHER
-
4311-826709106 NUT, (#10-32)NUT, (#10-32)
-
4437-81563024 DECALDECAL
