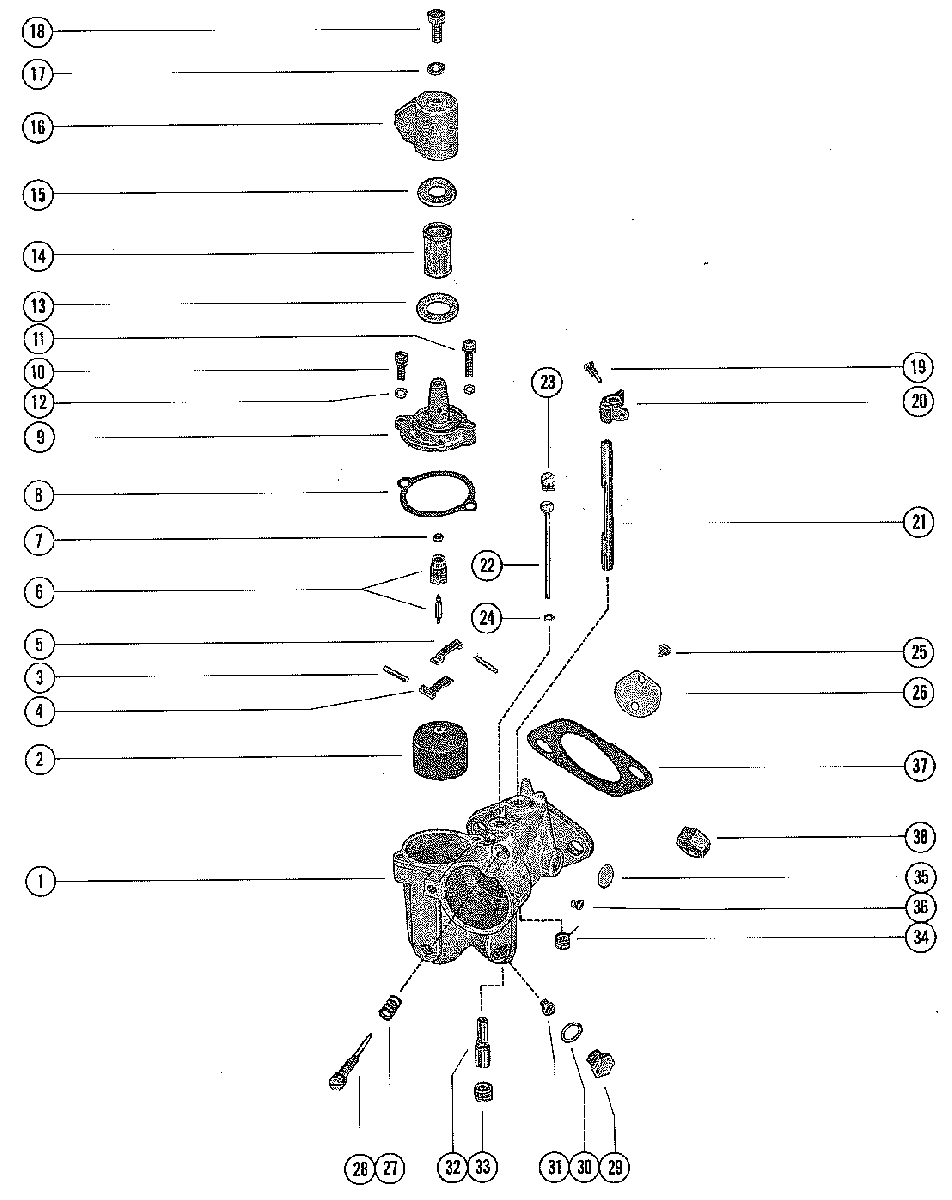

CARBURETOR ASSEMBLY для Mercury - 1400 3293234 THRU 3502805
-
№АртикулНазвание
-
11352-4510A17 CARBURETOR ASSEMBLY (UPPER CARBURETOR)
SERIAL 00000000-03295133CARBURETOR ASSEMBLY (UPPER CARBURETOR)
SERIAL 00000000-03295133 -
11352-4510A16 CARBURETOR ASSEMBLY (CENTER AND LOWER CARBURETOR)
SERIAL 00000000-03295133CARBURETOR ASSEMBLY (CENTER AND LOWER CARBURETOR)
SERIAL 00000000-03295133 -
11352-4510A21 CARBURETOR ASSEMBLY
SERIAL 03295134-09999999CARBURETOR ASSEMBLY
SERIAL 03295134-09999999 -
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
390-8M0143356 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
490-8M0143356 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
590-8M0143356 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-83181 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
790-8M0143356 GASKET, INLET SEATGASKET, INLET SEAT
-
890-8M0143356 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
91399-4559 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
1010-52195 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-52196 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1213-26995 LOCKWASHER, FLOAT BOWL COVER SCREWLOCKWASHER, FLOAT BOWL COVER SCREW
-
1390-8M0143356 GASKET, STRAINER COVER (LARGE)GASKET, STRAINER COVER (LARGE)
-
141399-3938 SCREEN, FILTERSCREEN, FILTER
-
1590-8M0143356 GASKET, STRAINER COVER (SMALL)GASKET, STRAINER COVER (SMALL)
-
161399-4791A1 COVER, STRAINERCOVER, STRAINER
-
1790-8M0143356 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
1810-25822 SCREW, STRAINER COVER FASTENINGSCREW, STRAINER COVER FASTENING
-
191395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
208146791 LEVER, THROTTLE STOP (SEE NOTE BELOW)LEVER, THROTTLE STOP (SEE NOTE BELOW)
-
211395-7942 SHAFT, THROTTLESHAFT, THROTTLE
-
2290-8M0143356 TUBE, IDLETUBE, IDLE
-
231395-4540 SCREW, BODY (IDLE TUBE)SCREW, BODY (IDLE TUBE)
-
2490-8M0143356 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
2590-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
261395-9017 SHUTTER, THROTTLESHUTTER, THROTTLE
-
2790-8M0143356 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
281399-3515 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
291395-4541 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
3090-8M0143356 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
311399-3517 JET, MAIN FUEL (.084) - STANDER (UPPER CARBURETOR)
SERIAL 00000000-03295133JET, MAIN FUEL (.084) - STANDER (UPPER CARBURETOR)
SERIAL 00000000-03295133 -
311399-3518 JET, MAIN FUEL (.082) - STANDARD
CENTER AND LOWER CARBURETOR SERIAL 00000000-03295133JET, MAIN FUEL (.082) - STANDARD
CENTER AND LOWER CARBURETOR SERIAL 00000000-03295133 -
311395-6201 JET,MAIN FUEL (.080) - STANDARD
SERIAL 03295134-09999999JET,MAIN FUEL (.080) - STANDARD
SERIAL 03295134-09999999 -
311399-3520 JET, MAIN FUEL (.0785)JET, MAIN FUEL (.0785)
-
3290-8M0143356 NOZZLE, MAINNOZZLE, MAIN
-
331395-4542 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
3490-8M0143356 SPRING, THROTTLE SHAFT RETURN (CENTER AND LOWER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (CENTER AND LOWER CARBURETOR)
-
3490-8M0143356 SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
-
3590-8M0143356 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
361395-4543 SCREW, BODY CHANNELSCREW, BODY CHANNEL
-
--1395-879194024 GASKET AND PACKING SET (1 PER CARBURETOR)GASKET AND PACKING SET (1 PER CARBURETOR)
-
--1395-4869 REPAIR PARTS KIT (1 PER CARB.) - UPPER CARBURETOR
SERIAL 00000000-03295133REPAIR PARTS KIT (1 PER CARB.) - UPPER CARBURETOR
SERIAL 00000000-03295133 -
--1395-51091 REPAIR PARTS KIT (1 PER CARB.) - CENTER AND LOWER CARBURETOR
SERIAL 00000000-03295133REPAIR PARTS KIT (1 PER CARB.) - CENTER AND LOWER CARBURETOR
SERIAL 00000000-03295133 -
--1395-51091 REPAIR PARTS KIT (1 PER CARB.)
SERIAL 03295134-09999999REPAIR PARTS KIT (1 PER CARB.)
SERIAL 03295134-09999999 -
3727-481641 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3811-29250 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
