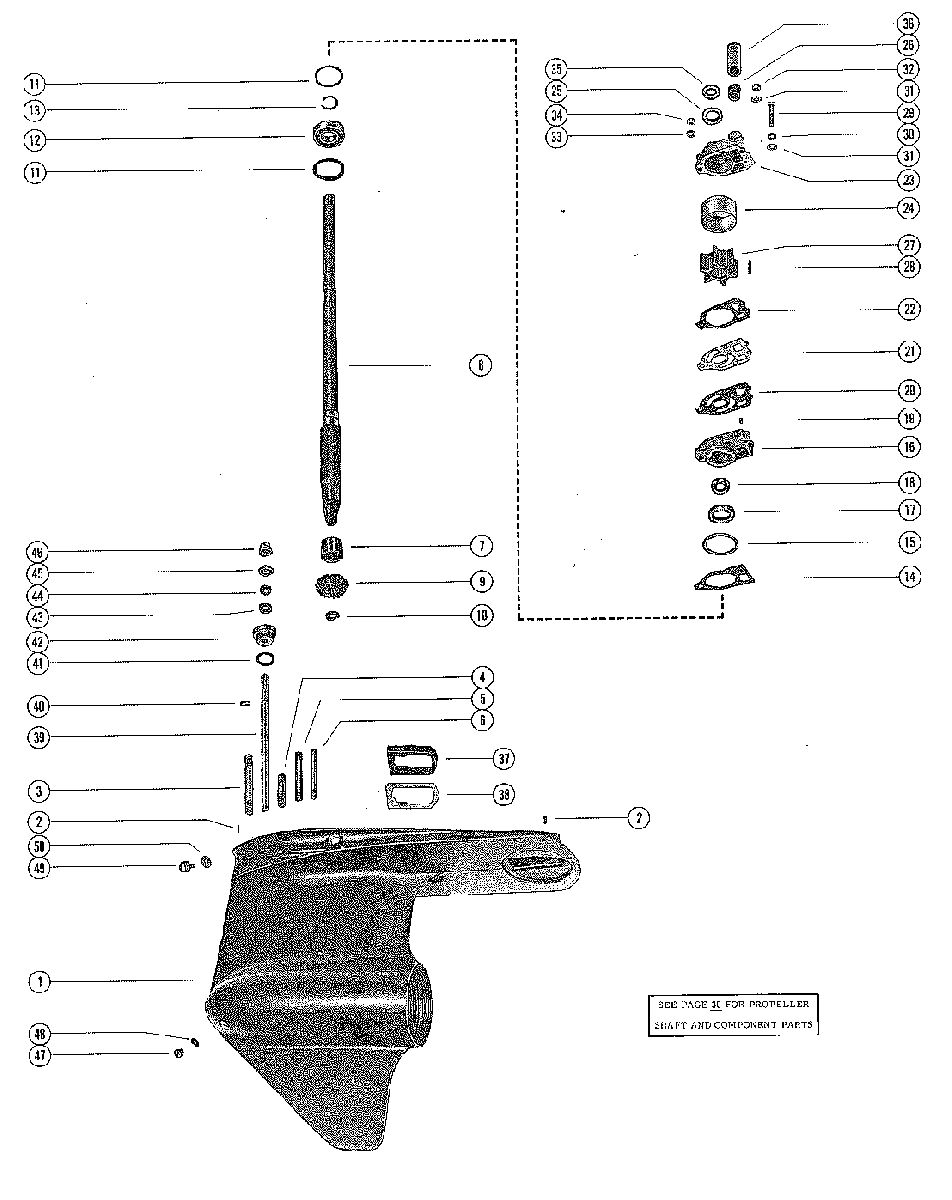

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 1400 3293234 THRU 3502805
-
№АртикулНазвание
-
-1623-7339A3 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE BELOW.GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE BELOW. -
-1655-7333T24 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE BELOW
-
11623-5244A6 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
217-21438 DOWEL PIN, GEAR HOUSING LOCATINGDOWEL PIN, GEAR HOUSING LOCATING
-
316-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING ("4)STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING ("4)
-
416-8M0133358 STUD, GEARHOUSING TO DRIVE SHAFT HOUSING (2 1/16")STUD, GEARHOUSING TO DRIVE SHAFT HOUSING (2 1/16")
-
516-8M0034463 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
-
616-306671 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")
-
731-32898T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
845-64388 DRIVE SHAFT (SHORT SHAFT)DRIVE SHAFT (SHORT SHAFT)
-
845-64389 DRIVE SHAFT (LONG SHAFT)DRIVE SHAFT (LONG SHAFT)
-
943-68548T3 GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
Производитель Mercury-Mercruiser -
1011-35921 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1115-30278A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING(.002-3-5-10)SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING(.002-3-5-10)
-
1115-30278A1 SHIM, WATER PUMP BASE TO GEAR HOUSING (.002-3-5-10)SHIM, WATER PUMP BASE TO GEAR HOUSING (.002-3-5-10)
-
1230-63326T BEARING, BALL - DRIVE SHAFTBEARING, BALL - DRIVE SHAFT
-
1353-30726 RING, RETAINING - BALL BEARINGRING, RETAINING - BALL BEARING
-
1427-32438 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
1525-30224 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
1646-48747A1 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1726-94038 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1826-16977 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1917-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODYDOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
-
2027-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATEGASKET, LOWER - WATER PUMP BASE TO FACE PLATE
-
21324351 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
-
2227-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODYGASKET, UPPER - FACE PLATE TO WATER PUMP BODY
-
2346-96148T1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2448752T INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2526-16977 OIL SEAL, WATER PUMP BODYOIL SEAL, WATER PUMP BODY
-
2626-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
2747-89984T4 IMPELLER - WATER PUMPIMPELLER - WATER PUMP
-
2828-8M0032834 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
2910-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")
-
3013-26992 LOCKWASHER, WATER PUMP BODY SCREWLOCKWASHER, WATER PUMP BODY SCREW
-
3112-29245 WASHER, WATER PUMP BODY FASTENING SCREW AND STUDWASHER, WATER PUMP BODY FASTENING SCREW AND STUD
-
3211-826709109 NUT, WATER PUMP FASTENING SCREWNUT, WATER PUMP FASTENING SCREW
-
3312-36001 WASHER, WATER PUMP BODY FASTENING STUDWASHER, WATER PUMP BODY FASTENING STUD
-
3411-826709111 NUT, WATER PUMP BODY FASTENING STUDNUT, WATER PUMP BODY FASTENING STUD
-
3525-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
-
3623-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
3760909 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
3860910 PLATE, SUPPORT - EXHAUST TUBE SEALPLATE, SUPPORT - EXHAUST TUBE SEAL
-
3976062A1 SHAFT ASSEMBLY, SHIFT - LOWERSHAFT ASSEMBLY, SHIFT - LOWER
-
4053-29641 "E" RING, RETAINING - SHIFT SHAFT"E" RING, RETAINING - SHIFT SHAFT
-
4125-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
4223-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4326-24590 OIL SEAL, SHIFT SHAFT HOUSING (LOWER)OIL SEAL, SHIFT SHAFT HOUSING (LOWER)
-
4326-892361 OIL SEAL, SHIFT SHAFT BUSHING (UPPER)OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
-
4412-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4578036 SPACER, LOWER - REVERSE LOCKING
NOT USED WITH FULL POWER TRIMSPACER, LOWER - REVERSE LOCKING
NOT USED WITH FULL POWER TRIM -
4643308T1 CAM, REVERSE LOCKING -NOT USED WITH FULL POWER TRIMCAM, REVERSE LOCKING -NOT USED WITH FULL POWER TRIM
-
4710-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
4812-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
-
4919-48750 PLUG, GEAR HOUSING FLUSHING HOLEPLUG, GEAR HOUSING FLUSHING HOLE
-
5012-49221 WASHER, GEAR HOUSING FLUSHING HOLE PLUGWASHER, GEAR HOUSING FLUSHING HOLE PLUG
