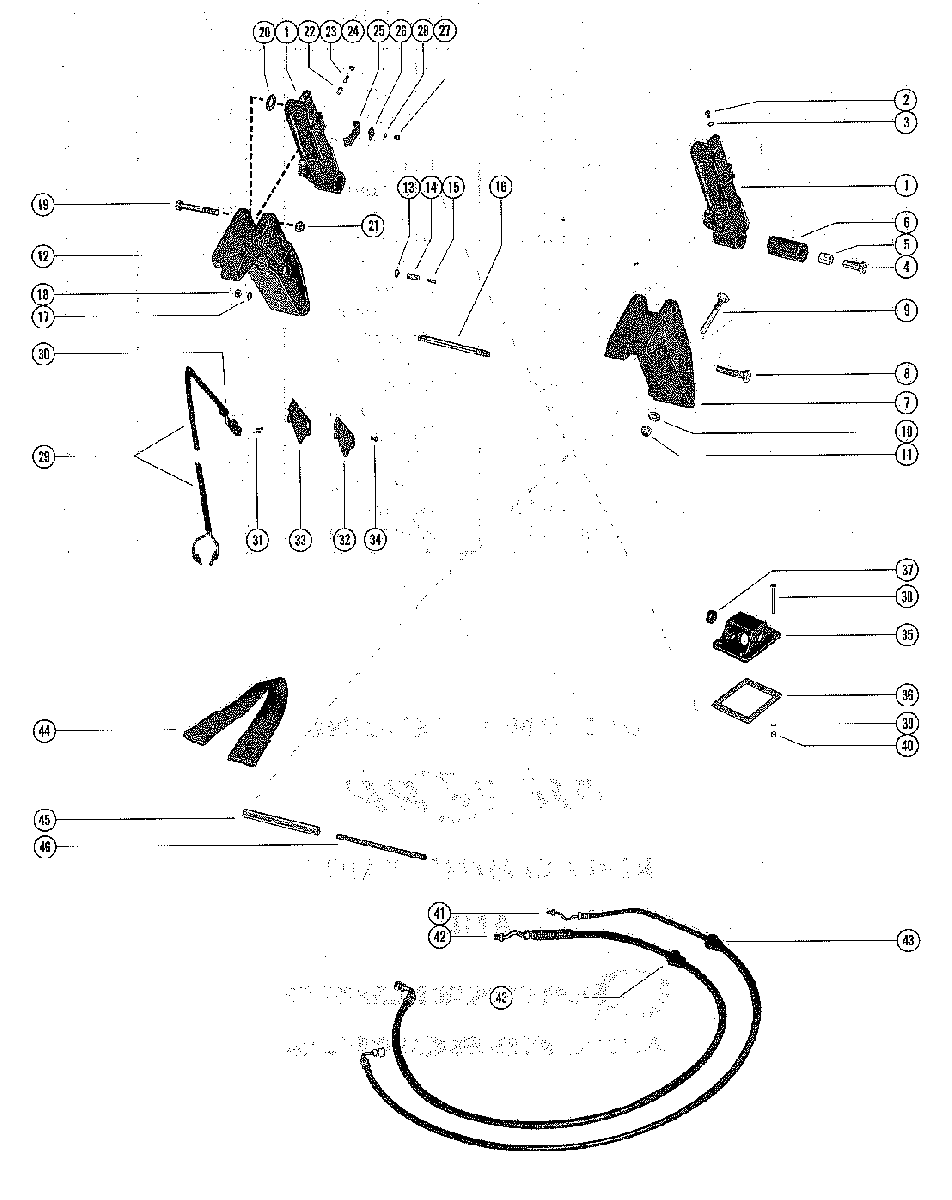

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercury - 1400 3293234 THRU 3502805
-
№АртикулНазвание
-
145194A9 TRIM CYLINDER ASSEMBLYTRIM CYLINDER ASSEMBLY
-
210-45265 SCREW, BLEED - SHOCK CYLINDERSCREW, BLEED - SHOCK CYLINDER
-
325-45016 "O" RING, SHOCK CYLINDER BLEED SCREW"O" RING, SHOCK CYLINDER BLEED SCREW
-
410-45264 SCREW, SHOCK CYLINDER TO LOWER SHOCK PIN (1 9/16")SCREW, SHOCK CYLINDER TO LOWER SHOCK PIN (1 9/16")
-
523-45280 SPACER, SHOCK CYLINDER - LOWERSPACER, SHOCK CYLINDER - LOWER
-
623-94907A1 BUSHING, RUBBER - SHOCK CYLINDERBUSHING, RUBBER - SHOCK CYLINDER
-
789108A3 BRACKET, MOUNTING - SHOCK CYLINDER (PORT)BRACKET, MOUNTING - SHOCK CYLINDER (PORT)
-
810-45263 SCREW, MOUNTING BRACKET TO UPPER SHOCK PIN (2 1/4")SCREW, MOUNTING BRACKET TO UPPER SHOCK PIN (2 1/4")
-
910-68298 BOLT, MOUNTING BRACKET TO BOAT TRANSOM (3 1/4")BOLT, MOUNTING BRACKET TO BOAT TRANSOM (3 1/4")
-
1012-46765 WASHER, MOUNTING BRACKET BOLTWASHER, MOUNTING BRACKET BOLT
-
1111-82670912 NUT, MOUNTING BRACKET BOLTNUT, MOUNTING BRACKET BOLT
-
1289807A1 BRACKET ASSEMBLY, MOUNTING - SHOCK CYLINDER (STARBOARD)BRACKET ASSEMBLY, MOUNTING - SHOCK CYLINDER (STARBOARD)
-
1326-24590 OIL SEAL, STARBOARD MOUNTING BRACKETOIL SEAL, STARBOARD MOUNTING BRACKET
-
1489290 PLUNGER, LIMIT SWITCH ACTUATINGPLUNGER, LIMIT SWITCH ACTUATING
-
1524-95881 SPRING, TENSION - LIMIT SWITCH PLUNGERSPRING, TENSION - LIMIT SWITCH PLUNGER
-
1616-45282 STUD, MOUNTING BRACKET AND CLAMP BRACKETSTUD, MOUNTING BRACKET AND CLAMP BRACKET
-
1713-26993 LOCKWASHER, MOUNTING BRACKET TO CLAMP BRACKET STUDLOCKWASHER, MOUNTING BRACKET TO CLAMP BRACKET STUD
-
1811-28770 NUT, MOUNTING BRACKET TO CLAMP BRACKET STUDNUT, MOUNTING BRACKET TO CLAMP BRACKET STUD
-
1910-45328 SCREW, SHOCK CYLINDER TO MOUNTING BRACKET (3 9/16")SCREW, SHOCK CYLINDER TO MOUNTING BRACKET (3 9/16")
-
2012-37807 WASHER, SHOCK CYLINDER SCREW (STARBOARD ONLY)WASHER, SHOCK CYLINDER SCREW (STARBOARD ONLY)
-
2111-20696 NUT, SHOCK CYLINDER SCREWNUT, SHOCK CYLINDER SCREW
-
2224-24390 SPRING, TENSION - ADJUSTING STUDSPRING, TENSION - ADJUSTING STUD
-
2316-8M0034461 STUD, ADJUSTING - CUT-OUT LIMIT SWITCHSTUD, ADJUSTING - CUT-OUT LIMIT SWITCH
-
2411-826709106 NUT, JAM - LIMIT SWITCH ADJUSTING STUDNUT, JAM - LIMIT SWITCH ADJUSTING STUD
-
2599897 CAM, LIMIT SWITCH ADJUSTING STUDCAM, LIMIT SWITCH ADJUSTING STUD
-
2686967 PLATE, RETAINING - LIMIT SWITCH CAMPLATE, RETAINING - LIMIT SWITCH CAM
-
2710-31903 SCREW, RETAINING PLATE AND CAM TO SHOCK CYLINDERSCREW, RETAINING PLATE AND CAM TO SHOCK CYLINDER
-
2813-26996 LOCKWASHER, RETAINING PLATE AND CAM SCREWLOCKWASHER, RETAINING PLATE AND CAM SCREW
-
2945326A2 SWITCH ASSEMBLY, CUT-OUT LIMITSWITCH ASSEMBLY, CUT-OUT LIMIT
-
3023-45354 BUSHING, RUBBER - CUT-OUT LIMIT SWITCHBUSHING, RUBBER - CUT-OUT LIMIT SWITCH
-
3110-47255 SCREW, CUT-OUT LIMIT SWITCH TO MOUNTING BRACKET (9/16")SCREW, CUT-OUT LIMIT SWITCH TO MOUNTING BRACKET (9/16")
-
3245287 COVER, LIMIT SWITCHCOVER, LIMIT SWITCH
-
3327-45275 GASKET, LIMIT SWITCH COVERGASKET, LIMIT SWITCH COVER
-
3410-24942 SCREW, LIMIT SWITCH COVER TO MOUNTING BRACKET (7/16")SCREW, LIMIT SWITCH COVER TO MOUNTING BRACKET (7/16")
-
3587774A1 COVER, INLET - TRANSOMCOVER, INLET - TRANSOM
-
3627-45274 GASKET, INLET COVERGASKET, INLET COVER
-
3725-45507 GROMMET, RUBBER - INLET COVERGROMMET, RUBBER - INLET COVER
-
3810-32866 SCREW, INLET COVER TO BOAT (2")SCREW, INLET COVER TO BOAT (2")
-
3912-20878 WASHER, INLET COVER SCREWWASHER, INLET COVER SCREW
-
4011-826709106 NUT, INLET COVER SCREWNUT, INLET COVER SCREW
-
4132-88005 HOSE
TRIM - CYLINDER TO CONTROL VALVE (5') - 13/32" O.D.HOSE
TRIM - CYLINDER TO CONTROL VALVE (5') - 13/32" O.D. -
4232-88006 HOSE, LIFT - CYLINDER TO CONTROL VALVE (5') - 17/32" O.D. (#32-88006)HOSE, LIFT - CYLINDER TO CONTROL VALVE (5') - 17/32" O.D. (#32-88006)
-
4323-35977 GROMMET, RUBBER - LIFT HOSE AND TRIM HOSEGROMMET, RUBBER - LIFT HOSE AND TRIM HOSE
-
4473519A1 TILT STOPTILT STOP
-
4563441 TUBE, MOUNTING - TILT STOPTUBE, MOUNTING - TILT STOP
-
4617-63442 PIN, MOUNTING TUBEPIN, MOUNTING TUBE
