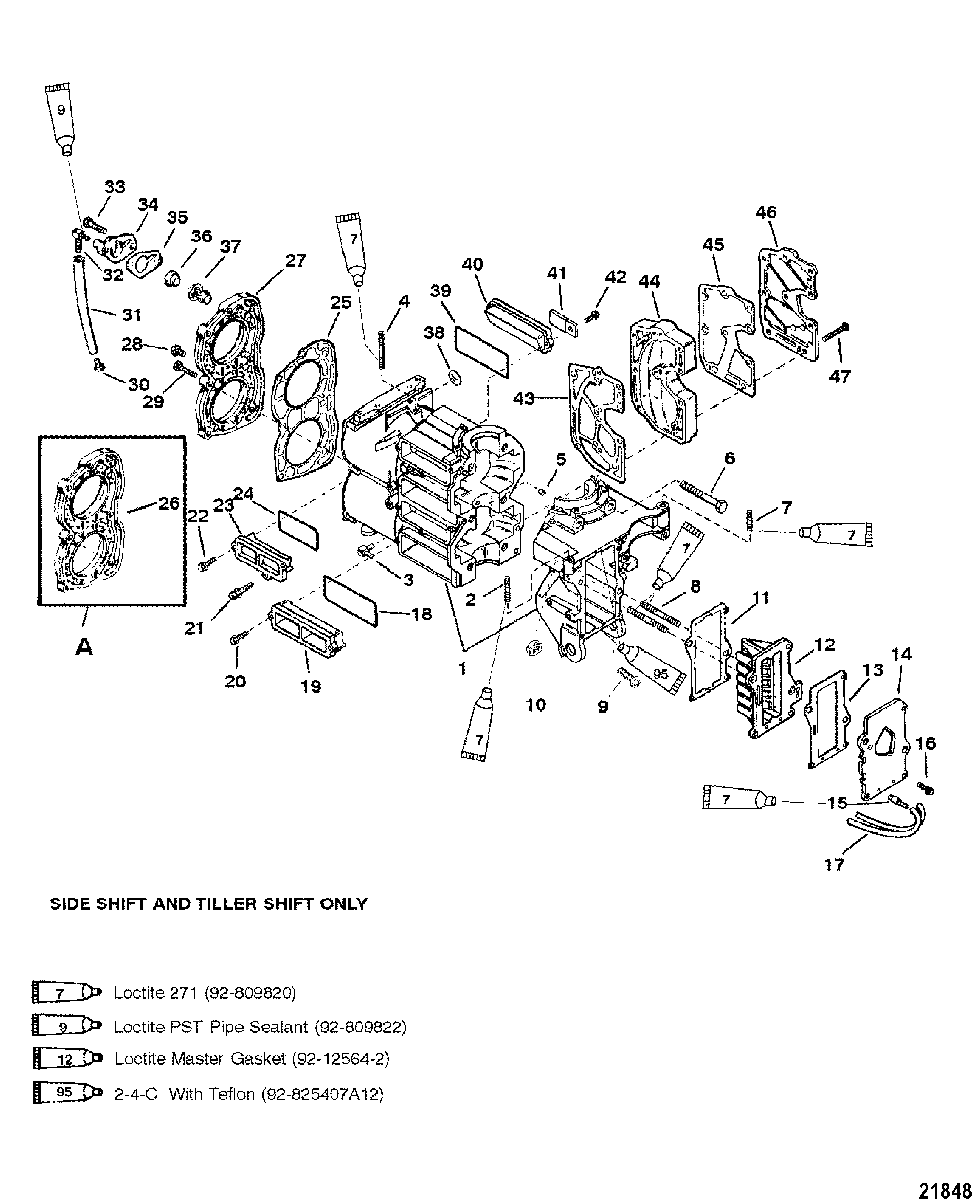

Cylinder Block and Covers для Mercury - 20 JET 9807909 THRU 0P016999
-
№АртикулНазвание
-
1872-9533T40 CYLINDER BLOCKCYLINDER BLOCK
-
216-8161945 STUD, (M6 x 32)STUD, (M6 x 32)
-
322-15133 FITTING (45 Degree)FITTING (45 Degree)
-
416-8M0034424 STUD, (M6 x 50) (COMMERCIAL)STUD, (M6 x 50) (COMMERCIAL)
-
517-85171 PIN, DowelPIN, Dowel
-
610-40001209 SCREW, (M10 x 60)SCREW, (M10 x 60)
-
716-8161945 STUD, (M6 x 32)STUD, (M6 x 32)
-
816-429173 STUDSTUD
-
910-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
1011-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
1127-414172 GASKETGASKET
-
1214112T REED BLOCKREED BLOCK
-
1327-414181 GASKETGASKET
-
1441420A3 PLATE ASSEMBLY, Carb AdaptorPLATE ASSEMBLY, Carb Adaptor
-
1521-889781 CHECK VALVECHECK VALVE
-
1610-40011108 SCREW, (M5 x 20) Stainless SteelSCREW, (M5 x 20) Stainless Steel
-
1732-892024122 TUBING, (20.00 Feet Bulk) (Cut to 13.25 Inches)TUBING, (20.00 Feet Bulk) (Cut to 13.25 Inches)
-
1825-822370 O-RING, (2.362 x .103)O-RING, (2.362 x .103)
-
1914408 COVERCOVER
-
2010-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
218235695 BALL, ThreadedBALL, Threaded
-
2210-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
2314406 COVERCOVER
-
2425-86391 O-RINGO-RING
-
2527-863895 GASKETGASKET
-
26NSS NOT SOLD SEPARATE, Cover CastingNOT SOLD SEPARATE, Cover Casting
-
271028-8282A1 COVER ASSEMBLYCOVER ASSEMBLY
-
2822-390721 PLUG, (1/8 Inch Brass) (BRASS)PLUG, (1/8 Inch Brass) (BRASS)
-
2910-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
3022-94848 FITTINGFITTING
-
3132-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 8 Inches)HOSE, (57.00 Inches Bulk) (Cut to 8 Inches)
-
3222-996642 ELBOWELBOW
-
3310-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
34143171 COVERCOVER
-
3527-14318005 GASKETGASKET
-
3627-62386001 GASKETGASKET
-
3714586 THERMOSTATTHERMOSTAT
-
38NSS NOT SOLD SEPARATE, Plug-Serial NumberNOT SOLD SEPARATE, Plug-Serial Number
-
3925-822370 O-RING, (2.362 x .103)O-RING, (2.362 x .103)
-
40144071 COVERCOVER
-
4154-825404 STRAPSTRAP
-
4210-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
4327-892158 GASKET, Exhaust ManifoldGASKET, Exhaust Manifold
-
4492329F03 MANIFOLD, ExhaustMANIFOLD, Exhaust
-
4527-892157 GASKET, Exhaust Manifold CoverGASKET, Exhaust Manifold Cover
-
46923301 COVERCOVER
-
4710-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
-27-41499A88 GASKET SETGASKET SET
-
-804946T01 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
