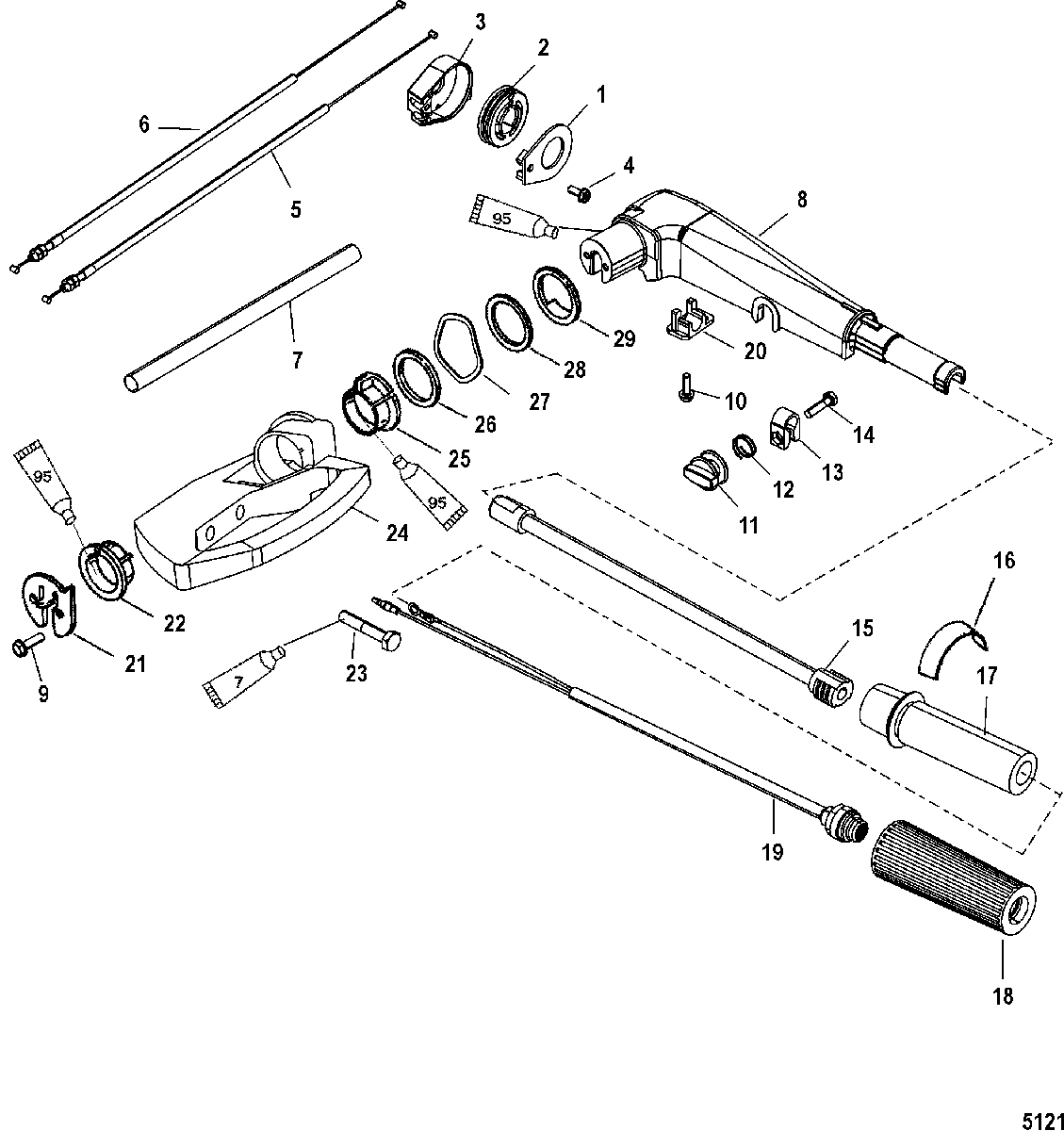

Tiller Handle Assembly для Mercury - 20 JET 9807909 THRU 0P016999
-
№АртикулНазвание
-
-821468T4 TILLER HANDLE
(BLACK) TILLER HANDLE SHIFTTILLER HANDLE
(BLACK) TILLER HANDLE SHIFT -
-821468T4 TILLER HANDLE
(GRAY) TILLER HANDLE SHIFTTILLER HANDLE
(GRAY) TILLER HANDLE SHIFT -
-821468T2 TILLER HANDLE
(BLACK) SIDE SHIFTTILLER HANDLE
(BLACK) SIDE SHIFT -
-821468T3 TILLER HANDLE
(GRAY) SIDE SHIFTTILLER HANDLE
(GRAY) SIDE SHIFT -
1822148A4 COVER KIT
(TILLER HANDLE SHIFT)COVER KIT
(TILLER HANDLE SHIFT) -
1822148A2 COVER KIT
(SIDE SHIFT)COVER KIT
(SIDE SHIFT) -
2822150 PULLEYPULLEY
-
3NSS NOT SOLD SEPARATE, CaseNOT SOLD SEPARATE, Case
-
410-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
543242T03 CABLE, Throttle
(TILLER HANDLE SHIFT)CABLE, Throttle
(TILLER HANDLE SHIFT) -
5432426 CABLE, Throttle
(SIDE SHIFT)CABLE, Throttle
(SIDE SHIFT) -
643242T03 CABLE, Throttle
(TILLER HANDLE SHIFT)CABLE, Throttle
(TILLER HANDLE SHIFT) -
6432426 CABLE, Throttle
(SIDE SHIFT)CABLE, Throttle
(SIDE SHIFT) -
785-960099 SLEEVE, (12.00 Inches)SLEEVE, (12.00 Inches)
-
8821468A66 ARM ASSEMBLY, Steering Handle
(BLACK)ARM ASSEMBLY, Steering Handle
(BLACK) -
8821468A66 ARM ASSEMBLY, Steering Handle
(GRAY)ARM ASSEMBLY, Steering Handle
(GRAY) -
910-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
910-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1010-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
11821972T KNOB, ThrottleKNOB, Throttle
-
1224-96203 SPRINGSPRING
-
13892995 LOCK, ThrottleLOCK, Throttle
-
1410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
15821463T01 TILLER TUBETILLER TUBE
-
1637-8242002 DECAL
(TILLER HANDLE SHIFT)DECAL
(TILLER HANDLE SHIFT) -
1637-8242004 DECAL
(SIDE SHIFT)DECAL
(SIDE SHIFT) -
17822429 HANDLE, Throttle
(TILLER HANDLE SHIFT)HANDLE, Throttle
(TILLER HANDLE SHIFT) -
17821465 HANDLE, Throttle
(SIDE SHIFT)HANDLE, Throttle
(SIDE SHIFT) -
1899589003 GRIPGRIP
-
1987-8M0104615 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
20822441 RETAINERRETAINER
-
21822147 PLATE, Tiller Handle
(USE WITH 6MM SCREW REF. #9)PLATE, Tiller Handle
(USE WITH 6MM SCREW REF. #9) -
218221471 PLATE
(USE WITH 5MM SCREW REF. #9)PLATE
(USE WITH 5MM SCREW REF. #9) -
2223-823939 BUSHINGBUSHING
-
2310-4000384 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
24822841F1 BRACKET (BLACK)BRACKET (BLACK)
-
24822841F1 BRACKET (GRAY)BRACKET (GRAY)
-
2523-823939 BUSHINGBUSHING
-
2612-822145 WASHERWASHER
-
2713-826792 WAVE WASHERWAVE WASHER
-
2812-822145 WASHERWASHER
-
2912-822146 WASHERWASHER
