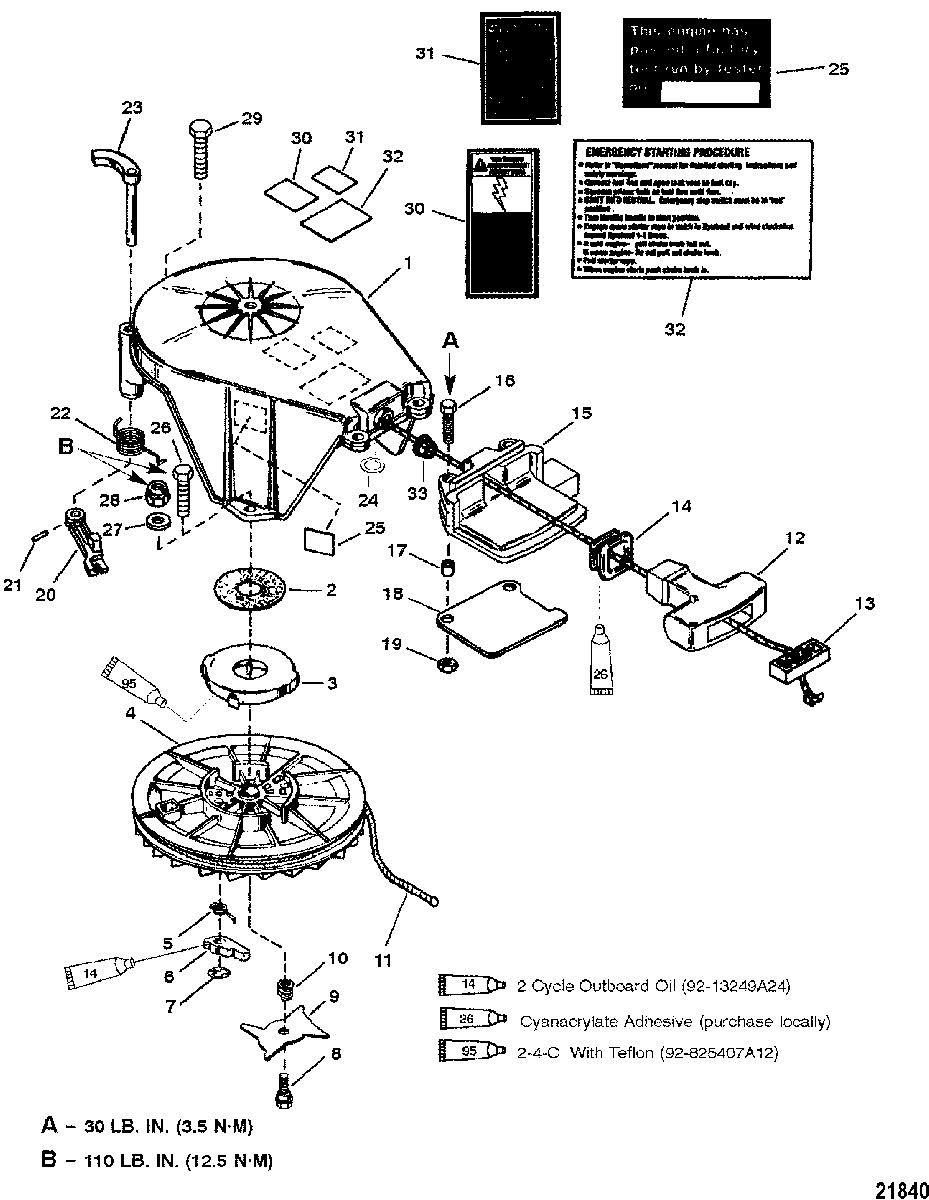

Starter Assembly(Manual) для Mercury - 20 JET 9807909 THRU 0P016999
-
№АртикулНазвание
-
-90906A23 STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
186689A5 HOUSING ASSEMBLY, StarterHOUSING ASSEMBLY, Starter
-
2833161T PADPAD
-
324-86857T01 SPRINGSPRING
-
450-825269T01 SHEAVE, StarterSHEAVE, Starter
-
524-86851T02 SPRINGSPRING
-
6868501 CAMCAM
-
753-86849T01 RING, RetainingRING, Retaining
-
810-826253 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
986853T01 CAMCAM
-
1024-868523 SPRING, CamSPRING, Cam
-
1150-12066Q10 ROPEROPE
-
1285174A1 HANDLE ASSEMBLYHANDLE ASSEMBLY
-
13NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
1444180 BUSHING, RopeBUSHING, Rope
-
15426264 SUPPORTSUPPORT
-
1610-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
1723-309772 SPACERSPACER
-
18856154T01 SUPPORTSUPPORT
-
1911-401385 NUT, (M5)NUT, (M5)
-
2093876T02 LEVER (LOWER)LEVER (LOWER)
-
2117-38489 PIN, RollPIN, Roll
-
2224-823778 SPRING, Upper Lock LeverSPRING, Upper Lock Lever
-
23858925 LEVER (UPPER)LEVER (UPPER)
-
2453-818853 RING, RetainingRING, Retaining
-
25NSS NOT SOLD SEPARATE, Decal-Engine TestNOT SOLD SEPARATE, Decal-Engine Test
-
2610-8M4503518 SCREW, (M6 x 20) Stainless Steel
(Non-Commercial Engines)SCREW, (M6 x 20) Stainless Steel
(Non-Commercial Engines) -
2712-69056 WASHER, (.255 x .620 x .030) Stainless Steel
(Commercial Engines)WASHER, (.255 x .620 x .030) Stainless Steel
(Commercial Engines) -
2811-401386 NUT, (M6)
(Commercial Engines)NUT, (M6)
(Commercial Engines) -
2910-40011131 SCREW, (M6 x 35) Stainless SteelSCREW, (M6 x 35) Stainless Steel
-
30NSS NOT SOLD SEPARATE, Decal-High VoltageNOT SOLD SEPARATE, Decal-High Voltage
-
31NSS NOT SOLD SEPARATE, Decal-Servicing ReferralNOT SOLD SEPARATE, Decal-Servicing Referral
-
32NSS NOT SOLD SEPARATE, Decal-Emergency Start ProceduresNOT SOLD SEPARATE, Decal-Emergency Start Procedures
-
3342690 BUSHINGBUSHING
