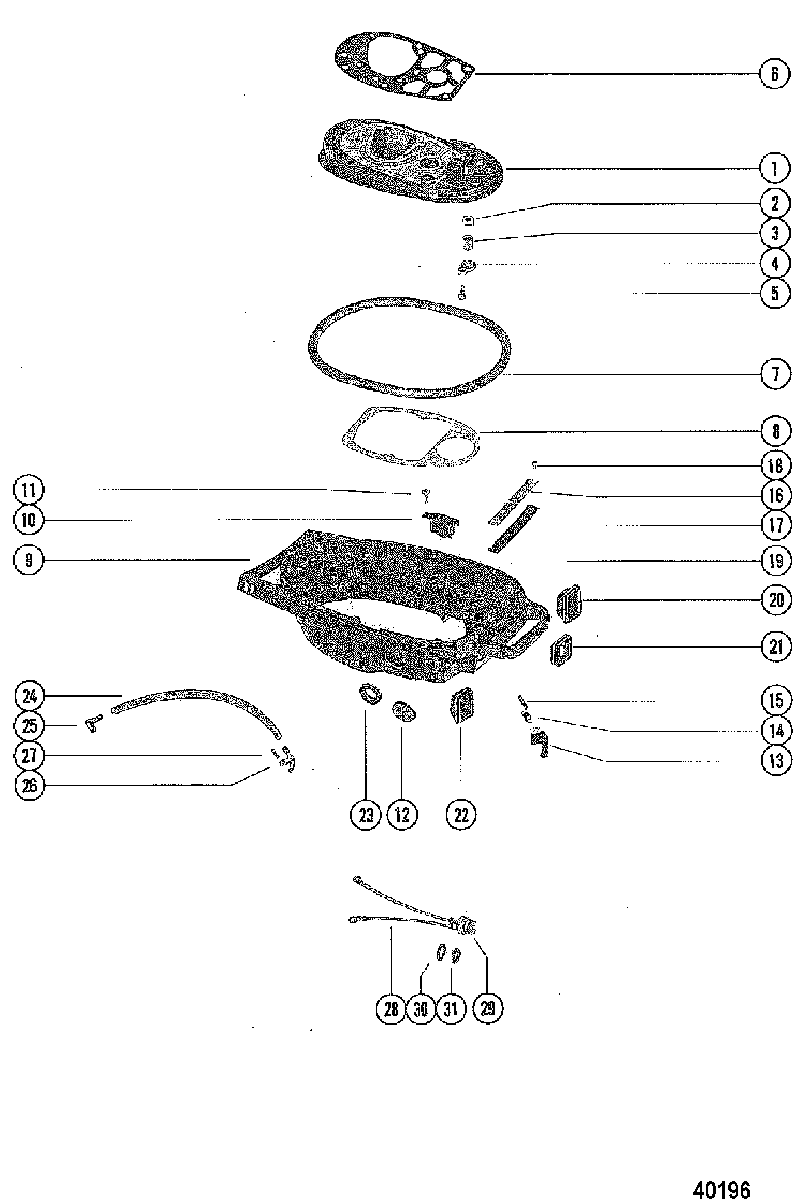

BOTTOM COWL ASSEMBLY для Mercury - 200, 20 9157230 & Up
-
№АртикулНазвание
-
188381A3 PLATE ASSEMBLY, MOUNTING
SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & BelowPLATE ASSEMBLY, MOUNTING
SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below -
188381A3 PLATE ASSEMBLY, MOUNTING
SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & UpPLATE ASSEMBLY, MOUNTING
SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up -
223-86215 BEARING, NYLON - WATER INLET TUBEBEARING, NYLON - WATER INLET TUBE
-
326-25329 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
433513 RETAINER, WATER INLET TUBE SEALRETAINER, WATER INLET TUBE SEAL
-
510-20540 SCREW, (.250-20 x .62)SCREW, (.250-20 x .62)
-
627-39401 GASKET, POWERHEAD TO MOUNTING PLATEGASKET, POWERHEAD TO MOUNTING PLATE
-
739622 SEAL, MOUNTING PLATE TO BOTTOM COWLSEAL, MOUNTING PLATE TO BOTTOM COWL
-
827-39402 GASKETGASKET
-
92129-7065A2 BOTTOM COWL ASSEMBLY
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & BelowBOTTOM COWL ASSEMBLY
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below -
92129-7065A2 BOTTOM COWL ASSEMBLY
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & UpBOTTOM COWL ASSEMBLY
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up -
1048472 COVER, HARNESS HOLE
MANUALCOVER, HARNESS HOLE
MANUAL -
1110-61802 SCREW, (7/8")
MANUALSCREW, (7/8")
MANUAL -
1219-824928001 PLUG, BOTTOM COWL
ELECTRICPLUG, BOTTOM COWL
ELECTRIC -
1376176 LEVER, FRONT COVERLEVER, FRONT COVER
-
1424-76177 SPRING, FRONT COVER LEVERSPRING, FRONT COVER LEVER
-
1517-26541 PIN, Roll, LEVER TO BOTTOM COWLPIN, Roll, LEVER TO BOTTOM COWL
-
1646266A2 COVER PLATE ASSEMBLY, BOTTOM COWLCOVER PLATE ASSEMBLY, BOTTOM COWL
-
1739591 PAD, SOUND - COVER PLATEPAD, SOUND - COVER PLATE
-
1810-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
2078497 BOOT, THROTTLE CABLE - BOTTOM COWLBOOT, THROTTLE CABLE - BOTTOM COWL
-
2139778 GROMMET, FUEL ADAPTOR - BOTTOM COWLGROMMET, FUEL ADAPTOR - BOTTOM COWL
-
2239780 BOOT, SHIFT CABLE - BOTTOM COWLBOOT, SHIFT CABLE - BOTTOM COWL
-
2339058 SEAL, SHIFT HANDLE - BOTTOM COWLSEAL, SHIFT HANDLE - BOTTOM COWL
-
2432-8M0108355 HOSE (11 INCHES)HOSE (11 INCHES)
-
2522-996642 ELBOW, Component of Cylinder Block and Crankcase AssemblyELBOW, Component of Cylinder Block and Crankcase Assembly
-
2652889 NOZZLE, Component of Bottom Cowl AssemblyNOZZLE, Component of Bottom Cowl Assembly
-
2710-48409 SCREW, (#10-16 x .625) Stainless Steel, Component of Bottom Cowl AssemblySCREW, (#10-16 x .625) Stainless Steel, Component of Bottom Cowl Assembly
-
2887-69508A31 SWITCH ASSEMBLY, Stop
MANUALSWITCH ASSEMBLY, Stop
MANUAL -
2987-99525A1 COVER ASSEMBLY, STOP SWITCH
MANUALCOVER ASSEMBLY, STOP SWITCH
MANUAL -
3013-69845 LOCKWASHER, STOP SWITCH
MANUALLOCKWASHER, STOP SWITCH
MANUAL -
3111-69844 NUT, STOP SWITCH
MANUALNUT, STOP SWITCH
MANUAL
