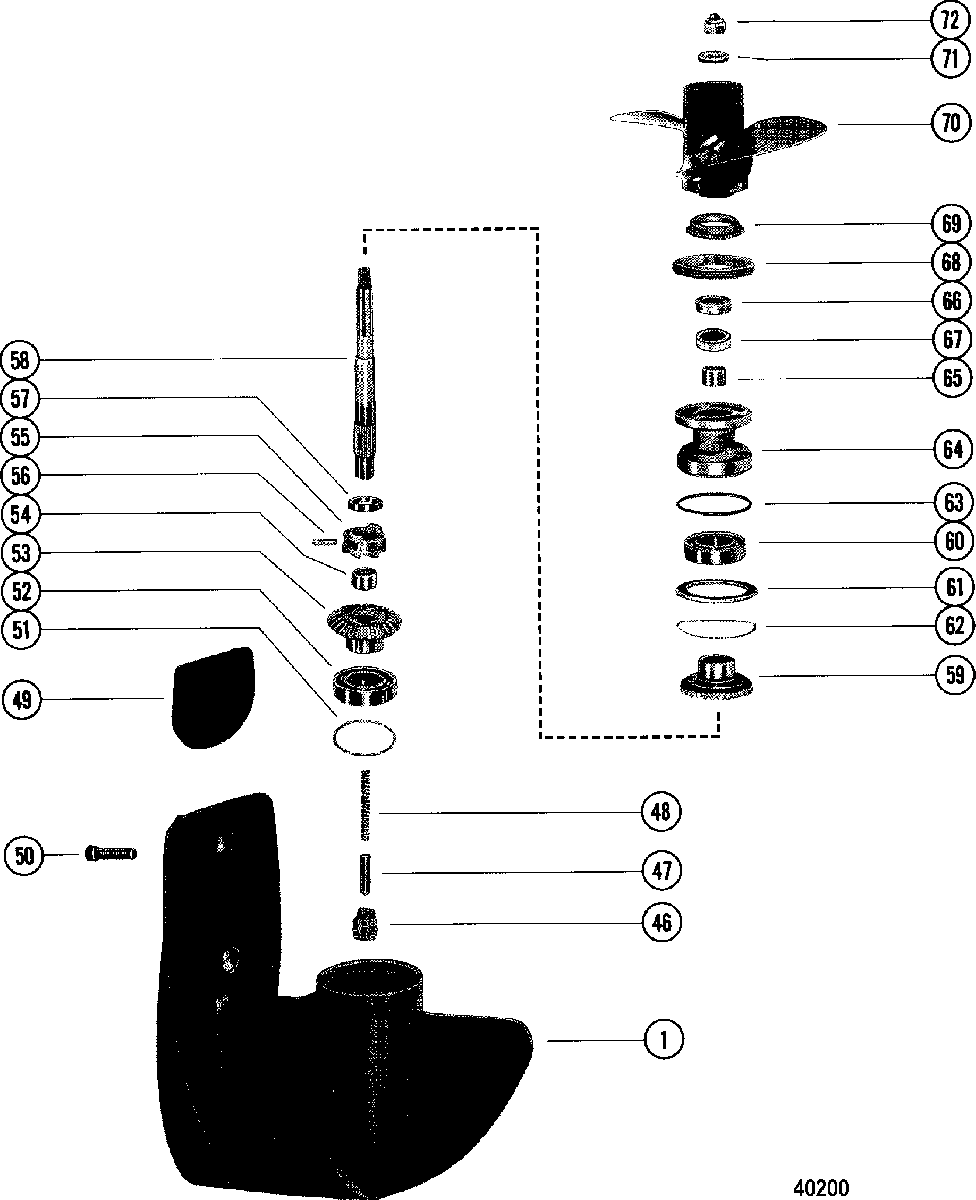

GEAR HOUSING ASSEMBLY, PROPELLER SHAFT для Mercury - 200, 20 9157230 & Up
-
№АртикулНазвание
-
-1627-6006A3 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & BelowGEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below -
-1627-6006A4 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & BelowGEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-5606491/Australia-8065489/Belgium-9259830/Canada-7148237 & Below -
-1627-6006A15 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & UpGEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up -
-1627-6006A16 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & UpGEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) SN# USA-5606492/Australia-8065490/Belgium-9259831/Canada-7148238 & Up -
11627-6006A5 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
4658975 CAM, SHAFTCAM, SHAFT
-
4733438 FOLLOWER, CAMFOLLOWER, CAM
-
4824-88435 SPRING, CAM FOLLOWERSPRING, CAM FOLLOWER
-
4997-47820A1 PLATE ASSEMBLY, ANODIC-GEAR HOUSINGPLATE ASSEMBLY, ANODIC-GEAR HOUSING
-
5010-79436 SCREW, (.312-18 x 1.250) Stainless SteelSCREW, (.312-18 x 1.250) Stainless Steel
-
5115-20788A1 SHIM SETSHIM SET
-
5230-25398 BEARING, BALL-FORWARD GEARBEARING, BALL-FORWARD GEAR
-
5343-45227A5 GEAR, ForwardGEAR, Forward
-
5431-28157 BEARING, ROLLER-FORWARD GEARBEARING, ROLLER-FORWARD GEAR
-
5552-53518A1 RATCHET ASSEMBLY, SLIDING CLUTCHRATCHET ASSEMBLY, SLIDING CLUTCH
-
5617-53372 PIN, CROSS-RATCHET TO PROPELLER SHAFTPIN, CROSS-RATCHET TO PROPELLER SHAFT
-
5724-53373 SPRING, RETAINING-CROSS PINSPRING, RETAINING-CROSS PIN
-
5844-75366A2 PROPELLER SHAFT ASSEMBLYPROPELLER SHAFT ASSEMBLY
-
5943-45229 GEAR, ReverseGEAR, Reverse
-
6030-25398 BEARING, BALL-REVERSE GEARBEARING, BALL-REVERSE GEAR
-
6171525 SLEEVE, THRUST-REVERSE GEARSLEEVE, THRUST-REVERSE GEAR
-
6215-33431A1 SHIMSHIM
-
6325-33465 O-RING, BEARING CARRIERO-RING, BEARING CARRIER
-
6472694T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6531-28157 BEARING, ROLLER-BEARING CARRIERBEARING, ROLLER-BEARING CARRIER
-
6626-26805 SEAL, Oil, BEARING CAARRIERSEAL, Oil, BEARING CAARRIER
-
6726-66303 SEAL, Oil, BEARING CARRIER (SPRING LOADED)SEAL, Oil, BEARING CARRIER (SPRING LOADED)
-
6872710 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
6923-85964A1 COLLAR GUIDE, Component of Propeller Shaft AssemblyCOLLAR GUIDE, Component of Propeller Shaft Assembly
-
7048-33480A1 PROPELLER ASSEMBLY (2 BLD-11" PITCH)
SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & BelowPROPELLER ASSEMBLY (2 BLD-11" PITCH)
SN# USA-5183392/Australia-8057144/Belgium-9214455/Canada-7124212 & Below -
7048-34402A1 PROPELLER ASSEMBLY (2BLD-BRONZE-11" PITCH)PROPELLER ASSEMBLY (2BLD-BRONZE-11" PITCH)
-
7048-86962A4 PROPELLER ASSEMBLY (3BLD-ALUM.-9" PITCH)PROPELLER ASSEMBLY (3BLD-ALUM.-9" PITCH)
-
7048-86962A4 PROPELLER ASSEMBLY (3 BLD-ALUM.-9" PITCH)
SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & UpPROPELLER ASSEMBLY (3 BLD-ALUM.-9" PITCH)
SN# USA-5183393/Australia-8057145/Belgium-9214456/Canada-7124213 & Up -
7048-37316A1 PROPELLER ASSEMBLY (3 BLD.-ALUM.-7" PITCH)PROPELLER ASSEMBLY (3 BLD.-ALUM.-7" PITCH)
-
7048-65002A1 PROPELLER ASSEMBLY (2 BLD-11" PITCH)-NYLONPROPELLER ASSEMBLY (2 BLD-11" PITCH)-NYLON
-
--66607 HUB, THRUST (USE WITH NYLON PROP ONLY)HUB, THRUST (USE WITH NYLON PROP ONLY)
-
7111-64075A1 SPACER, SPLINE-PROPELLER SHAFTSPACER, SPLINE-PROPELLER SHAFT
-
7211-64075A1 NUT, PROPELLERNUT, PROPELLER
Все узлы модели:
- BOTTOM COWL ASSEMBLY
- CARBURETOR AND CHOKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- CRANKSHAFT AND CENTER MAIN BEARING ASSEMBLY
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVESHAFT HOUSING ASSEMBLY
- ELECTRIC COMPONENTS
- FLYWHEEL, IGNITION COIL AND SWITCH BOX
- GEAR HOUSING ASSEMBLY, DRIVESHAFT
- • GEAR HOUSING ASSEMBLY, PROPELLER SHAFT
- MISCELLANEOUS PARTS/ACCESSORIES
- PISTON AND CONNECTING ROD ASSEMBLY
- REMOTE CONTROL ATTACHMENT PARTS(ELECTRIC)
- SHIFT CONTROL LINKAGE
- STARTER ASSEMBLY
- STEERING HANDLE ASSEMBLY
- THROTTLE CONTROL LINKAGE
- TOP COWL, WRAP AROUND COWL AND FRONT COVER
- VOLTAGE REGULATOR(BELGUIM ONLY)
