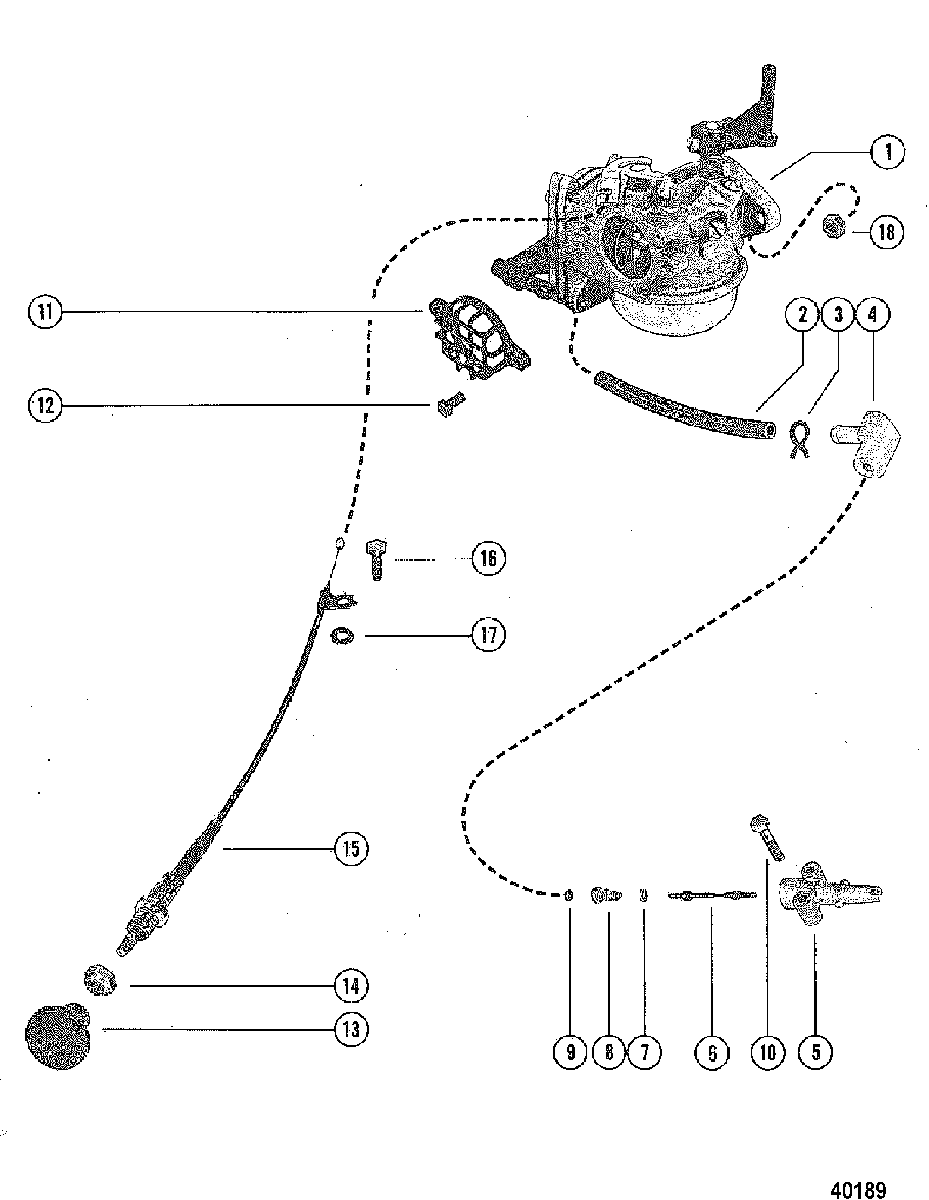

CARBURETOR AND CHOKE ASSEMBLY для Mercury - 200, 20 9157230 & Up
-
№АртикулНазвание
-
11367-6650A3 CARBURETOR ASSEMBLY, COMPLETE
SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947CARBURETOR ASSEMBLY, COMPLETE
SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947 -
11367-6650A3 CARBURETOR ASSEMBLY, COMPLETE
SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & UpCARBURETOR ASSEMBLY, COMPLETE
SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up -
232-8M0108355 LINE, Fuel, ADAPTOR TO CARGURETOR (9-3/4")LINE, Fuel, ADAPTOR TO CARGURETOR (9-3/4")
-
354-68424 CLAMP, FUEL HOSE ATTACHINGCLAMP, FUEL HOSE ATTACHING
-
422-63981 FITTING, FUEL LINE TO ADAPTORFITTING, FUEL LINE TO ADAPTOR
-
522833 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
623069 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
725-16524 O-RING, ADAPTOR STEMO-RING, ADAPTOR STEM
-
824-23067T SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
930188 WASHER, ADAPTORWASHER, ADAPTOR
-
1010-37923 SCREW, (.250-28 x 1.250), ADAPTOR TO BOTTOM COWLSCREW, (.250-28 x 1.250), ADAPTOR TO BOTTOM COWL
-
1165552 SCREEN, CARBURETORSCREEN, CARBURETOR
-
1210-69022 SCREW, (#10-32 x .500) Stainless Steel, SCREEN TO CARBURETORSCREW, (#10-32 x .500) Stainless Steel, SCREEN TO CARBURETOR
-
1386381 KNOB, CHOKEKNOB, CHOKE
-
1386874 BUTTON, CHOKE
(BELGIUM ONLY)BUTTON, CHOKE
(BELGIUM ONLY) -
1411-73710 NUT, CHOKE CABLE TO BOTTOM COWLNUT, CHOKE CABLE TO BOTTOM COWL
-
1572465 CABLE, ChokeCABLE, Choke
-
1610-690201 SCREW, (#10-32 x .875), CHOKE CABLE TO CARBURETORSCREW, (#10-32 x .875), CHOKE CABLE TO CARBURETOR
-
1712-56681 WASHER, (.203 x .500 x .032), CHOKE CABLE SCREWWASHER, (.203 x .500 x .032), CHOKE CABLE SCREW
-
1811-22053 NUT, (5/16-24), CARBURETOR ATTACHINGNUT, (5/16-24), CARBURETOR ATTACHING
