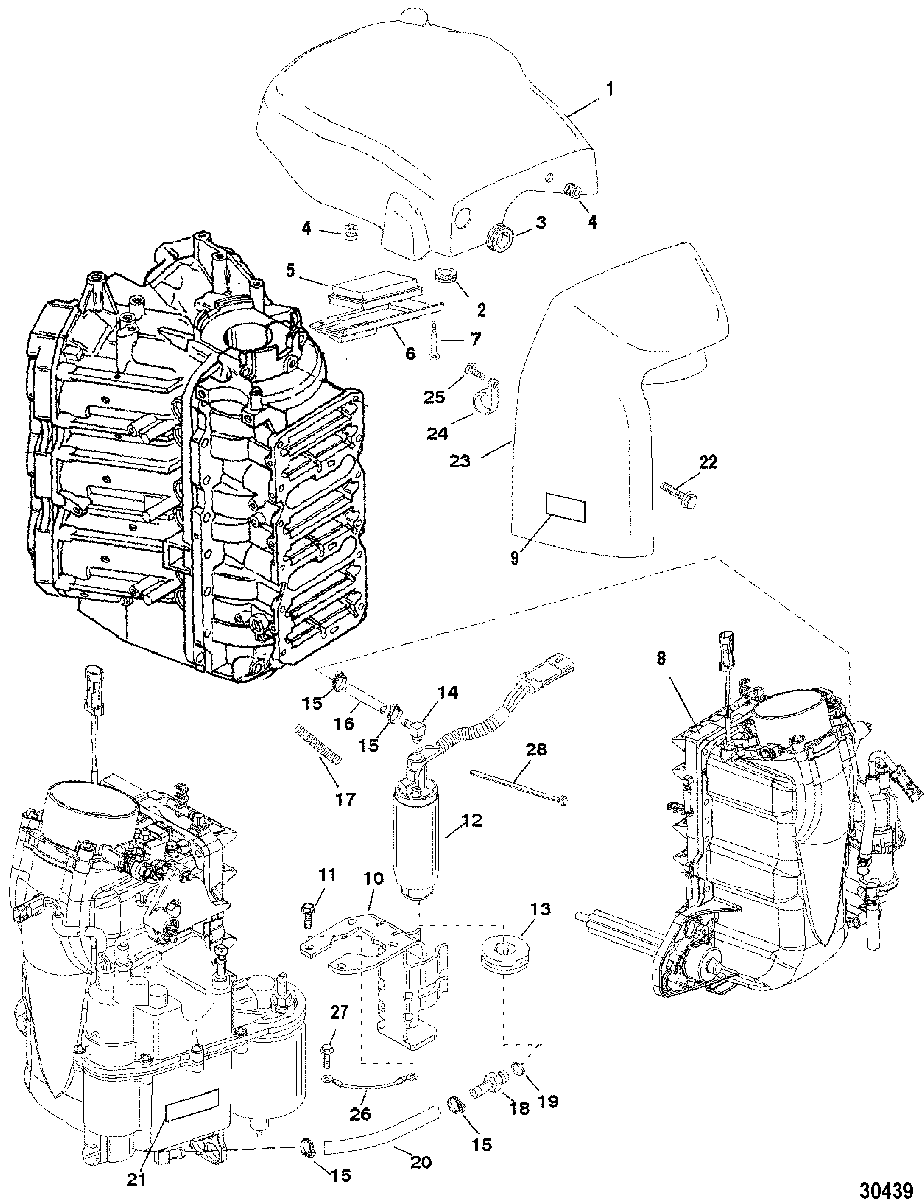

AIR HANDLER для Mercury - 200 (DFI) 0T178500 THRU 0T598999
-
№АртикулНазвание
-
18M0111168 COVERCOVER
-
225-86361 GROMMETGROMMET
-
325-13467 GROMMET, (.88 Inside Diameter)GROMMET, (.88 Inside Diameter)
-
425-821555001 GROMMETGROMMET
-
535-853333T FILTERFILTER
-
68544932 COVERCOVER
-
710-40056106 SCREW, (M5 x 13)SCREW, (M5 x 13)
-
8878112T1 AIR HANDLER ASSEMBLYAIR HANDLER ASSEMBLY
-
937-881865 DECAL, Caution-Start in GearDECAL, Caution-Start in Gear
-
10855756A1 BRACKET KITBRACKET KIT
-
1110-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
128M0047624 PUMP ASSEMBLYPUMP ASSEMBLY
-
1325-856928 GROMMETGROMMET
-
1422-855802A1 ELBOWELBOW
-
1554-13791 CLAMP, (15.7)CLAMP, (15.7)
-
1632-856825 HOSEHOSE
-
1723-85686953 SLEEVE, (27.00 Inches Bulk)SLEEVE, (27.00 Inches Bulk)
-
1822-880862A1 FITTINGFITTING
-
1925-805062 O-RING, (.530 x .082)O-RING, (.530 x .082)
-
2032-856778 HOSEHOSE
-
2137-804658A02 DECAL, EPA Label Information
(2002)(SEE NOTE 1)DECAL, EPA Label Information
(2002)(SEE NOTE 1) -
2137-804658A01 DECAL, EPA Label Information
(2001)(SEE NOTE 1)DECAL, EPA Label Information
(2001)(SEE NOTE 1) -
2210-82130045 SCREW, (M6 x 45)SCREW, (M6 x 45)
-
23854343T7 ATTENUATOR ASSEMBLY, AirATTENUATOR ASSEMBLY, Air
-
2454-23567 CLIPCLIP
-
2510-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
2684-88807A27 CABLE ASSEMBLYCABLE ASSEMBLY
-
2710-16955 SCREW, (M6 x 8)SCREW, (M6 x 8)
-
2861990 TIE STRAP, (14.00 Inches)TIE STRAP, (14.00 Inches)
