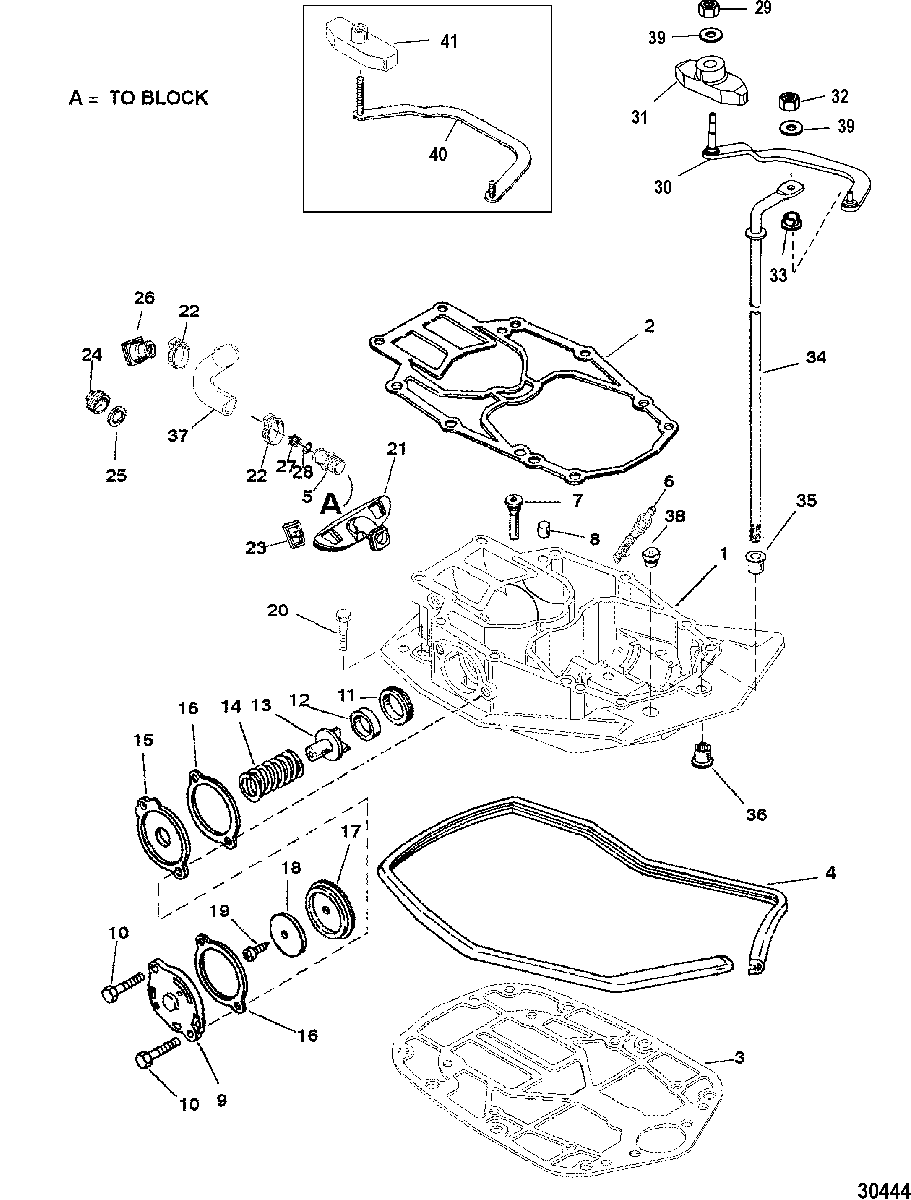

EXHAUST PLATE для Mercury - 200 (DFI) 0T178500 THRU 0T598999
-
№АртикулНазвание
-
1832935A17 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
227-832933006 GASKETGASKET
-
327-832934006 GASKET (LOWER)GASKET (LOWER)
-
48M0043157 SEALSEAL
-
522-8320761 FITTING, Check ValveFITTING, Check Valve
-
635-8348084 STRAINERSTRAINER
-
721-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
817-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
965663A2 COVER ASSEMBLYCOVER ASSEMBLY
-
1010-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
11814190 CARRIERCARRIER
-
1225-814191 GROMMETGROMMET
-
13814189 POPPETPOPPET
-
1424-64878 SPRINGSPRING
-
1565664A1 PLATE ASSEMBLYPLATE ASSEMBLY
-
1627-88907003 GASKETGASKET
-
17648771 DIAPHRAGMDIAPHRAGM
-
1812-76451 WASHERWASHER
-
1910-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
2010-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
21850306A04 BOOT, Idle ExhaustBOOT, Idle Exhaust
-
2254-850896 CLAMP, (28.6)CLAMP, (28.6)
-
2322-8M0077650 FITTING, Tell-TaleFITTING, Tell-Tale
-
2419-821908 PLUGPLUG
-
2512-821915 WASHERWASHER
-
2622-8596001 FITTINGFITTING
-
278219631 CHECK VALVECHECK VALVE
-
2825-30641 O-RING, (.299 x .103)O-RING, (.299 x .103)
-
2911-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
30883142A03 SHIFT LINK KIT
(DESIGN II)SHIFT LINK KIT
(DESIGN II) -
318539683 SLIDE
(DESIGN II)SLIDE
(DESIGN II) -
3211-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
3323-42994 BUSHINGBUSHING
-
348M0036408 SHIFT SHAFT, Upper
(LONG)SHIFT SHAFT, Upper
(LONG) -
348M0046246 SHIFT SHAFT, Upper
(X-LONG)SHIFT SHAFT, Upper
(X-LONG) -
348240703 SHIFT SHAFT, Upper
(XX-LONG)SHIFT SHAFT, Upper
(XX-LONG) -
3523-48237 BUSHINGBUSHING
-
3643585 COUPLINGCOUPLING
-
3732-859626A1 FLUSH HOSE KITFLUSH HOSE KIT
-
3825-12602002 GROMMETGROMMET
-
3912-35459 WASHERWASHER
-
40883142A03 SHIFT LINK
(DESIGN I)SHIFT LINK
(DESIGN I) -
418539682 SLIDE
(DESIGN I)SLIDE
(DESIGN I) -
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
-
-877869A01 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225) -
-854198R01 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
