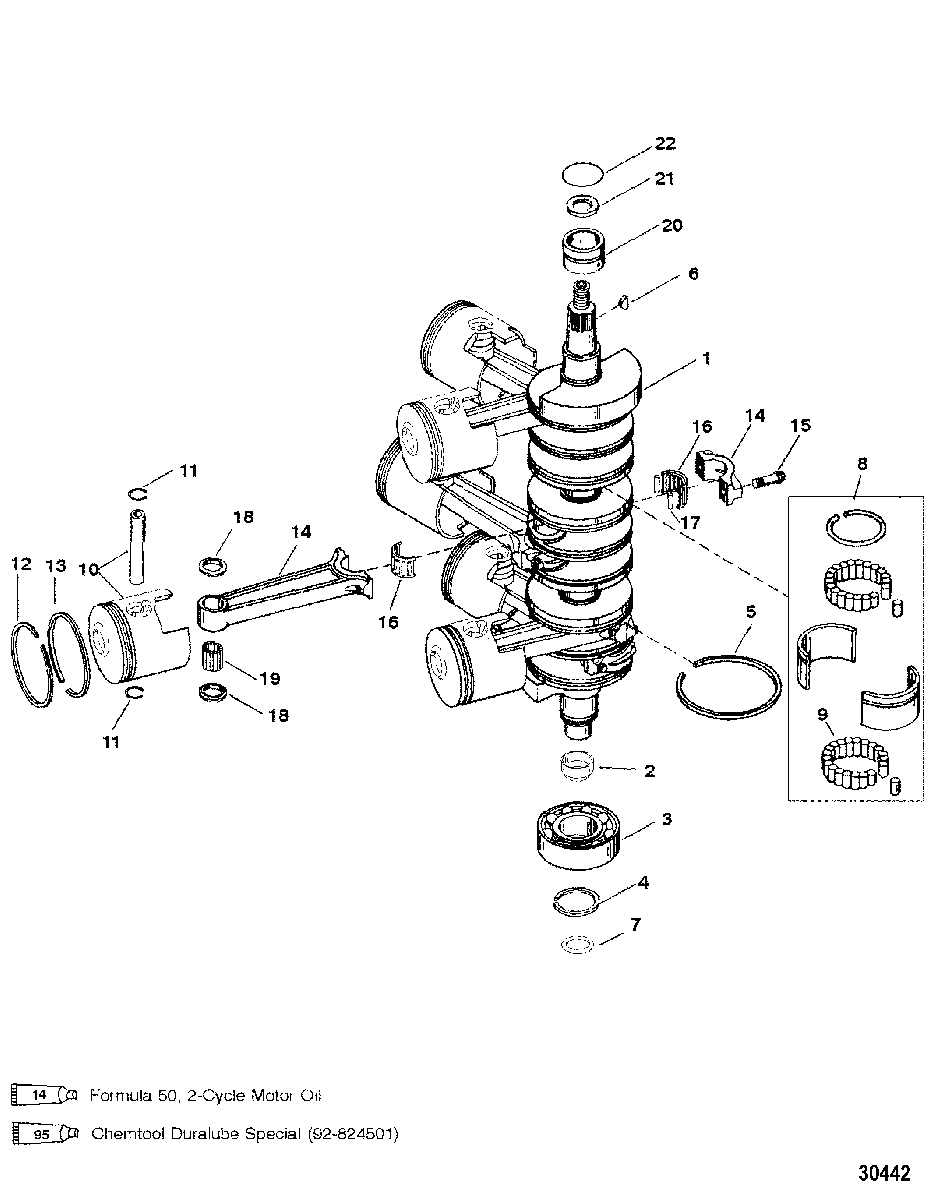

CRANKSHAFT, PISTONS - AND CONNECTING RODS для Mercury - 200 (DFI) 0T178500 THRU 0T598999
-
№АртикулНазвание
-
1482-9784A11 CRANKSHAFT
SN# 0T325116 & BelowCRANKSHAFT
SN# 0T325116 & Below -
1482-9784A11 CRANKSHAFT ASSEMBLY
SN# 0T325117 & UpCRANKSHAFT ASSEMBLY
SN# 0T325117 & Up -
2NSS NOT SOLD SEPARATE, WEAR SLEEVENOT SOLD SEPARATE, WEAR SLEEVE
-
330-67923T BEARING, Ball (LOWER)BEARING, Ball (LOWER)
-
453-67446 RINGRING
-
539-843198T01 RINGRING
-
628-91800 KEY, WoodruffKEY, Woodruff
-
725-35126 O-RING, (.859 x .139)O-RING, (.859 x .139)
-
831-88270A02 RACE ASSEMBLY
SN# 0T325117 & UpRACE ASSEMBLY
SN# 0T325117 & Up -
9NSS NOT SOLD SEPARATE, NEEDLE BEERING
SN# 0T325117 & UpNOT SOLD SEPARATE, NEEDLE BEERING
SN# 0T325117 & Up -
88M0113288 RACE ASSEMBLY, Bearing
SN# 0T325116 & BelowRACE ASSEMBLY, Bearing
SN# 0T325116 & Below -
9NSS NOT SOLD SEPARATE, NEEDLE ROLLER
SN# 0T325116 & BelowNOT SOLD SEPARATE, NEEDLE ROLLER
SN# 0T325116 & Below -
102720-859297T2 PISTON
(STBD-STANDARD)PISTON
(STBD-STANDARD) -
102720-859444A2 PISTON ASSEMBLY
(STBD - .015 O.S)PISTON ASSEMBLY
(STBD - .015 O.S) -
102720-859446A2 PISTON ASSEMBLY
(STBD - .030 O.S)PISTON ASSEMBLY
(STBD - .030 O.S) -
102720-859296T2 PISTON
(PORT-STANDARD)PISTON
(PORT-STANDARD) -
102720-859443A2 PISTON ASSEMBLY
(PORT - .015 O.S)PISTON ASSEMBLY
(PORT - .015 O.S) -
102720-859445A2 PISTON ASSEMBLY
(PORT - .030 O.S)PISTON ASSEMBLY
(PORT - .030 O.S) -
1153-8320811 LOCK RINGLOCK RING
-
1239-858772A12 RING SET, Piston
(STANDARD)RING SET, Piston
(STANDARD) -
1239-875252A12 RING SET, Piston
(.015 O/S)RING SET, Piston
(.015 O/S) -
1239-875257A12 RING SET, Piston
(.030 O/S)RING SET, Piston
(.030 O/S) -
13NSS NOT SOLD SEPARATE, PISTON RING (LOWER)NOT SOLD SEPARATE, PISTON RING (LOWER)
-
14600-8M0125869 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1510-94320 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1631-844338A01 BEARING/CAGE KITBEARING/CAGE KIT
-
17NSS NOT SOLD SEPARATE, NEEDLE ROLLER BEARINGNOT SOLD SEPARATE, NEEDLE ROLLER BEARING
-
1812-88263 THRUST WASHERTHRUST WASHER
-
1929-88258001 NEEDLE, Roller BearingNEEDLE, Roller Bearing
-
2031-816773A2 BEARING ASSEMBLY (UPPER)BEARING ASSEMBLY (UPPER)
-
2126-859093 SEALSEAL
-
2225-823683 O-RING, (1.989 x .070)O-RING, (1.989 x .070)
-
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
-
-877869A01 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225) -
-854198R01 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
