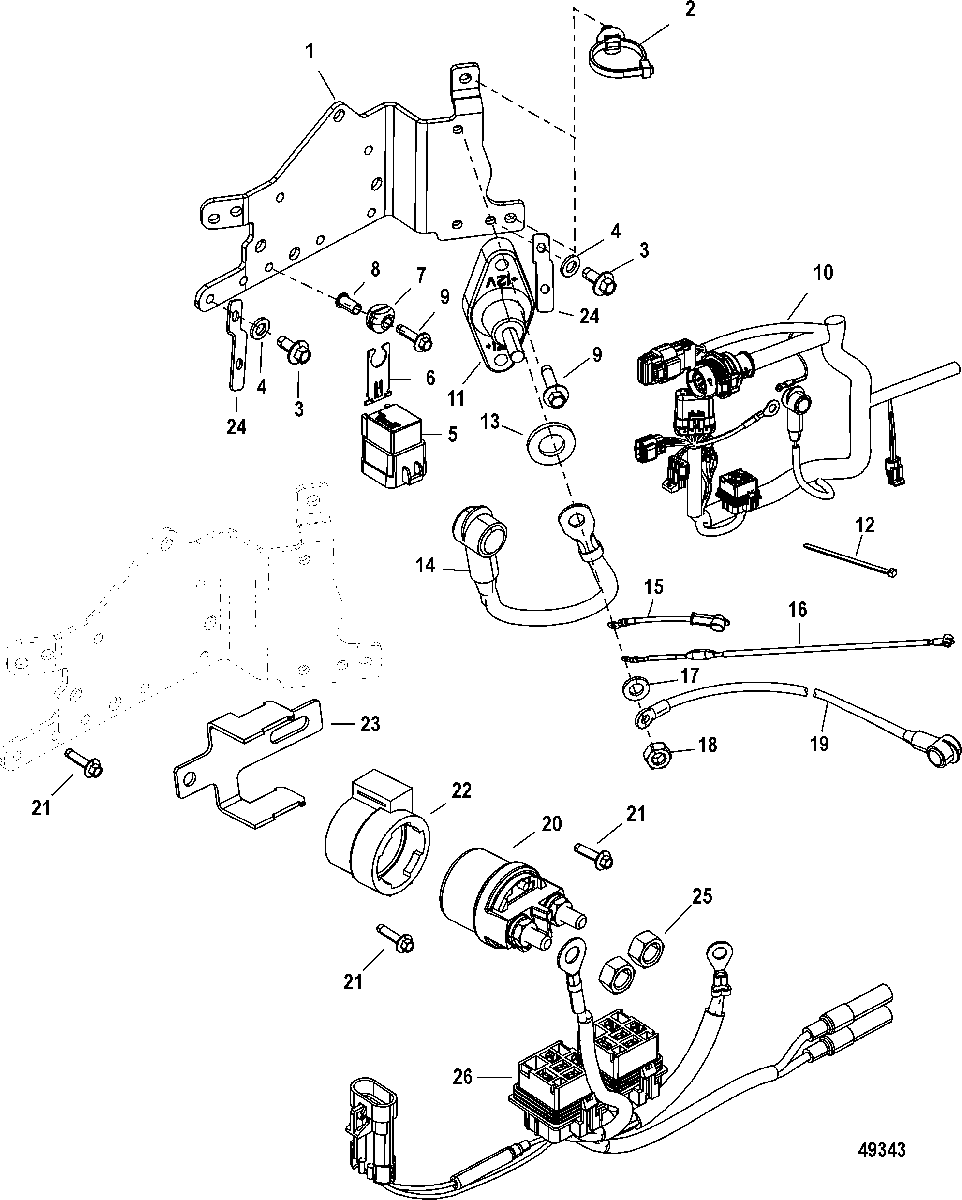

Electrical Plate Components, SN# 1B884208 and up для Mercury - 200 PRO XS (DFI) 3.0L 1B504989 THRU 1B912785
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Electrical Plate Assembly-CompleteNOT SOLD SEPARATE, Electrical Plate Assembly-Complete
-
1899071T01 PLATEPLATE
-
254-899145 CLIP, Tie StrapCLIP, Tie Strap
-
310-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
5882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
6828102 BRACKETBRACKET
-
725-818967 GROMMETGROMMET
-
823-818968 BUSHINGBUSHING
-
910-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
1084-8M0065142 HARNESS ASSEMBLY, EngineHARNESS ASSEMBLY, Engine
-
-88-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
-88-8329692 FUSE, Mini - Gray - 2 AmpereFUSE, Mini - Gray - 2 Ampere
-
-88-832969T05 FUSE, Mini - Tan - 5 AmpereFUSE, Mini - Tan - 5 Ampere
-
-879346A49 HARNESS REPAIR KIT, Direct InjectorHARNESS REPAIR KIT, Direct Injector
-
-879346A50 HARNESS REPAIR KIT, Fuel InjectorHARNESS REPAIR KIT, Fuel Injector
-
-84-881262A2 HARNESS ASSEMBLY, AlternatorHARNESS ASSEMBLY, Alternator
-
-879346A41 HARNESS ASSEMBLY, Throttle Position SensorHARNESS ASSEMBLY, Throttle Position Sensor
-
1185-875302A1 HOT STUD ASSEMBLYHOT STUD ASSEMBLY
-
1254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1312-85172 WASHERWASHER
-
1484-8M0030525 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
1584-93388A17 CABLE ASSEMBLY, (8.50 Inches)CABLE ASSEMBLY, (8.50 Inches)
-
1684-878231A6 HARNESS ASSEMBLY, Fuse - 100 AmpereHARNESS ASSEMBLY, Fuse - 100 Ampere
-
1713-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1811-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
1984-88439A46 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
2089-8M0098898 SOLENOID, StarterSOLENOID, Starter
-
2110-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
228M0010250 BRACKETBRACKET
-
238M0024801 BRACKET, SolenoidBRACKET, Solenoid
-
24858953 BRACKETBRACKET
-
2511-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2684-8M0065143 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
