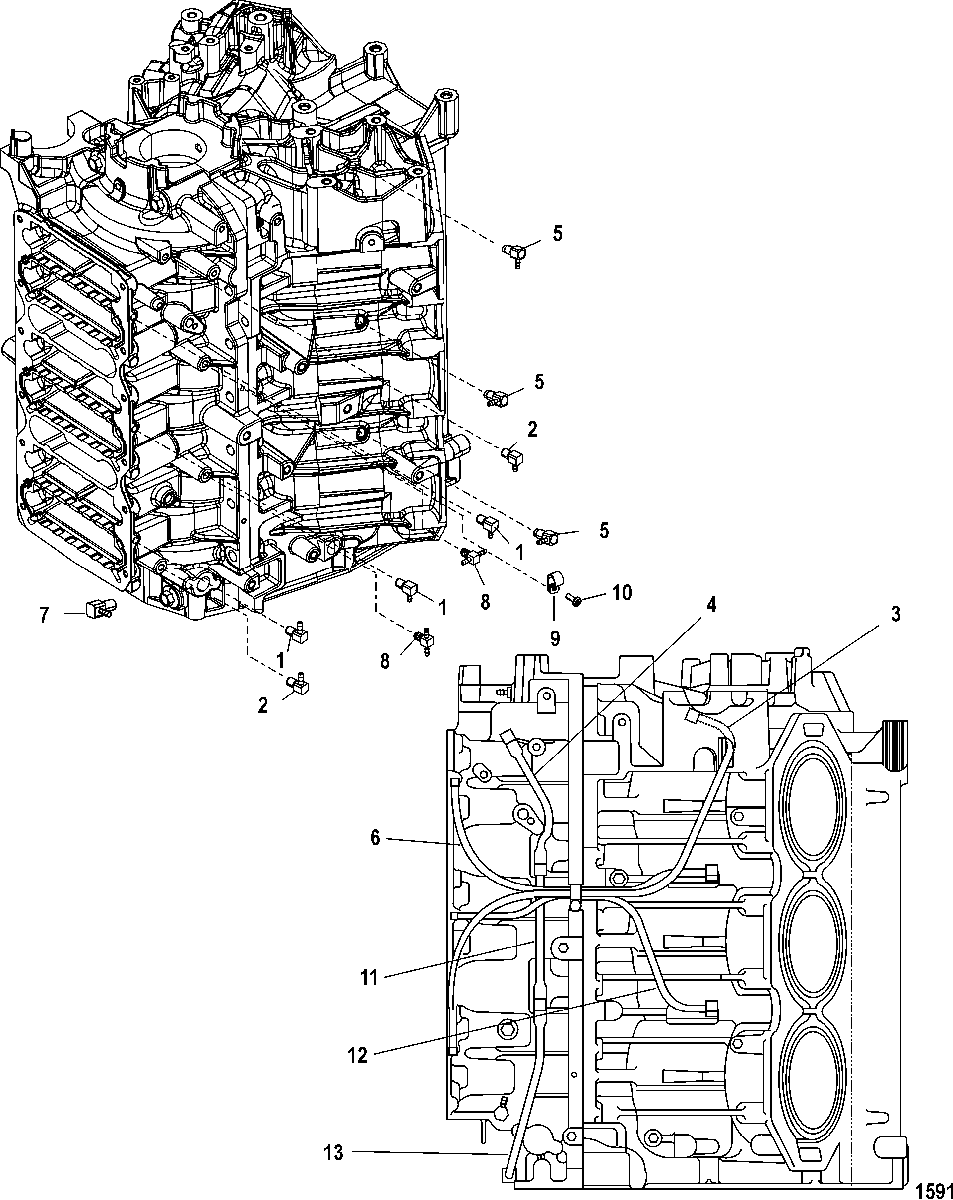

Port Center Main Oiling System для Mercury - 200 PRO XS (DFI) 3.0L 1B504989 THRU 1B912785
-
№АртикулНазвание
-
122-887801 FITTING, Elbow 90 Degree (.0625-27)FITTING, Elbow 90 Degree (.0625-27)
-
222-887801 FITTING, Elbow 90 Degree (.0625-27)FITTING, Elbow 90 Degree (.0625-27)
-
332-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 20-1/2 InchesTUBING, (38.00 Inches Bulk), Cut to 20-1/2 Inches
-
432-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 5 InchesTUBING, (38.00 Inches Bulk), Cut to 5 Inches
-
521-8592352 CHECK VALVE, 90 Degree (.0625-27)CHECK VALVE, 90 Degree (.0625-27)
-
632-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 13 InchesTUBING, (38.00 Inches Bulk), Cut to 13 Inches
-
721-8282182 CHECK VALVECHECK VALVE
-
821-8582362 CHECK VALVECHECK VALVE
-
954-23567 CLIPCLIP
-
1010-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1132-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 4-3/4 InchesTUBING, (38.00 Inches Bulk), Cut to 4-3/4 Inches
-
1232-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 11 InchesTUBING, (38.00 Inches Bulk), Cut to 11 Inches
-
1332-8M0054152 TUBING, (38.00 Inches Bulk), Cut to 9-1/2 InchesTUBING, (38.00 Inches Bulk), Cut to 9-1/2 Inches
-
-854198A07 POWERHEAD ASSEMBLY
200/200 Pro XSPOWERHEAD ASSEMBLY
200/200 Pro XS -
-877869A07 POWERHEAD ASSEMBLY
225POWERHEAD ASSEMBLY
225 -
-61-843034A07 POWERHEAD ASSEMBLY
250POWERHEAD ASSEMBLY
250
