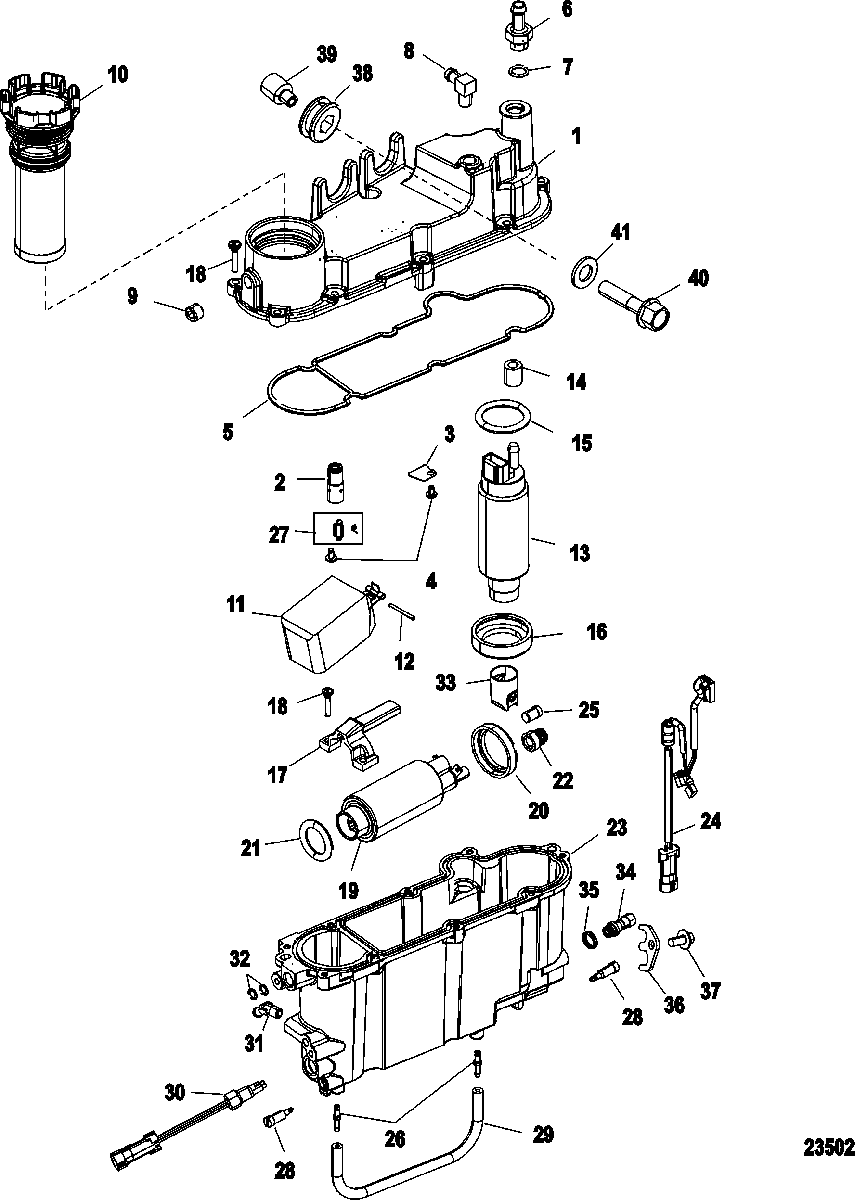

Vapor Separator Components для Mercury - 200 PRO XS (DFI) 3.0L 1B504989 THRU 1B912785
-
№АртикулНазвание
-
-880133T12 VAPOR SEPARATOR ASSEMBLYVAPOR SEPARATOR ASSEMBLY
-
1889317T1 COVER KITCOVER KIT
-
2NSS NOT SOLD SEPARATE, SeatNOT SOLD SEPARATE, Seat
-
3889318001 PLATE, BafflePLATE, Baffle
-
410-883223 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
527-889319 GASKETGASKET
-
622-883556 FITTINGFITTING
-
725-8M0062785 O-RINGO-RING
-
822-889329 FITTINGFITTING
-
919-883208 PLUGPLUG
-
1035-8M0122423 FILTER, FuelFILTER, Fuel
-
11889320A1 FLOAT KITFLOAT KIT
-
12F10064 SHAFTSHAFT
-
13888725T02 PUMP ASSEMBLY, Fuel - High PressurePUMP ASSEMBLY, Fuel - High Pressure
-
148M6000589 SLEEVESLEEVE
-
1525-8893162 O-RINGO-RING
-
1626-8M6001412 SEALSEAL
-
17889328 RETAINERRETAINER
-
181395-9643 SCREWSCREW
-
19888733T02 PUMP ASSEMBLY, BoostPUMP ASSEMBLY, Boost
-
2025-889322 GROMMETGROMMET
-
2125-889316 O-RINGO-RING
-
2226-8M6001413 SEALSEAL
-
23889324T03 BOWL KITBOWL KIT
-
2484-889325A02 WIREWIRE
-
25NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
2622-855424011 FITTINGFITTING
-
27889326A1 VALVE KIT, InletVALVE KIT, Inlet
-
2810-889327002 SCREW, DrainSCREW, Drain
-
2932-883545002 HOSEHOSE
-
308M0021043 SENSOR ASSEMBLY, Fuel and WaterSENSOR ASSEMBLY, Fuel and Water
-
3122-782792 FITTING, Elbow 45 Degree (1.25)FITTING, Elbow 45 Degree (1.25)
-
3225-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
33889430 INSERTINSERT
-
34884820 SHRADER VALVESHRADER VALVE
-
3525-891778 O-RINGO-RING
-
3654-884819 CLIPCLIP
-
3710-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
3825-855362001 GROMMETGROMMET
-
3923-883050 SPACERSPACER
-
4010-81893460 SCREW, (M8 x 60)SCREW, (M8 x 60)
-
4112-4002318 WASHERWASHER
-
-25-889316A1 O-RING KIT, Vapor SeperatorO-RING KIT, Vapor Seperator
