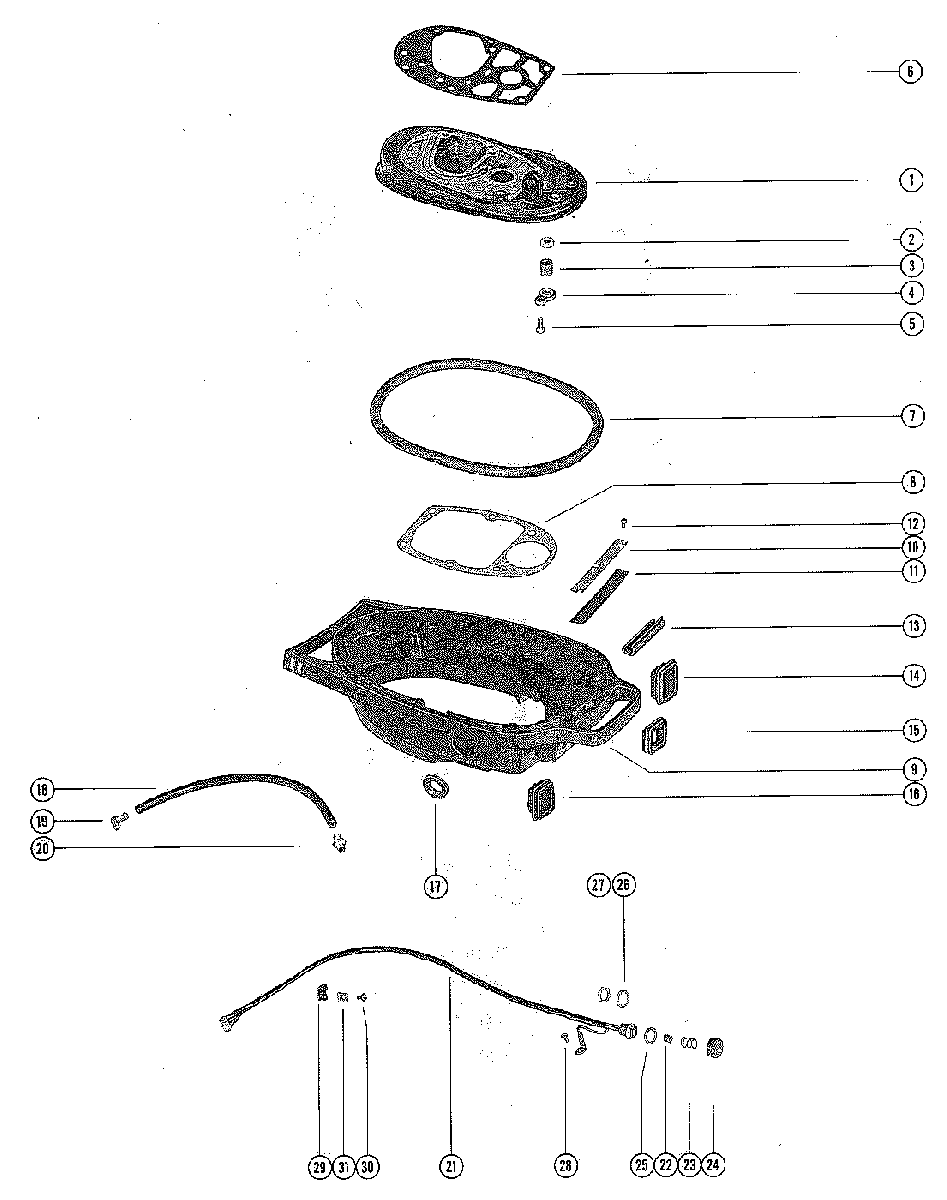

BOTTOM COWL ASSEMBLY для Mercury - 200 1866496 THRU 2296266
-
№АртикулНазвание
-
158978A2 PLATE ASSEMBLY, MOUNTINGPLATE ASSEMBLY, MOUNTING
-
223-86215 WASHER, NYLON - WATER INLET TUBEWASHER, NYLON - WATER INLET TUBE
-
326-25329 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
433513 RETAINER, WATER INLET TUBE SEALRETAINER, WATER INLET TUBE SEAL
-
510-20540 SCREW, RETAINER TO MOUNTING PLATE (5/8")SCREW, RETAINER TO MOUNTING PLATE (5/8")
-
627-39401 GASKET, POWERHEAD TO MOUNTING PLATEGASKET, POWERHEAD TO MOUNTING PLATE
-
739622 SEAL, MOUNTING PLATE TO BOTTOM COWLSEAL, MOUNTING PLATE TO BOTTOM COWL
-
827-39402 GASKET, MOUNTING PLATE TO DRIVE SHAFT HOUSINGGASKET, MOUNTING PLATE TO DRIVE SHAFT HOUSING
-
92129-3956A2 COWL, BOTTOMCOWL, BOTTOM
-
1046266A2 COVER PLATE ASSEMBLY, BOTTOM COWLCOVER PLATE ASSEMBLY, BOTTOM COWL
-
1139591 PAD, SOUND - COVER PLATEPAD, SOUND - COVER PLATE
-
1210-62568 SCREW, COVER PLATE TO BOTTOM COWL (3/8")SCREW, COVER PLATE TO BOTTOM COWL (3/8")
-
1339630 CUSHION, RUBBER - BOTTOM COWLCUSHION, RUBBER - BOTTOM COWL
-
1460886 BOOT, THROTTLE CABLE - BOTTOM COWLBOOT, THROTTLE CABLE - BOTTOM COWL
-
1539778 BOOT, FUEL ADAPTOR - BOTTOM COWLBOOT, FUEL ADAPTOR - BOTTOM COWL
-
1639780 BOOT, SHIFT CABLE - BOTTOM COWLBOOT, SHIFT CABLE - BOTTOM COWL
-
1739058 SEAL, SHIFT HANDLE - BOTTOM COWLSEAL, SHIFT HANDLE - BOTTOM COWL
-
1832-8M0108355 HOSE, TELL TALE - COWL TO EXHAUST COVER (16 1/2")HOSE, TELL TALE - COWL TO EXHAUST COVER (16 1/2")
-
1922-996642 ELBOW, TELL TALE HOSE TO EXHAUST COVERELBOW, TELL TALE HOSE TO EXHAUST COVER
-
2022-291112 CONNECTOR, TELL TALE HOSE TO BOTTOM COWLCONNECTOR, TELL TALE HOSE TO BOTTOM COWL
-
2033474A1 STOP SWITCH ASSEMBLYSTOP SWITCH ASSEMBLY
-
2133474 HARNESS, STOP SWITCHHARNESS, STOP SWITCH
-
2230859 INSULATOR, SLEEVE - INNER SWITCH TERMINALSINSULATOR, SLEEVE - INNER SWITCH TERMINALS
-
2324-30858A1 SPRING AND CONTACT ASSEMBLYSPRING AND CONTACT ASSEMBLY
-
2438950A1 COVER ASSEMBLY, STOP SWITCHCOVER ASSEMBLY, STOP SWITCH
-
2512-38949 WASHER, SEALING - STOP SWITCHWASHER, SEALING - STOP SWITCH
-
2613-21972 LOCKWASHER, STOP SWITCH CONNECTORLOCKWASHER, STOP SWITCH CONNECTOR
-
2711-21971 NUT, STOP SWITCH TO BOTTOM COWLNUT, STOP SWITCH TO BOTTOM COWL
-
2810-62568 SCREW, STOP SWITCH LEAD TO BOTTOM COWLSCREW, STOP SWITCH LEAD TO BOTTOM COWL
-
2954-26550 CLIP, STOP SWITCH LEADS FASTENINGCLIP, STOP SWITCH LEADS FASTENING
-
3010-62568 SCREW, STOP SWITCH LEADS CLIPSCREW, STOP SWITCH LEADS CLIP
-
318M0084613 "D" WASHER, STOP SWITCH LEADS CLIP SCREW"D" WASHER, STOP SWITCH LEADS CLIP SCREW
