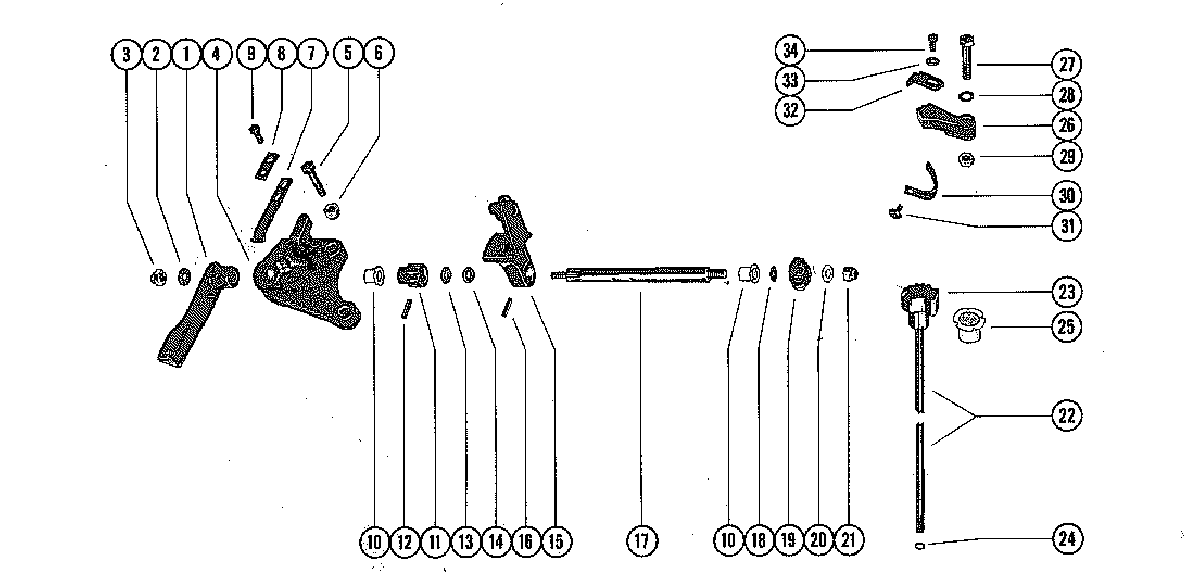

SHIFT CONTROL LINKAGE для Mercury - 200 1866496 THRU 2296266
-
№АртикулНазвание
-
159107 HANDLE, NYLON - SHIFT CONTROLHANDLE, NYLON - SHIFT CONTROL
-
212-29245 WASHER, SHIFT CONTROL HANDLEWASHER, SHIFT CONTROL HANDLE
-
311-826709109 NUT, SHIFT CONTROL HANDLE TO SHIFT SHAFTNUT, SHIFT CONTROL HANDLE TO SHIFT SHAFT
-
464122 BRACKET, MOUNTING - SHIFT SHAFTBRACKET, MOUNTING - SHIFT SHAFT
-
510-56500 SCREW, MOUNTING BRACKET TO POWERHEAD PLATE (1 1/4")SCREW, MOUNTING BRACKET TO POWERHEAD PLATE (1 1/4")
-
611-20184 NUT, MOUNTING BRACKET SCREWNUT, MOUNTING BRACKET SCREW
-
724-39627 SPRING, DETENT - MOUNTING BRACKETSPRING, DETENT - MOUNTING BRACKET
-
839601 PLATE, DETENT SPRINGPLATE, DETENT SPRING
-
910-69022 SCREW, PLATE AND SPRING TO MOUNTING BRACKET (1/2")SCREW, PLATE AND SPRING TO MOUNTING BRACKET (1/2")
-
1023-30678 BUSHING, NYLON - SHIFT SHAFTBUSHING, NYLON - SHIFT SHAFT
-
1139588 CAM, DETENT - SHIFT SHAFTCAM, DETENT - SHIFT SHAFT
-
1217-25905 PIN, RILL - DETENT CAM TO SHIFT SHAFTPIN, RILL - DETENT CAM TO SHIFT SHAFT
-
1313-36206 WASHER, WAVE - SHIFT SHAFTWASHER, WAVE - SHIFT SHAFT
-
1412-20553 WASHER, SHIFT SHAFTWASHER, SHIFT SHAFT
-
1539415 LEVER, SHIFT CONTROLLEVER, SHIFT CONTROL
-
1617-25905 PIN, ROLL - SHIFT CONTROL LEVER TO SHIFT SHAFTPIN, ROLL - SHIFT CONTROL LEVER TO SHIFT SHAFT
-
1739632 SHAFT, SHIFT (HORIZONTAL)SHAFT, SHIFT (HORIZONTAL)
-
1815-39952A1 SHIM, SECTOR GEAR TO NYLON BUSHING(.002-10-15)SHIM, SECTOR GEAR TO NYLON BUSHING(.002-10-15)
-
1943-30802 GEAR, SECTOR, SHIFT SHAFTGEAR, SECTOR, SHIFT SHAFT
-
2012-29245 WASHER, SHIFT SHAFTWASHER, SHIFT SHAFT
-
2111-8267089 NUT, SECTOR GEAR TO SHIFT SHAFTNUT, SECTOR GEAR TO SHIFT SHAFT
-
2261009A2 SHIFT CONTROL SHAFT ASSEMBLY, VERTICALSHIFT CONTROL SHAFT ASSEMBLY, VERTICAL
-
2343-39477 GEAR, SECTOR - SHIFT CONTROL SHAFTGEAR, SECTOR - SHIFT CONTROL SHAFT
-
2425-38933 "O" RING, SHIFT CONTROL SHAFT"O" RING, SHIFT CONTROL SHAFT
-
2523-30677 BUSHING, NYLON - SHIFT CONTROL SHAFTBUSHING, NYLON - SHIFT CONTROL SHAFT
-
2639486 FOLLOWER, NEUTRAL SPEED LIMITERFOLLOWER, NEUTRAL SPEED LIMITER
-
2658979 FOLLOWER, NEUTRAL SPEED LIMITER
SERIAL 00000000-02189600FOLLOWER, NEUTRAL SPEED LIMITER
SERIAL 00000000-02189600 -
2658979 FOLLOWER, NEUTRAL SPEED LIMITER
SERIAL 02189601-09999999FOLLOWER, NEUTRAL SPEED LIMITER
SERIAL 02189601-09999999 -
2710-24644 SCREW, FOLLOWER TO POWERHEAD MOUNTING PLATE (1 3/8")SCREW, FOLLOWER TO POWERHEAD MOUNTING PLATE (1 3/8")
-
2815-28212 SHIM, LIMITER FOLLOWER SCREWSHIM, LIMITER FOLLOWER SCREW
-
2911-20184 NUT, LIMITER FOLLOWER SCREWNUT, LIMITER FOLLOWER SCREW
-
3024-39675 SPRING, NEUTRAL SPEED LIMITER FOLLOWERSPRING, NEUTRAL SPEED LIMITER FOLLOWER
-
3110-62568 SCREW, SPRING TO LIMITER FOLLOWERSCREW, SPRING TO LIMITER FOLLOWER
-
3272857 STOP, OVER-SPEED LIMITER
SERIAL 02189601-09999999STOP, OVER-SPEED LIMITER
SERIAL 02189601-09999999 -
3312-24676 WASHER, LIMITER STOP SCREW
SERIAL 02189601-09999999WASHER, LIMITER STOP SCREW
SERIAL 02189601-09999999 -
3410-35400 SCREW, LIMITER STOP TO FOLLOWER (7/16")
SERIAL 02189601-09999999SCREW, LIMITER STOP TO FOLLOWER (7/16")
SERIAL 02189601-09999999
