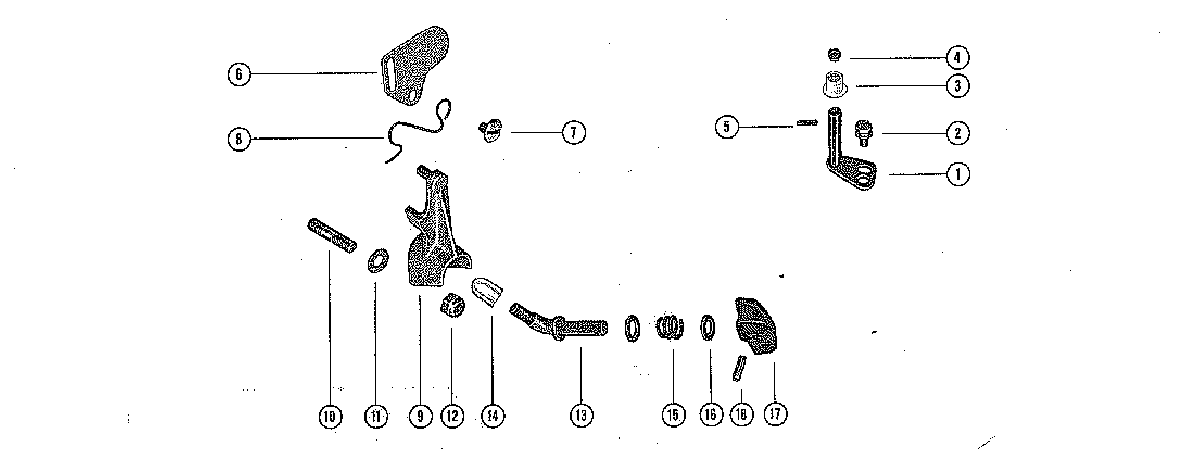

CARBURETOR CHOKE LINKAGE для Mercury - 200 1866496 THRU 2296266
-
№АртикулНазвание
-
120596A3 THROTTLE LEVER ASSEMBLYTHROTTLE LEVER ASSEMBLY
-
210-29239 SCREW, THROTTLE LEVER TO CARBURETOR (1/2")SCREW, THROTTLE LEVER TO CARBURETOR (1/2")
-
323-35040 BUSHING, NYLON - THROTTLE LEVERBUSHING, NYLON - THROTTLE LEVER
-
439769 EYELET, THROTTLE LEVEREYELET, THROTTLE LEVER
-
517-23757 PIN, ROLL - THROTTLE LEVERPIN, ROLL - THROTTLE LEVER
-
628087 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
710-20578 SCREW, CHOKE SHUTTER TO CARBURETORSCREW, CHOKE SHUTTER TO CARBURETOR
-
824-20579 SPRING, CHOKE SHUTTER TO LEVERSPRING, CHOKE SHUTTER TO LEVER
-
939489 LEVER, CHOKE SHUTTERLEVER, CHOKE SHUTTER
-
1016-20581 STUD, CHOKE SHUTTER LEVER TO CARBURETORSTUD, CHOKE SHUTTER LEVER TO CARBURETOR
-
1113-29402 WASHER, WAVE - CHOKE SHUTTER LEVER STUDWASHER, WAVE - CHOKE SHUTTER LEVER STUD
-
1211-8267089 NUT, CHOKE SHUTTER LEVER STUDNUT, CHOKE SHUTTER LEVER STUD
-
1339600 SHAFT, CHOKESHAFT, CHOKE
-
1426852 CAP, NYLON - CHOKE SHAFTCAP, NYLON - CHOKE SHAFT
-
1524-30947 SPRING, TENSION - CHOKE SHAFTSPRING, TENSION - CHOKE SHAFT
-
1612-39595 WASHER, NYLON - CHOKE SHAFTWASHER, NYLON - CHOKE SHAFT
-
1612-39595 WASHER, NYLON - CHOKE SHAFTWASHER, NYLON - CHOKE SHAFT
-
1739055 KNOB, CHOKEKNOB, CHOKE
-
1817-22896 PIN, ROLL - CHOKE KNOB TO CHOKE SHAFTPIN, ROLL - CHOKE KNOB TO CHOKE SHAFT
