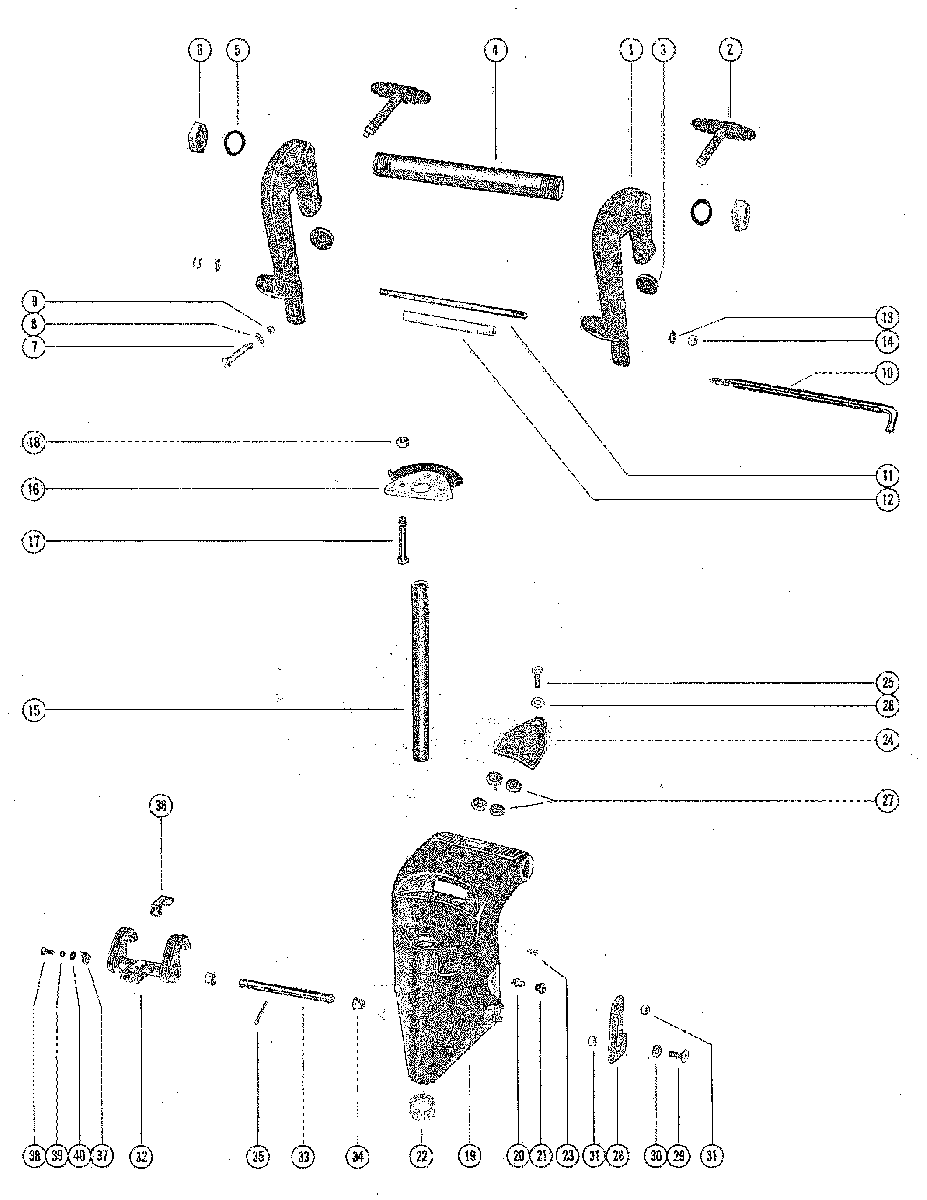

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 200 7012358 THRU 7098522

  • №
    Артикул
    Название
  • 1
    1427-5632A3 CLAMP BRACKET ASSEMBLY
    UNITED STATES 4102789 AND BELOW
    AUSTRALIA 8026164 AND BELOW
    BELGIUM 9070128 AND BELOW
    CANADA 7044782 AND BELOW
    CLAMP BRACKET ASSEMBLY
    UNITED STATES 4102789 AND BELOW
    AUSTRALIA 8026164 AND BELOW
    BELGIUM 9070128 AND BELOW
    CANADA 7044782 AND BELOW
    0 ₽
  • 2
    22477A4 THUMB SCREW ASSEMBLY
    UNITED STATES 4102789 AND BELOW
    AUSTRALIA 8026164 AND BELOW
    BELGIUM 9070128 AND BELOW
    CANADA 7044782 AND BELOW
    THUMB SCREW ASSEMBLY
    UNITED STATES 4102789 AND BELOW
    AUSTRALIA 8026164 AND BELOW
    BELGIUM 9070128 AND BELOW
    CANADA 7044782 AND BELOW
    0 ₽
  • 3
    12-26227 WASHER, THUMB SCREW
    UNITED STATES 4102789 AND BELOW
    AUSTRALIA 8026164 AND BELOW
    BELGIUM 9070128 AND BELOW
    CANADA 7044782 AND BELOW
    WASHER, THUMB SCREW
    UNITED STATES 4102789 AND BELOW
    AUSTRALIA 8026164 AND BELOW
    BELGIUM 9070128 AND BELOW
    CANADA 7044782 AND BELOW
    0 ₽
  • 1
    1427-5632A3 CLAMP BRACKET ASSEMBLY
    UNITED STATES 4102790 THRU 4351589
    AUSTRALIA 8026165 THRU 8036049
    BELGIUM 9070129 THRU 9104813
    CANADA 7044783 THRU 7067847
    CLAMP BRACKET ASSEMBLY
    UNITED STATES 4102790 THRU 4351589
    AUSTRALIA 8026165 THRU 8036049
    BELGIUM 9070129 THRU 9104813
    CANADA 7044783 THRU 7067847
    0 ₽
  • 2
    10-77190A3 THUMB SCREW ASSEMBLY
    UNITED STATES 4102790 THRU 4351589
    AUSTRALIA 8026165 THRU 8036049
    BELGIUM 9070129 THRU 9104813
    CANADA 7044783 THRU 7067847
    THUMB SCREW ASSEMBLY
    UNITED STATES 4102790 THRU 4351589
    AUSTRALIA 8026165 THRU 8036049
    BELGIUM 9070129 THRU 9104813
    CANADA 7044783 THRU 7067847
    3 270 ₽
  • 3
    12-26227 WASHER, THUMB SCREW
    UNITED STATES 4102790 THRU 4351589
    AUSTRALIA 8026165 THRU 8036049
    BELGIUM 9070129 THRU 9104813
    CANADA 7044783 THRU 7067847
    WASHER, THUMB SCREW
    UNITED STATES 4102790 THRU 4351589
    AUSTRALIA 8026165 THRU 8036049
    BELGIUM 9070129 THRU 9104813
    CANADA 7044783 THRU 7067847
    0 ₽
  • 1
    1427-5632A3 CLAMP BRACKET ASSEMBLY
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    CLAMP BRACKET ASSEMBLY
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    0 ₽
  • 2
    10-77190A3 THUMB SCREW ASSEMBLY
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    THUMB SCREW ASSEMBLY
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    3 270 ₽
  • 4
    74249 TILT TUBE, CLAMP BRACKET
    UNITED STATES 4102789 AND BELOW
    AUSTRALIA 8026164 AND BELOW
    BELGIUM 9070128 AND BELOW
    CANADA 7044782 AND BELOW
    TILT TUBE, CLAMP BRACKET
    UNITED STATES 4102789 AND BELOW
    AUSTRALIA 8026164 AND BELOW
    BELGIUM 9070128 AND BELOW
    CANADA 7044782 AND BELOW
    0 ₽
  • 4
    74249 TILT TUBE, CLAMP BRACKET
    UNITED STATES 4102790 AND UP
    AUSTRALIA 8026165 AND UP
    BELGIUM 9070129 AND UP
    CANADA 7044783 AND UP
    TILT TUBE, CLAMP BRACKET
    UNITED STATES 4102790 AND UP
    AUSTRALIA 8026165 AND UP
    BELGIUM 9070129 AND UP
    CANADA 7044783 AND UP
    0 ₽
  • 5
    12-52864 SHIM, CLAMP BRACKET TILT TUBE
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    SHIM, CLAMP BRACKET TILT TUBE
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    0 ₽
  • 5
    12-71421 WASHER, CLAMP BRACKET TILT TUBE
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    WASHER, CLAMP BRACKET TILT TUBE
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    120 ₽
  • 6
    11-858869 NUT, TILT TUBE FASTENING
    UNITED STATES 4102789 AND BELOW
    AUSTRALIA 8026164 AND BELOW
    BELGIUM 9070128 AND BELOW
    CANADA 7044782 AND BELOW
    NUT, TILT TUBE FASTENING
    UNITED STATES 4102789 AND BELOW
    AUSTRALIA 8026164 AND BELOW
    BELGIUM 9070128 AND BELOW
    CANADA 7044782 AND BELOW
    330 ₽
  • 6
    11-71019 NUT, TILT TUBE FASTENING
    UNITED STATES 4102790 AND UP
    AUSTRALIA 8026165 AND UP
    BELGIUM 9070129 AND UP
    CANADA 7044783 AND UP
    NUT, TILT TUBE FASTENING
    UNITED STATES 4102790 AND UP
    AUSTRALIA 8026165 AND UP
    BELGIUM 9070129 AND UP
    CANADA 7044783 AND UP
    0 ₽
  • 7
    10-67979 BOLT, CLAMP BRACKET TO TRANSOM (2 3/4")
    BOLT, CLAMP BRACKET TO TRANSOM (2 3/4")
    0 ₽
  • 8
    12-67981 WASHER, CLAMP BRACKET SCREW
    WASHER, CLAMP BRACKET SCREW
    210 ₽
  • 9
    11-82670910 NUT, CLAMP BRACKET SCREW
    NUT, CLAMP BRACKET SCREW
    220 ₽
  • 10
    17-56373A2 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
    2 180 ₽
  • 11
    16-59620 STUD, CLAMP BRACKET (8")
    STUD, CLAMP BRACKET (8")
    0 ₽
  • 12
    23-59621T SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
    0 ₽
  • 13
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
    140 ₽
  • 14
    11-28770 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
    110 ₽
  • 15
    17-39585 SWIVEL PIN
    UNITED STATES 3755884 AND BELOW
    AUSTRALIA 8013704 AND BELOW
    BELGIUM 9035128 AND BELOW
    CANADA 7024647 AND BELOW
    SWIVEL PIN
    UNITED STATES 3755884 AND BELOW
    AUSTRALIA 8013704 AND BELOW
    BELGIUM 9035128 AND BELOW
    CANADA 7024647 AND BELOW
    0 ₽
  • 15
    66557 SWIVEL PIN
    UNITED STATES 3755885 AND UP
    AUSTRALIA 8013705 AND UP
    BELGIUM 9035129 AND UP
    CANADA 7024648 AND UP
    SWIVEL PIN
    UNITED STATES 3755885 AND UP
    AUSTRALIA 8013705 AND UP
    BELGIUM 9035129 AND UP
    CANADA 7024648 AND UP
    0 ₽
  • 16
    33423 CO-PILOT DISC
    CO-PILOT DISC
    0 ₽
  • 17
    10-26132 SCREW, CO-PILOT DISC TO SADDLE (2 1/2")
    SCREW, CO-PILOT DISC TO SADDLE (2 1/2")
    0 ₽
  • 18
    11-29250 NUT, CO-PILOT DISC TO SADDLE SCREW
    NUT, CO-PILOT DISC TO SADDLE SCREW
    180 ₽
  • 19
    1461-6667A1 SWIVEL BRACKET ASSEMBLY
    UNITED STATES 3755884 AND BELOW
    AUSTRALIA 8013704 AND BELOW
    BELGIUM 9035128 AND BELOW
    CANADA 7024647 AND BELOW
    SWIVEL BRACKET ASSEMBLY
    UNITED STATES 3755884 AND BELOW
    AUSTRALIA 8013704 AND BELOW
    BELGIUM 9035128 AND BELOW
    CANADA 7024647 AND BELOW
    0 ₽
  • 19
    1461-6667A1 SWIVEL BRACKET ASSEMBLY
    UNITED STATES 3755885 THRU 4351589
    AUSTRALIA 8013705 THRU 8036049
    BELGIUM 9035129 THRU 9104813
    CANADA 7024648 THRU 7067847
    SWIVEL BRACKET ASSEMBLY
    UNITED STATES 3755885 THRU 4351589
    AUSTRALIA 8013705 THRU 8036049
    BELGIUM 9035129 THRU 9104813
    CANADA 7024648 THRU 7067847
    0 ₽
  • 19
    1461-6667A1 SWIVEL BRACKET ASSEMBLY
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    SWIVEL BRACKET ASSEMBLY
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    0 ₽
  • 20
    22-74036 FITTING, GREASE - SWIVEL BRACKET
    UNITED STATES 3755885 THRU 4351589
    AUSTRALIA 8013705 THRU 8036049
    BELGIUM 9035129 THRU 9104813
    CANADA 7024648 THRU 7067847
    FITTING, GREASE - SWIVEL BRACKET
    UNITED STATES 3755885 THRU 4351589
    AUSTRALIA 8013705 THRU 8036049
    BELGIUM 9035129 THRU 9104813
    CANADA 7024648 THRU 7067847
    340 ₽
  • 20
    22-74036 FITTING, GREASE - SWIVEL BRACKET
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    FITTING, GREASE - SWIVEL BRACKET
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    340 ₽
  • 21
    19-77633Q LUBRICAN, GREASE FITTING
    UNITED STATES 3755885 THRU 4351589
    AUSTRALIA 8013705 THRU 8036049
    BELGIUM 9035129 THRU 9104813
    CANADA 7024648 THRU 7067847
    LUBRICAN, GREASE FITTING
    UNITED STATES 3755885 THRU 4351589
    AUSTRALIA 8013705 THRU 8036049
    BELGIUM 9035129 THRU 9104813
    CANADA 7024648 THRU 7067847
    450 ₽
  • 22
    23-64651 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
    0 ₽
  • 23
    10-36398 SCREW, DWIVEL BRACKET
    SCREW, DWIVEL BRACKET
    0 ₽
  • 24
    73014A1 PLATE, CLAMP - CO-PILOT
    UNITED STATES 4403786 AND BELOW
    AUSTRALIA 8039074 AND BELOW
    BELGIUM 9122764 AND BELOW
    CANADA 7077247 AND BELOW
    PLATE, CLAMP - CO-PILOT
    UNITED STATES 4403786 AND BELOW
    AUSTRALIA 8039074 AND BELOW
    BELGIUM 9122764 AND BELOW
    CANADA 7077247 AND BELOW
    0 ₽
  • 25
    10-62055 SCREW, PLATE TO SWIVEL BRACKET (1 1/4")
    UNITED STATES 4403786 AND BELOW
    AUSTRALIA 8039074 AND BELOW
    BELGIUM 9122764 AND BELOW
    CANADA 7077247 AND BELOW
    SCREW, PLATE TO SWIVEL BRACKET (1 1/4")
    UNITED STATES 4403786 AND BELOW
    AUSTRALIA 8039074 AND BELOW
    BELGIUM 9122764 AND BELOW
    CANADA 7077247 AND BELOW
    200 ₽
  • 24
    73014A1 PLATE ASSEMBLY, CO-PILOT
    UNITED STATES 4403787 AND UP
    AUSTRALIA 8039075 AND UP
    BELGIUM 9122765 AND UP
    CANADA 7077248 AND UP
    PLATE ASSEMBLY, CO-PILOT
    UNITED STATES 4403787 AND UP
    AUSTRALIA 8039075 AND UP
    BELGIUM 9122765 AND UP
    CANADA 7077248 AND UP
    0 ₽
  • 25
    10-69021 SCREW, PLATE TO SWIVEL BRACKET (1 1/4")
    UNITED STATES 4403787 AND UP
    AUSTRALIA 8039075 AND UP
    BELGIUM 9122765 AND UP
    CANADA 7077248 AND UP
    SCREW, PLATE TO SWIVEL BRACKET (1 1/4")
    UNITED STATES 4403787 AND UP
    AUSTRALIA 8039075 AND UP
    BELGIUM 9122765 AND UP
    CANADA 7077248 AND UP
    0 ₽
  • 26
    12-56720 WASHER, CLAMP PLATE SCREW
    WASHER, CLAMP PLATE SCREW
    140 ₽
  • 27
    20203 DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
    DISC, FRICTION - CLAMP PLATE AND SWIVEL BRACKET
    630 ₽
  • 28
    63310A1 LEVER ASSEMBLY, TILT STOP
    LEVER ASSEMBLY, TILT STOP
    0 ₽
  • 29
    10-41433 SCREW, RETAINING - LEVER TO SWIVEL BRACKET
    SCREW, RETAINING - LEVER TO SWIVEL BRACKET
    0 ₽
  • 30
    13-31030 WASHER, WAVE - TILT STOP LEVER SCREW
    WASHER, WAVE - TILT STOP LEVER SCREW
    140 ₽
  • 31
    11-826709109 NUT, TILT STOP LEVER SCREW
    NUT, TILT STOP LEVER SCREW
    220 ₽
  • 32
    61012 LEVER, REVERSE LOCK
    LEVER, REVERSE LOCK
    0 ₽
  • 33
    26092 ROD, REVERSE LOCK LEVER
    ROD, REVERSE LOCK LEVER
    0 ₽
  • 34
    23-26841 BUSHING, NYLON - REVERSE LOCK LEVER ROD
    BUSHING, NYLON - REVERSE LOCK LEVER ROD
    450 ₽
  • 35
    18-45882 COTTER PIN, REVERSE LOCK LEVER TO ROD
    COTTER PIN, REVERSE LOCK LEVER TO ROD
    280 ₽
  • 36
    61007 RETAINER, ROD - REVERSE LOCK
    RETAINER, ROD - REVERSE LOCK
    640 ₽
  • 37
    70241 STOP, REVERSE LOCK
    UNITED STATES 4102790 AND UP
    AUSTRALIA 8026165 AND UP
    BELGIUM 9070129 AND UP
    CANADA 7044783 AND UP
    STOP, REVERSE LOCK
    UNITED STATES 4102790 AND UP
    AUSTRALIA 8026165 AND UP
    BELGIUM 9070129 AND UP
    CANADA 7044783 AND UP
    0 ₽
  • 38
    10-71056 SCREW, REVERSE STOP TO SWIVEL BRACKET
    UNITED STATES 4102790 AND UP
    AUSTRALIA 8026165 AND UP
    BELGIUM 9070129 AND UP
    CANADA 7044783 AND UP
    SCREW, REVERSE STOP TO SWIVEL BRACKET
    UNITED STATES 4102790 AND UP
    AUSTRALIA 8026165 AND UP
    BELGIUM 9070129 AND UP
    CANADA 7044783 AND UP
    0 ₽
  • 39
    13-26992 LOCKWASHER, REVERSE STOP SCREW
    UNITED STATES 4102790 AND UP
    AUSTRALIA 8026165 AND UP
    BELGIUM 9070129 AND UP
    CANADA 7044783 AND UP
    LOCKWASHER, REVERSE STOP SCREW
    UNITED STATES 4102790 AND UP
    AUSTRALIA 8026165 AND UP
    BELGIUM 9070129 AND UP
    CANADA 7044783 AND UP
    70 ₽
  • 40
    12-71055 WASHER, REVERSE STOP SCREW
    UNITED STATES 4102790 AND UP
    AUSTRALIA 8026165 AND UP
    BELGIUM 9070129 AND UP
    CANADA 7044783 AND UP
    WASHER, REVERSE STOP SCREW
    UNITED STATES 4102790 AND UP
    AUSTRALIA 8026165 AND UP
    BELGIUM 9070129 AND UP
    CANADA 7044783 AND UP
    130 ₽

Все узлы модели:
