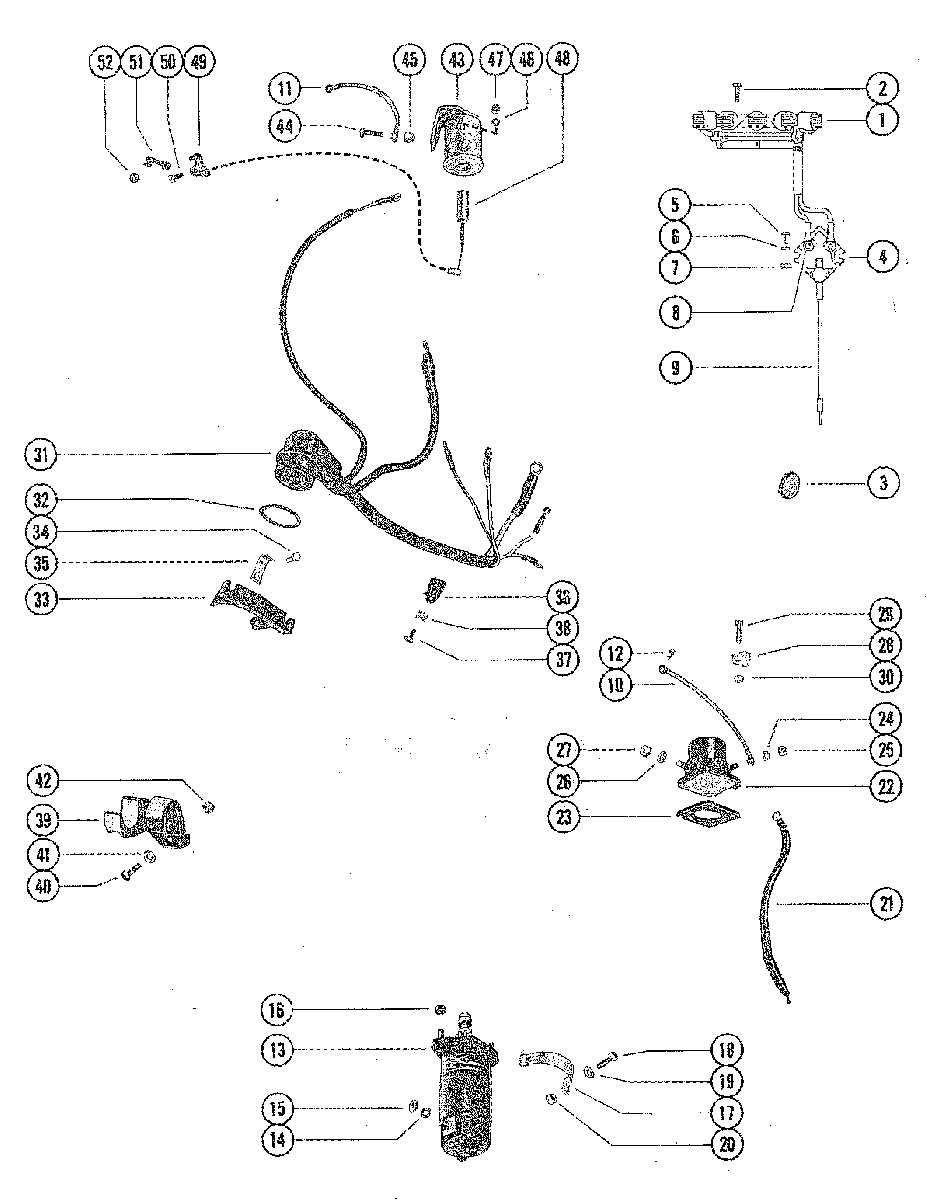

ELECTRIC COMPONENTS для Mercury - 200 7012358 THRU 7098522
-
№АртикулНазвание
-
174367A9 LIGHTING STATOR ASSEMBLYLIGHTING STATOR ASSEMBLY
-
210-88447 SCREW, LIGHTING STATOR ATTACHING (1 5/8")SCREW, LIGHTING STATOR ATTACHING (1 5/8")
-
210-66707 SCREW, LIGHTING STATOR ATTACHING (7/8")SCREW, LIGHTING STATOR ATTACHING (7/8")
-
319-75045 PLUG, BOTTOM COWLPLUG, BOTTOM COWL
-
48M0058226 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
510-25764 SCREW, RECTIFIER TO REAR BRACKET (1/2")SCREW, RECTIFIER TO REAR BRACKET (1/2")
-
623-62769 SPACER, RECTIFIER SCREWSPACER, RECTIFIER SCREW
-
711-27164 NUT, RECTIFIER SCREWNUT, RECTIFIER SCREW
-
811-45076 NUT, RECTIFIER TERMINALSNUT, RECTIFIER TERMINALS
-
984-61393A7 WIRE ASSEMBLY, RECTIFIER TO STARTER SOLENOID (RED)WIRE ASSEMBLY, RECTIFIER TO STARTER SOLENOID (RED)
-
1084-60466A21 WIRE ASSEMBLY, STARTER SOLENOID TO GROUND (BLACK)WIRE ASSEMBLY, STARTER SOLENOID TO GROUND (BLACK)
-
1184-60871A14 WIRE ASSEMBLY, CHOKE SOLENOID TO SWITCH BOX PLATE (BLACK0)WIRE ASSEMBLY, CHOKE SOLENOID TO SWITCH BOX PLATE (BLACK0)
-
1210-62568 SCREW, WIRE TO SWITCH BOX PLATE (3/8")SCREW, WIRE TO SWITCH BOX PLATE (3/8")
-
1350-97949A1 STARTER MOTOR
SEE PAGE 26E, SECTION "E", FOR BREAKDOWN OF STARTER MOTORSTARTER MOTOR
SEE PAGE 26E, SECTION "E", FOR BREAKDOWN OF STARTER MOTOR -
1413-26992 LOCKWASHER, STARTER MOTOR TERMINALLOCKWASHER, STARTER MOTOR TERMINAL
-
1511-20088 NUT, STARTER MOTOR TERMINAL (1/4 - 28)NUT, STARTER MOTOR TERMINAL (1/4 - 28)
-
1611-8267089 NUT, STARTER MOTOR STUDS (1/4 - 28)NUT, STARTER MOTOR STUDS (1/4 - 28)
-
1754-47993 CLAMP, STARTER MOTOR FASTENINGCLAMP, STARTER MOTOR FASTENING
-
1810-22483 SCREW, STARTER MOTOR CLAMP TO CYLINDER BLOCK (1 1/8")SCREW, STARTER MOTOR CLAMP TO CYLINDER BLOCK (1 1/8")
-
1912-46897 WASHER, STARTER MOTOR CLAMP SCREWWASHER, STARTER MOTOR CLAMP SCREW
-
2011-8267089 NUT, STARTER MOTOR CLAMP SCREW (1/4 - 28)NUT, STARTER MOTOR CLAMP SCREW (1/4 - 28)
-
2184-65063 CABLE, JUMPER - STARTER MOTOR TO STARTER SOLENOIDCABLE, JUMPER - STARTER MOTOR TO STARTER SOLENOID
-
2247886T SOLENOID, STARTERSOLENOID, STARTER
-
2327-47829 GASKET, STARTER SOLENOIDGASKET, STARTER SOLENOID
-
2413-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
-
2511-68219 NUT, STARTER SOLENOID TERMINAL (10-32)NUT, STARTER SOLENOID TERMINAL (10-32)
-
2613-20202 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
-
2711-22053 NUT, STARTER SOLENOID TERMINAL (5/16 - 24)NUT, STARTER SOLENOID TERMINAL (5/16 - 24)
-
2854-47830 CLAMP, NYLON - STARTER SOLENOID FASTENINGCLAMP, NYLON - STARTER SOLENOID FASTENING
-
2910-45862 SCREW, STARTER SOLENOID CLAMP TO CRANKCASE (7/8")SCREW, STARTER SOLENOID CLAMP TO CRANKCASE (7/8")
-
3011-46438 NUT, STARTER SOLENOID CLAMP SCREWNUT, STARTER SOLENOID CLAMP SCREW
-
3184-74904A1 WIRING HARNESS, INTERNALWIRING HARNESS, INTERNAL
-
3224-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
3354-76368 CLAMP, INTERNAL WIRING HARNESS TO BOTTOM COWLCLAMP, INTERNAL WIRING HARNESS TO BOTTOM COWL
-
3410-61802 SCREW, LEAD WIRE AND HARNESS CLAMP TO BOTTOM COWL (7/8")SCREW, LEAD WIRE AND HARNESS CLAMP TO BOTTOM COWL (7/8")
-
3554-33361 CLAMP, LEAD WIRE FASTENING TO HARNESS CLAMPCLAMP, LEAD WIRE FASTENING TO HARNESS CLAMP
-
3654-23567 CLAMP, WIRING HARNESS TO CRANKCASE FLANGECLAMP, WIRING HARNESS TO CRANKCASE FLANGE
-
3710-69079 SCREW, WIRING HARNESS CLAMP FASTENING (7/16")SCREW, WIRING HARNESS CLAMP FASTENING (7/16")
-
388M0084613 "D" WASHER, WIRING HARNESS CLAMP"D" WASHER, WIRING HARNESS CLAMP
-
3947951 BRACKET, SUPPORT - EXTERNAL WIRING HARNESSBRACKET, SUPPORT - EXTERNAL WIRING HARNESS
-
4010-36137 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1")SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1")
-
4112-24664 WASHER, WIRING HARNESS SUPPORT SCREWWASHER, WIRING HARNESS SUPPORT SCREW
-
4211-20184 NUT, WIRING HARNESS SUPPORT SCREWNUT, WIRING HARNESS SUPPORT SCREW
-
4354292A6 CHOKE SOLENOIDCHOKE SOLENOID
-
4410-22956 SCREW, CHOKE SOLENOID TO FRONT COWL SUPPORT BRACKET (7/8")SCREW, CHOKE SOLENOID TO FRONT COWL SUPPORT BRACKET (7/8")
-
4511-20184 NUT, CHOKE SOLENOID SCREWNUT, CHOKE SOLENOID SCREW
-
4613-26996 LOCKWASHER, CHOKE SOLENOID TERMINALLOCKWASHER, CHOKE SOLENOID TERMINAL
-
4711-68219 NUT, CHOKE SOLENOID TERMINALNUT, CHOKE SOLENOID TERMINAL
-
4856074A10 PLUNGER ASSEMBLY, CHOKE SOLENOIDPLUNGER ASSEMBLY, CHOKE SOLENOID
-
4965108 LEVER, CHOKELEVER, CHOKE
-
5010-65109 SCREW, CHOKE LEVER TO CARBURETORSCREW, CHOKE LEVER TO CARBURETOR
-
5165107 LINK, CHOKELINK, CHOKE
-
5211-65110 NUT, LINK TO CHOKE LEVERNUT, LINK TO CHOKE LEVER
