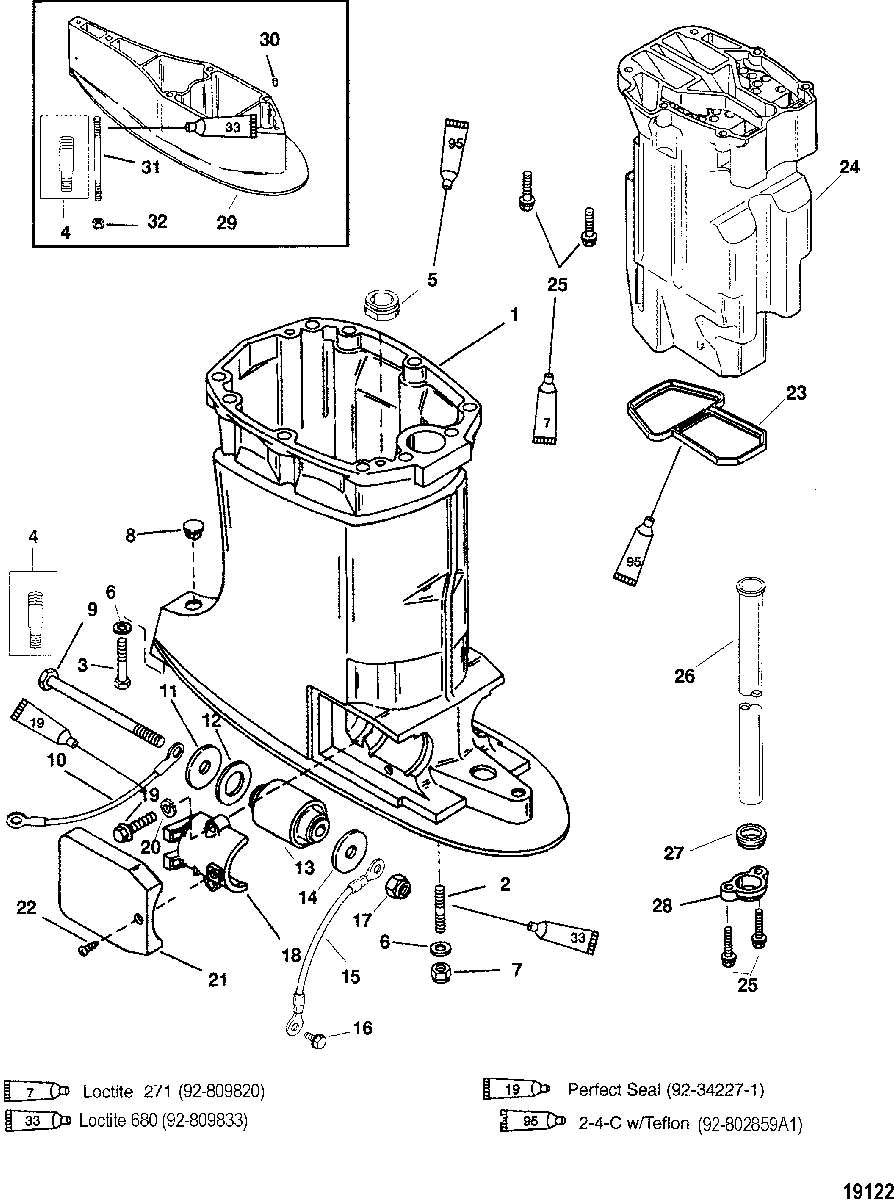

Driveshaft Housing and Exhaust Tube для Mercury - 225 (3.0L EFI) 0G760300 THRU 0T408999

‹-+›

№

Артикул

Название
1

3518-832937A06 HOUSING ASSEMBLY, Driveshaft
(LONG)

HOUSING ASSEMBLY, Driveshaft
(LONG)

200 070 ₽
1

3519-832938A06 HOUSING ASSEMBLY, Driveshaft
(X/XX-LONG)

HOUSING ASSEMBLY, Driveshaft
(X/XX-LONG)

237 970 ₽
2

16-8M0070951 STUD, (M12 x 52)
(LONG/X-LONG)

STUD, (M12 x 52)
(LONG/X-LONG)

1 010 ₽
3

10-82130130 SCREW, (M10 x 30)
(LONG/X-LONG) SN# 0G871322 & Below

SCREW, (M10 x 30)
(LONG/X-LONG) SN# 0G871322 & Below

1 220 ₽
3

10-857136 SCREW, (M12 x 35)
(LONG/X-LONG) SN# 0G871323 & Up

SCREW, (M12 x 35)
(LONG/X-LONG) SN# 0G871323 & Up

490 ₽
4

16-8M0036404 STEPPED STUD (54MM X 10/12)

STEPPED STUD (54MM X 10/12)

7 230 ₽
4

16-858570 STEPPED STUD (175MM X 10/12)

STEPPED STUD (175MM X 10/12)

7 990 ₽
5

25-8331231 GROMMET

GROMMET

630 ₽
6

12-856982 WASHER, (.500 x .810 x .090) Stainless Steel

WASHER, (.500 x .810 x .090) Stainless Steel

150 ₽
7

11-896895 NUT, (M12 x 1.75)

NUT, (M12 x 1.75)

670 ₽
8

19-64649 PLUG

PLUG

300 ₽
9

10-898834 SCREW, (M14 x 178)

SCREW, (M14 x 178)

2 160 ₽
10

88238A10 CABLE ASSEMBLY, Ground

CABLE ASSEMBLY, Ground

600 ₽
11

12-815432 WASHER, (.562 x 2.00 x .125)

WASHER, (.562 x 2.00 x .125)

680 ₽
12

12-8154331 WASHER, (1.25 x 2.00 x .19)

WASHER, (1.25 x 2.00 x .19)

430 ₽
13

8137711 MOUNT

MOUNT

11 910 ₽
14

12-825190 WASHER

WASHER

100 ₽
15

88238A10 CABLE ASSEMBLY, Ground

CABLE ASSEMBLY, Ground

600 ₽
16

10-41508 SCREW, (.250-20 x .500) Stainless Steel

SCREW, (.250-20 x .500) Stainless Steel

260 ₽
17

11-896602 NUT

NUT

430 ₽
18

879150A90 CLAMP

CLAMP

6 230 ₽
19

10-81893435 SCREW, (M8 x 35)

SCREW, (M8 x 35)

230 ₽
20

13-72521 LOCKWASHER, Internal Tooth

LOCKWASHER, Internal Tooth

110 ₽
21

879150A90 COVER, Black
(BLACK)

COVER, Black
(BLACK)

6 230 ₽
22

10-69079 SCREW, (#10-16 x .440)

SCREW, (#10-16 x .440)

100 ₽
23

8329321 SEAL

SEAL

3 450 ₽
24

833116A7 TUBE ASSEMBLY, Exhaust

TUBE ASSEMBLY, Exhaust

0 ₽
-

NSS NOT SOLD SEPARATE, Strainer

NOT SOLD SEPARATE, Strainer

0 ₽
25

10-81893435 SCREW, (M8 x 35)

SCREW, (M8 x 35)

230 ₽
26

32-8M0042785 TUBE, Water
(LONG)

TUBE, Water
(LONG)

4 230 ₽
26

32-8M0042786 TUBE, Water
(X-LONG)

TUBE, Water
(X-LONG)

6 530 ₽
26

32-8M0042787 TUBE, Water
(XX-LONG)

TUBE, Water
(XX-LONG)

12 820 ₽
27

832940001 SEAL

SEAL

600 ₽
28

8329391 CLAMP

CLAMP

790 ₽
29

8M0105088 SPACER
(BLACK)(XX-LONG)

SPACER
(BLACK)(XX-LONG)

31 970 ₽
30

17-43044 PIN, Dowel - Without Hole (.375 x .625)
(XX-LONG)

PIN, Dowel - Without Hole (.375 x .625)
(XX-LONG)

200 ₽
31

16-8M0008047 STUD, (M12 x 179)
(XX-LONG)

STUD, (M12 x 179)
(XX-LONG)

3 520 ₽
31

16-824118 STUD (M10 X 1.5 X 173)
(XX-LONG)

STUD (M10 X 1.5 X 173)
(XX-LONG)

0 ₽
32

11-400636 NUT (M10 X 1.5)
(XX-LONG)

NUT (M10 X 1.5)
(XX-LONG)

1 010 ₽
