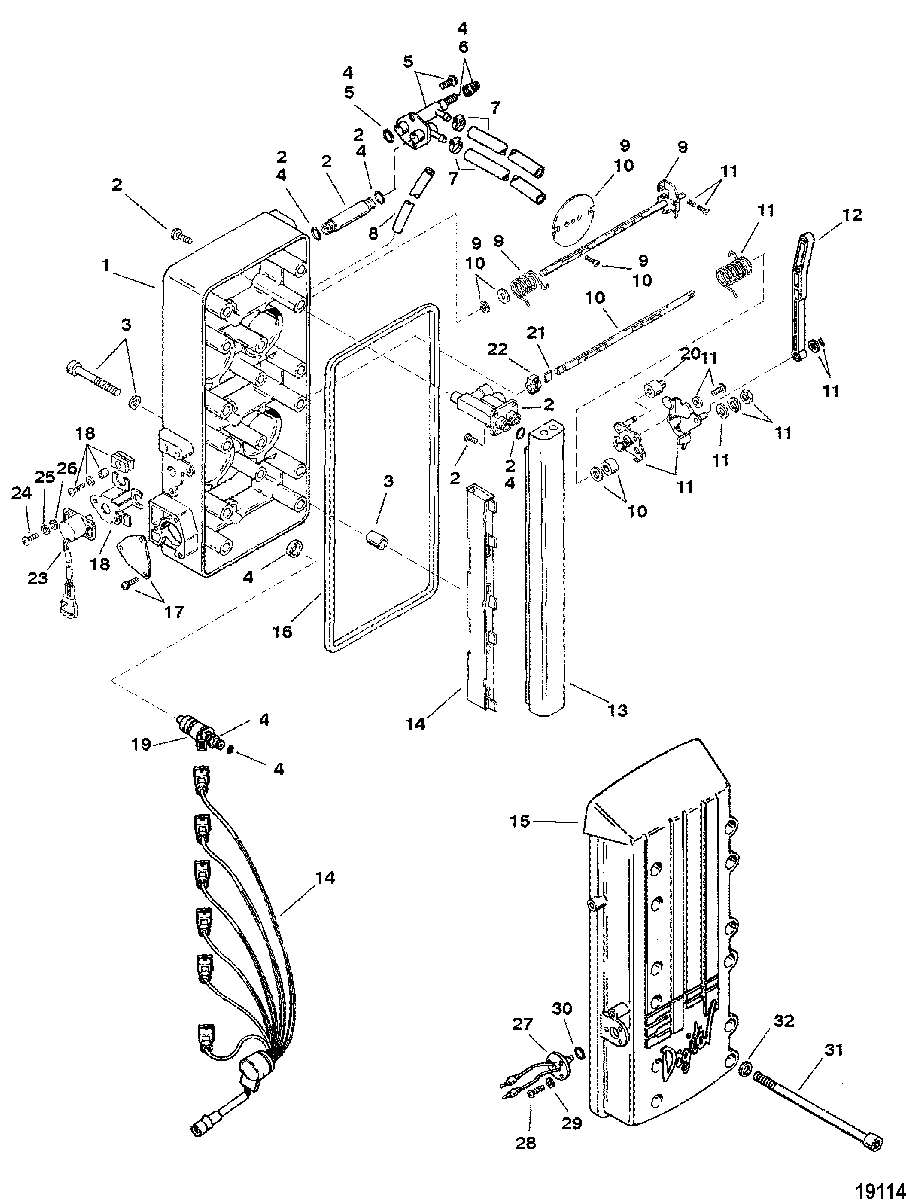

Fuel Management System для Mercury - 225 (3.0L EFI) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
-825818A14 MANAGEMENT ASSEMBLY, Fuel
(250 4 Shutter)MANAGEMENT ASSEMBLY, Fuel
(250 4 Shutter) -
-825818A14 MANAGEMENT ASSEMBLY, Fuel
(225 4 Shutter) SN# 0G960500 & UpMANAGEMENT ASSEMBLY, Fuel
(225 4 Shutter) SN# 0G960500 & Up -
-825818A12 MANAGEMENT ASSEMBLY, Fuel
(225 2 Shutter) SN# 0G960499 & BelowMANAGEMENT ASSEMBLY, Fuel
(225 2 Shutter) SN# 0G960499 & Below -
1827693T4 THROTTLE BODY
(4 SHUTTER)THROTTLE BODY
(4 SHUTTER) -
1827693T5 THROTTLE BODY
(2 SHUTTER)THROTTLE BODY
(2 SHUTTER) -
28090571 JOINT KIT, Fuel PipeJOINT KIT, Fuel Pipe
-
310-8276983 SCREW KITSCREW KIT
-
4150291 O-RING KITO-RING KIT
-
5814233T1 FMA JOINT KITFMA JOINT KIT
-
68090591 SCHRADER VALVE KITSCHRADER VALVE KIT
-
732-827694A02 TUBING KITTUBING KIT
-
832-897992A01 TUBING KITTUBING KIT
-
98090843 SHAFT, Throttle
(TOP-4 SHUTTER)SHAFT, Throttle
(TOP-4 SHUTTER) -
108090842 SHAFT KIT, Throttle
(BOTTOM)SHAFT KIT, Throttle
(BOTTOM) -
11827697A1 LEVER KIT, LinkLEVER KIT, Link
-
12154441 LINKLINK
-
138276991 FUEL RAILFUEL RAIL
-
1484-154432 HARNESS KITHARNESS KIT
-
158276921 COVERCOVER
-
1626-187921 SEALSEAL
-
17827696 RETAINER KITRETAINER KIT
-
18809093 BRACKET KIT, TPSBRACKET KIT, TPS
-
19805225A1 INJECTOR KITINJECTOR KIT
-
2067748 ROLLERROLLER
-
2128-89694 KEYKEY
-
22821153 COUPLINGCOUPLING
-
23821664 SENSOR, Throttle PositionSENSOR, Throttle Position
-
2410-4005685 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
2513-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
2612-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
2713221T01 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
2810-4005685 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
2913-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
3025-45711 O-RING, (.612 x .103)O-RING, (.612 x .103)
-
3110-40132 SCREW, (M8 x 125)SCREW, (M8 x 125)
-
3212-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
