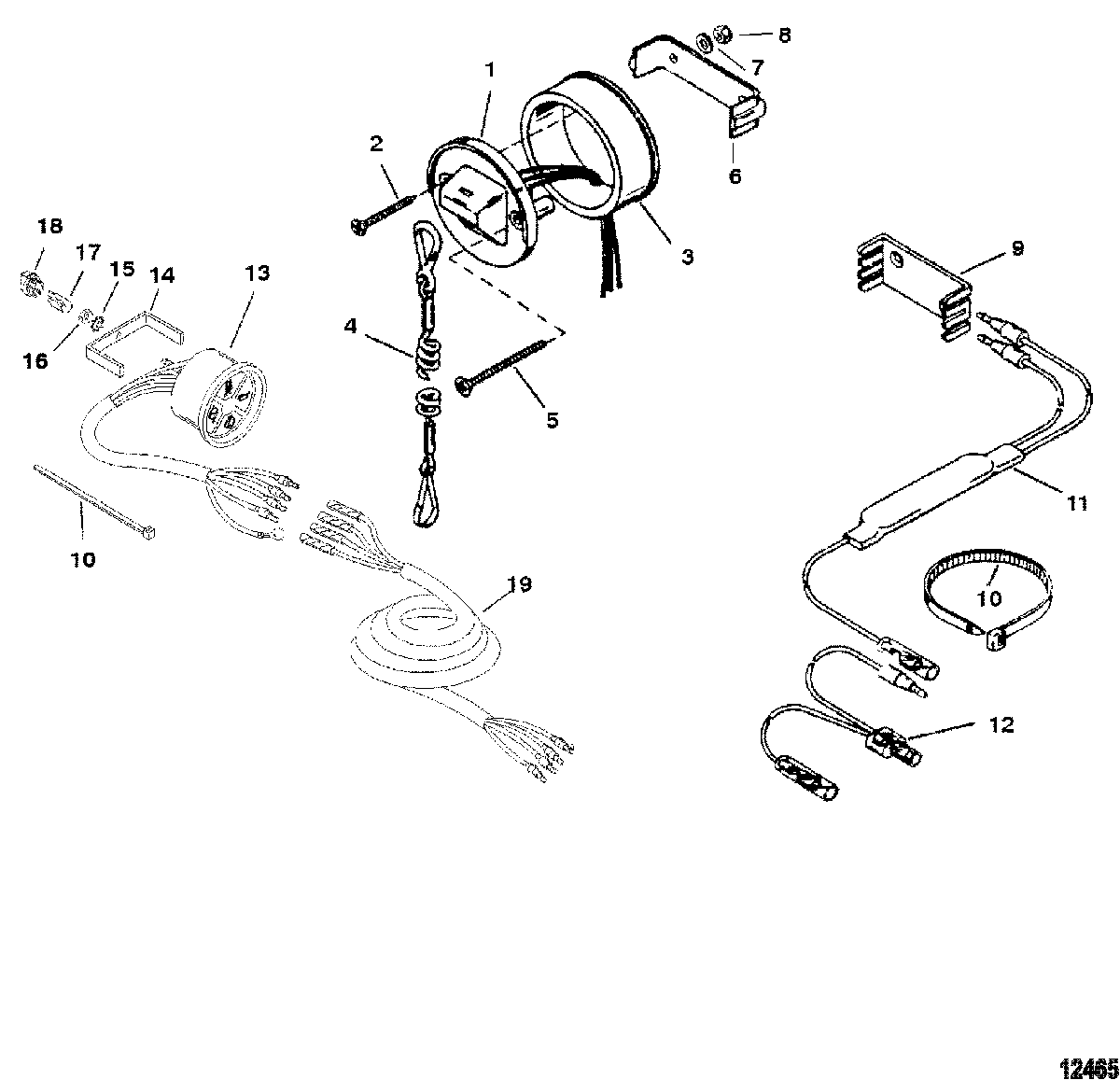

Instrumentation для Mercury - 225 (3.0L EFI) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
187-19674A1 SWITCH ASSEMBLY, LanyardSWITCH ASSEMBLY, Lanyard
-
210-18303 SCREW, (.190-16 x 1.750) Stainless SteelSCREW, (.190-16 x 1.750) Stainless Steel
-
3813679 ADAPTERADAPTER
-
48M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
510-32866 SCREW, (#10-32 x 2.00) Stainless Steel (10-32 X 2 IN.)SCREW, (#10-32 x 2.00) Stainless Steel (10-32 X 2 IN.)
-
618321 CLAMP, MountingCLAMP, Mounting
-
712-24676 WASHER, (.200 x .440 x .032)WASHER, (.200 x .440 x .032)
-
811-68219 NUT, (#10-32) Stainless Steel (10-32)NUT, (#10-32) Stainless Steel (10-32)
-
979146 RETAINERRETAINER
-
1054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1184-898289A72 DIODE ASSEMBLYDIODE ASSEMBLY
-
1284-11149A2 CABLE ASSEMBLY, (6.00 Inches) (6 IN.)CABLE ASSEMBLY, (6.00 Inches) (6 IN.)
-
1379-859698A1 WARNING GAUGE KITWARNING GAUGE KIT
-
14850020 CLAMPCLAMP
-
1513-825361 LOCKWASHER, Star (#8)LOCKWASHER, Star (#8)
-
1611-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
1788-15163 LAMPLAMP
-
1888-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
1984-827752A1 CABLE ASSEMBLY, (20.00 Feet)CABLE ASSEMBLY, (20.00 Feet)
