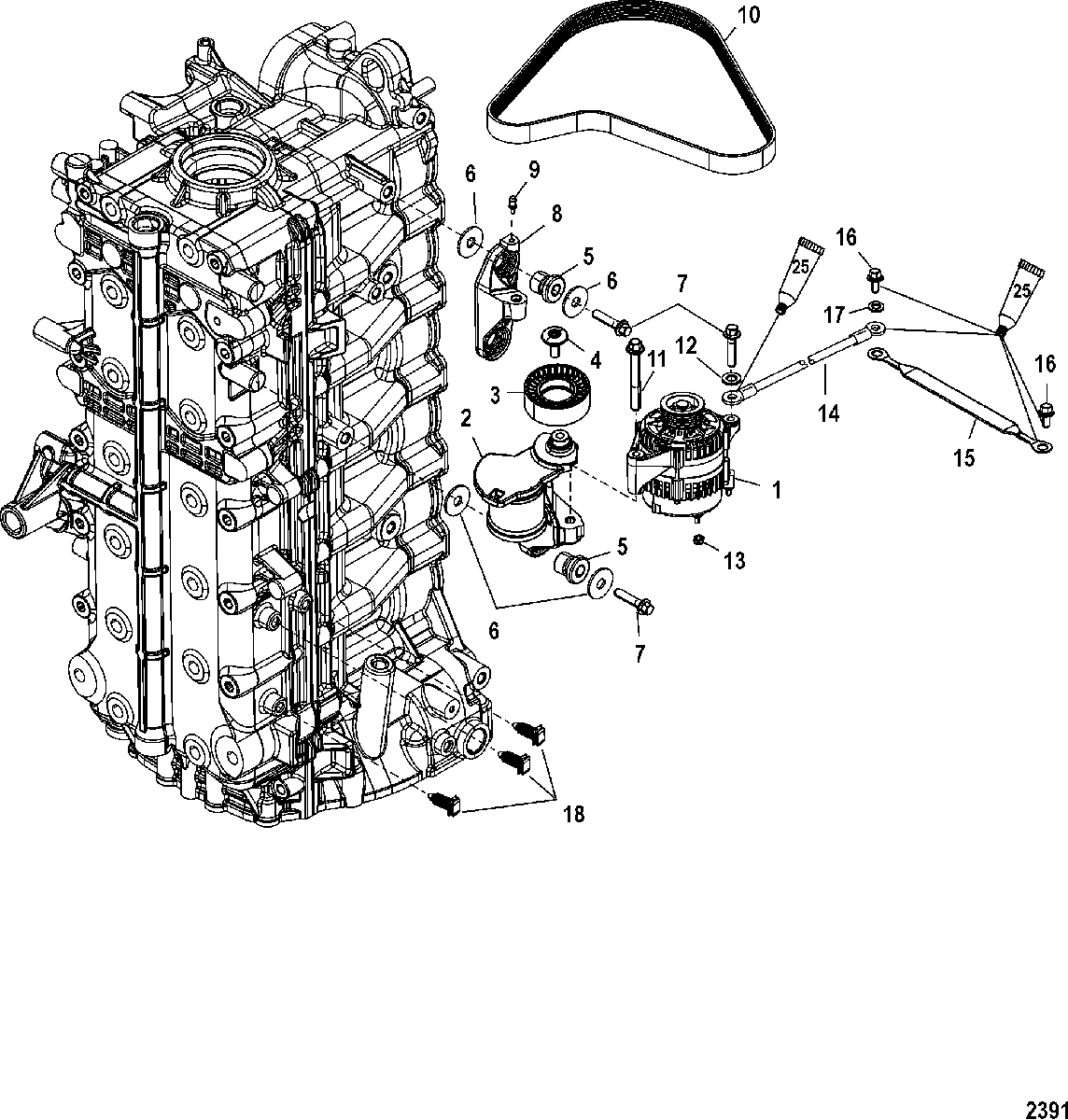

Alternator/Belt Tensioner Mounting для Mercury - 225 VERADO (4-STROKE)(6 CYL.) 0P409357 THRU 0P464487
-
№АртикулНазвание
-
1892940T02 ALTERNATOR, 70 AmpereALTERNATOR, 70 Ampere
-
28M0101707 BELT TENSIONERBELT TENSIONER
-
38M6003035 PULLEYPULLEY
-
410-885349501 SCREWSCREW
-
523-855729 MOUNTMOUNT
-
612-845998 WASHER, (.406 x 1.250 x .089)WASHER, (.406 x 1.250 x .089)
-
710-8M0103823 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
888535303S BRACKETBRACKET
-
917-888517 PINPIN
-
1057-880566Q14 BELT, DriveBELT, Drive
-
1110-8M0103824 SCREW, (M10 x 85)SCREW, (M10 x 85)
-
1212-4002319 WASHERWASHER
-
1311-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1484-856583A12 CABLE ASSEMBLYCABLE ASSEMBLY
-
1584-858414A04 CABLE ASSEMBLY, Brass, BraidedCABLE ASSEMBLY, Brass, Braided
-
1610-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
1712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1854-828991T CLIPCLIP
