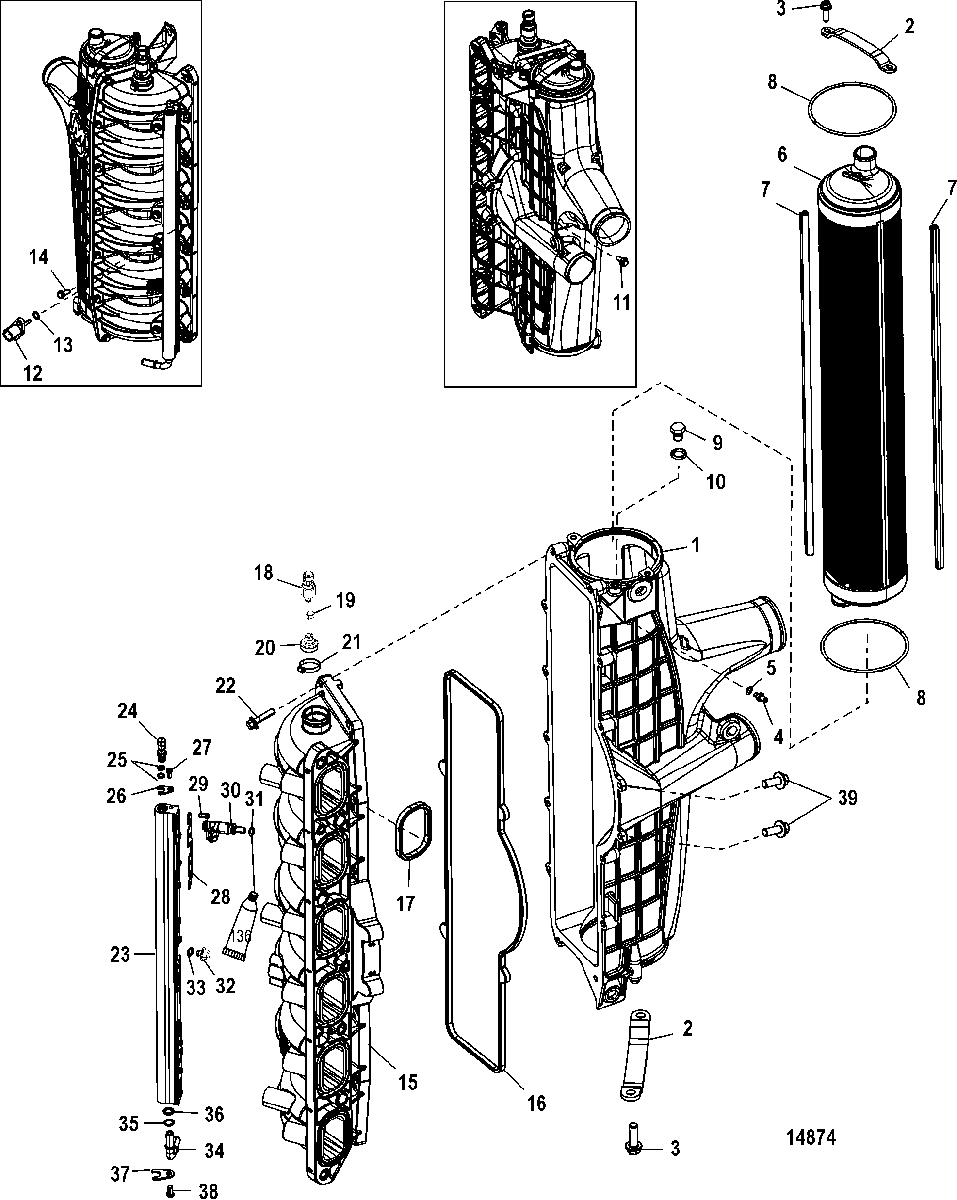

Charge Cooler/Intake Manfifold для Mercury - 225 VERADO (4-STROKE)(6 CYL.) 0P409357 THRU 0P464487
-
№АртикулНазвание
-
-8M0131233 MODULE ASSEMBLY, Intergrated Air/Fuel
SN# 1B279252 & BelowMODULE ASSEMBLY, Intergrated Air/Fuel
SN# 1B279252 & Below -
-8M0131233 MODULE ASSEMBLY, Intergrated Air Fuel
SN# 1B279253 & UpMODULE ASSEMBLY, Intergrated Air Fuel
SN# 1B279253 & Up -
18M0132388 CAC ASSEMBLYCAC ASSEMBLY
-
2895032 STRAPSTRAP
-
310-8M0103805 SCREW, (M6 x 18)SCREW, (M6 x 18)
-
422-8M0039993 FITTINGFITTING
-
5NSS NOT SOLD SEPARATE, O-Ring (Part of 895031 Kit)NOT SOLD SEPARATE, O-Ring (Part of 895031 Kit)
-
6895030A01 STACK ASSEMBLYSTACK ASSEMBLY
-
7895031 SEALSEAL
-
8NSS NOT SOLD SEPARATE, O-Ring (Part of 895031 Kit)NOT SOLD SEPARATE, O-Ring (Part of 895031 Kit)
-
919-8M0048079 FITTINGFITTING
-
10NSS NOT SOLD SEPARATE, O-Ring (Part of 895031 Kit)NOT SOLD SEPARATE, O-Ring (Part of 895031 Kit)
-
11895035 PLATEPLATE
-
12891663001 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
1325-892317001 O-RINGO-RING
-
1410-895054 SCREW, (M4 x 16 MM)SCREW, (M4 x 16 MM)
-
158M0083678 MANIFOLD ASSEMBLY, IntakeMANIFOLD ASSEMBLY, Intake
-
16895019 SEALSEAL
-
17895020 SEALSEAL
-
188M6000639 SENSORSENSOR
-
1954-13791 CLAMP, (15.7 mm), Map Sensor to BootCLAMP, (15.7 mm), Map Sensor to Boot
-
20892952500 BOOTBOOT
-
2154-888988001 CLAMP, (36.1 mm)CLAMP, (36.1 mm)
-
2210-8M0103807 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
238M0129411 FUEL RAIL KITFUEL RAIL KIT
-
24895028A01 VALVE, SchraderVALVE, Schrader
-
2525-895056 O-RINGO-RING
-
26895026 BRACKETBRACKET
-
2710-895051 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
28895024 BRACKETBRACKET
-
2910-895051 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
308M0041571 INJECTOR, Fuel
SN# 1B279252 & BelowINJECTOR, Fuel
SN# 1B279252 & Below -
308M0041571 INJECTOR, Fuel
SN# 1B279253 & UpINJECTOR, Fuel
SN# 1B279253 & Up -
3125-851889 O-RINGO-RING
-
32895025 DAMPERDAMPER
-
3325-851889 O-RINGO-RING
-
3432-895029A01 TUBE KIT, Fuel InletTUBE KIT, Fuel Inlet
-
3512-895055 WASHERWASHER
-
3625-895057 O-RINGO-RING
-
37895027 BRACKETBRACKET
-
3810-895051 SCREW, (M5 x 10)SCREW, (M5 x 10)
