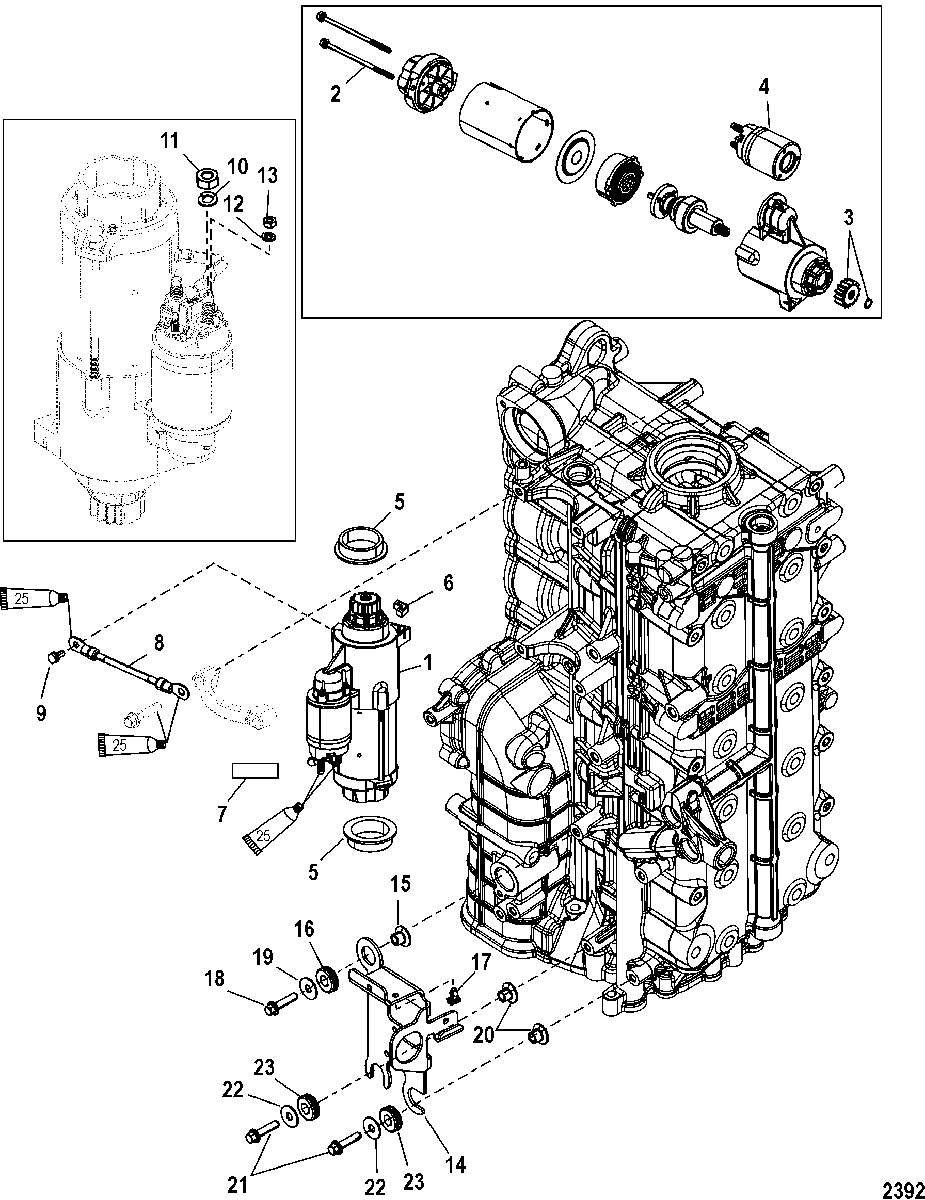

Starter Motor/Electrical Cable Bracket Mounting для Mercury - 225 VERADO (4-STROKE)(6 CYL.) 0P409357 THRU 0P464487
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Starter Motor AssemblyNOT SOLD SEPARATE, Starter Motor Assembly
-
150-892339T01 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
343-880805A1 GEAR KITGEAR KIT
-
4809463A1 SOLENOID KITSOLENOID KIT
-
523-8M0034918 COLLARCOLLAR
-
68M0043276 STOPSTOP
-
7NSS NOT SOLD SEPARATE, Decal-Waring-High VoltageNOT SOLD SEPARATE, Decal-Waring-High Voltage
-
884-93388A1 CABLE ASSEMBLY, (6.00 Inches) BlackCABLE ASSEMBLY, (6.00 Inches) Black
-
910-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
1013-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1111-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
1213-400255 LOCKWASHER, (M5)LOCKWASHER, (M5)
-
1311-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
14889666A01 BRACKET, Electrical CableBRACKET, Electrical Cable
-
1523-8502341 BUSHINGBUSHING
-
1625-833155 GROMMETGROMMET
-
1754-879962 CLIPCLIP
-
1810-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
1912-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
2023-8502341 BUSHINGBUSHING
-
2110-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
2212-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
2325-833155 GROMMETGROMMET
-
-61-895247R06 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
