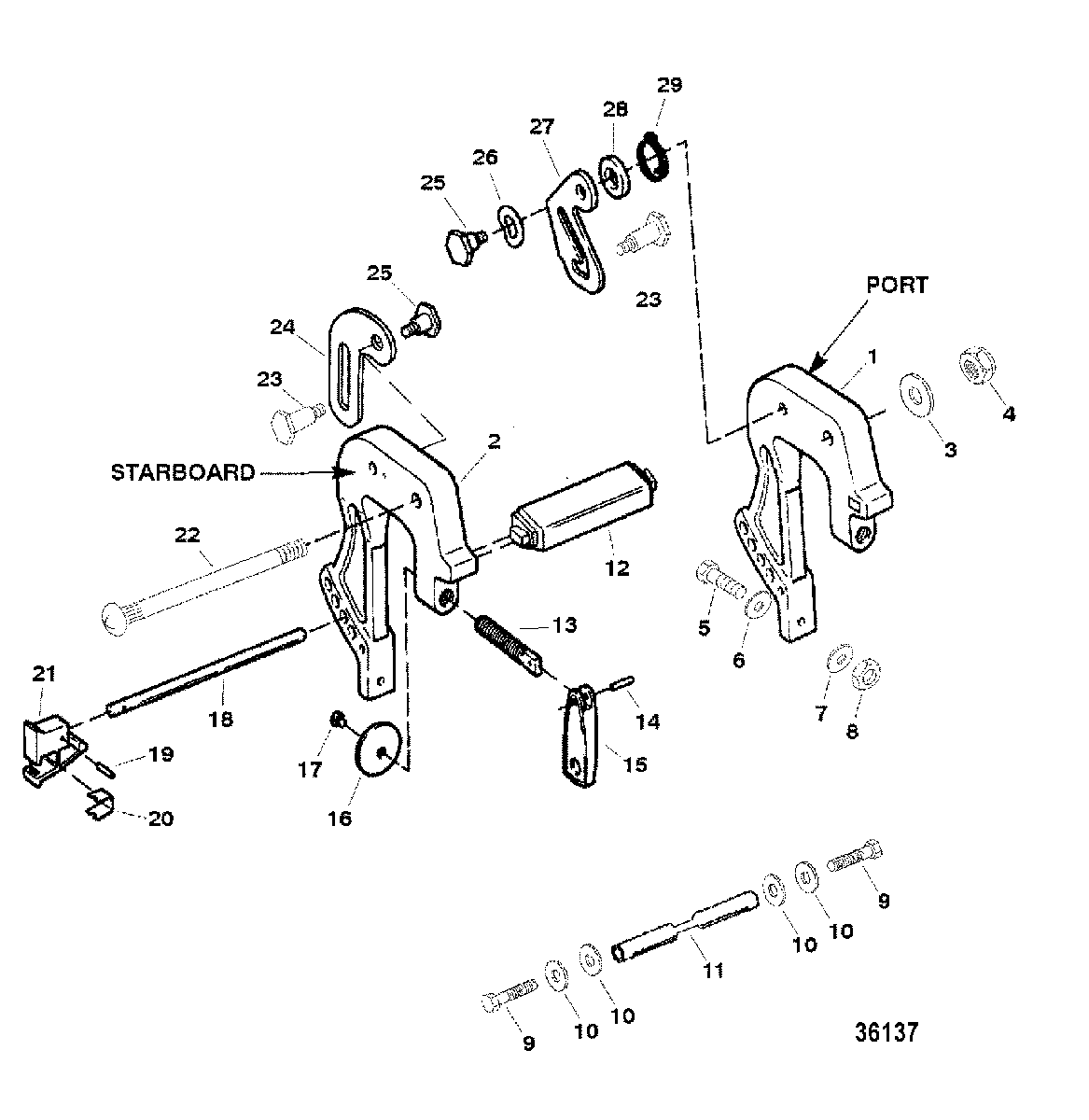

CLAMP BRACKETS для Mercury - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E268781 THRU 0E287999
-
№АртикулНазвание
-
11400-850073T2 BRACKET, Stern (PORT)
(MERCURY)BRACKET, Stern (PORT)
(MERCURY) -
11400-850073T4 BRACKET, Stern (PORT)
(MARINER)BRACKET, Stern (PORT)
(MARINER) -
21400-850073T3 BRACKET, Stern (STARBOARD)
(MERCURY)BRACKET, Stern (STARBOARD)
(MERCURY) -
21400-850073T5 BRACKET, Stern (STARBOARD)
(MARINER)BRACKET, Stern (STARBOARD)
(MARINER) -
312-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
411-F7026 NUT, (.375-16) (.375-16)NUT, (.375-16) (.375-16)
-
510-832820 SCREW (.250-20 X 3.00)-MOUNTINGSCREW (.250-20 X 3.00)-MOUNTING
-
612-29245 WASHER, (.281 x .500 x .060) Stainless Steel (THIN)-MOUNTINGWASHER, (.281 x .500 x .060) Stainless Steel (THIN)-MOUNTING
-
712-67983 WASHERWASHER
-
811-8267118 NUT, (.250-20), MOUNTINGNUT, (.250-20), MOUNTING
-
910-4000332 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
1012-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1123-852963 SPACERSPACER
-
12830564 HANDLE, CarryingHANDLE, Carrying
-
1310-826248 SCREW, Stern BracketSCREW, Stern Bracket
-
1417-24198 PIN, RollPIN, Roll
-
15F424075T1 HANDLE, Clamp Screw
(MERCURY)HANDLE, Clamp Screw
(MERCURY) -
15F424075T2 HANDLE, Clamp Screw
(MARINER)HANDLE, Clamp Screw
(MARINER) -
16F24074 FOOT, Stern Bracket ScrewFOOT, Stern Bracket Screw
-
1710-69022 SCREW, (#10-32 x .500) Stainless SteelSCREW, (#10-32 x .500) Stainless Steel
-
18851924A2 PIN ASSEMBLY, Tilt - Stern BracketPIN ASSEMBLY, Tilt - Stern Bracket
-
1917-38489 PIN, RollPIN, Roll
-
2024-F286461 SPRINGSPRING
-
21851929 HANDLE, Lock BarHANDLE, Lock Bar
-
22850185 BOLT, Pivot - Stern Bracket (.375-16 X 7.375)BOLT, Pivot - Stern Bracket (.375-16 X 7.375)
-
2317-819707 PIN, Tilt Lock (.250-20)PIN, Tilt Lock (.250-20)
-
24826251 LEVER, Tilt LockLEVER, Tilt Lock
-
2510-F286422-1 SCREW, (.312-18 Special) (.312-18)SCREW, (.312-18 Special) (.312-18)
-
2613-69150 WAVE WASHERWAVE WASHER
-
27F429541 LOCK, TiltLOCK, Tilt
-
2823-819226 SPACER, Tilt LockSPACER, Tilt Lock
-
2924-F286544-1 SPRING, Tilt LockSPRING, Tilt Lock
