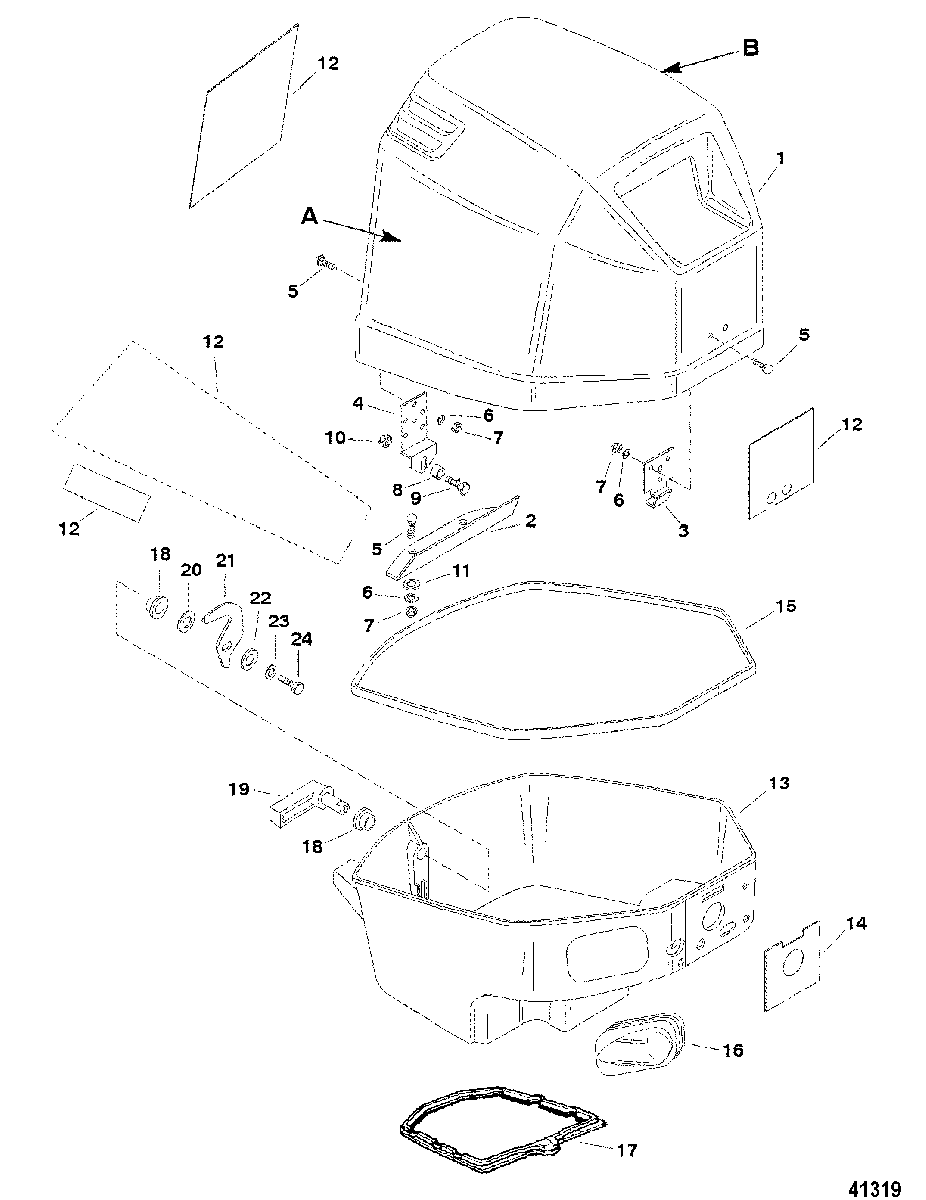

COWL ASSEMBLY, TOP AND BOTTOM для Mercury - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E268781 THRU 0E287999
-
№АртикулНазвание
-
1100-819135A5 TOP COWL ASSEMBLY
(WITHOUT DECALS) (MERCURY)TOP COWL ASSEMBLY
(WITHOUT DECALS) (MERCURY) -
1100-819135A6 TOP COWL ASSEMBLY
(WITHOUT DECALS) (MARINER)TOP COWL ASSEMBLY
(WITHOUT DECALS) (MARINER) -
2819447 BAFFLEBAFFLE
-
3819130 BRACKET, FrontBRACKET, Front
-
4819371 RETAINER, Rear CowlRETAINER, Rear Cowl
-
510-835499 SCREW (#8-32 X .440)SCREW (#8-32 X .440)
-
613-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
711-850042 NUT (#8-32)NUT (#8-32)
-
823-F681759 ROLLER, LatchROLLER, Latch
-
910-F681026 SCREW (SPECIAL)-LATCH ROLLERSCREW (SPECIAL)-LATCH ROLLER
-
1011-814101 NUT, (.250-20) Stainless SteelNUT, (.250-20) Stainless Steel
-
1112-F8155 WASHERWASHER
-
1237-854206A1 DECAL SET, Top Cowl
(MERCURY) (FRONT-REAR-PORT-STBD)DECAL SET, Top Cowl
(MERCURY) (FRONT-REAR-PORT-STBD) -
1237-854207A1 DECAL SET, Top Cowl
(MARINER) (FRONT-REAR-PORT-STBD)DECAL SET, Top Cowl
(MARINER) (FRONT-REAR-PORT-STBD) -
13100-819280A13 BOTTOM COWL ASSEMBLY
(MERCURY)BOTTOM COWL ASSEMBLY
(MERCURY) -
13100-819280A14 BOTTOM COWL ASSEMBLY
(MARINER)BOTTOM COWL ASSEMBLY
(MARINER) -
1438-819281 PLATEPLATE
-
15F392756 SEAL, Top Of Bottom Cowl (4.075 FT. BULK) (CUT 3.783 FT.)SEAL, Top Of Bottom Cowl (4.075 FT. BULK) (CUT 3.783 FT.)
-
1625-93527002 GROMMET, Control CableGROMMET, Control Cable
-
17827895 SEAL, Bottom CowlSEAL, Bottom Cowl
-
1823-812707 BUSHINGBUSHING
-
19854004A1 HANDLE ASSEMBLY, Cowl Latch
(MERCURY)HANDLE ASSEMBLY, Cowl Latch
(MERCURY) -
19854004A2 HANDLE ASSEMBLY, Cowl Latch
(MARINER)HANDLE ASSEMBLY, Cowl Latch
(MARINER) -
2013-F2047 WASHER, WaveWASHER, Wave
-
218M0001081 CAM, Latch ShaftCAM, Latch Shaft
-
2212-71055 WASHERWASHER
-
2313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2410-28635 SCREW, (.250-20 x .620) Stainless Steel (.250-20 X .625)SCREW, (.250-20 x .620) Stainless Steel (.250-20 X .625)
