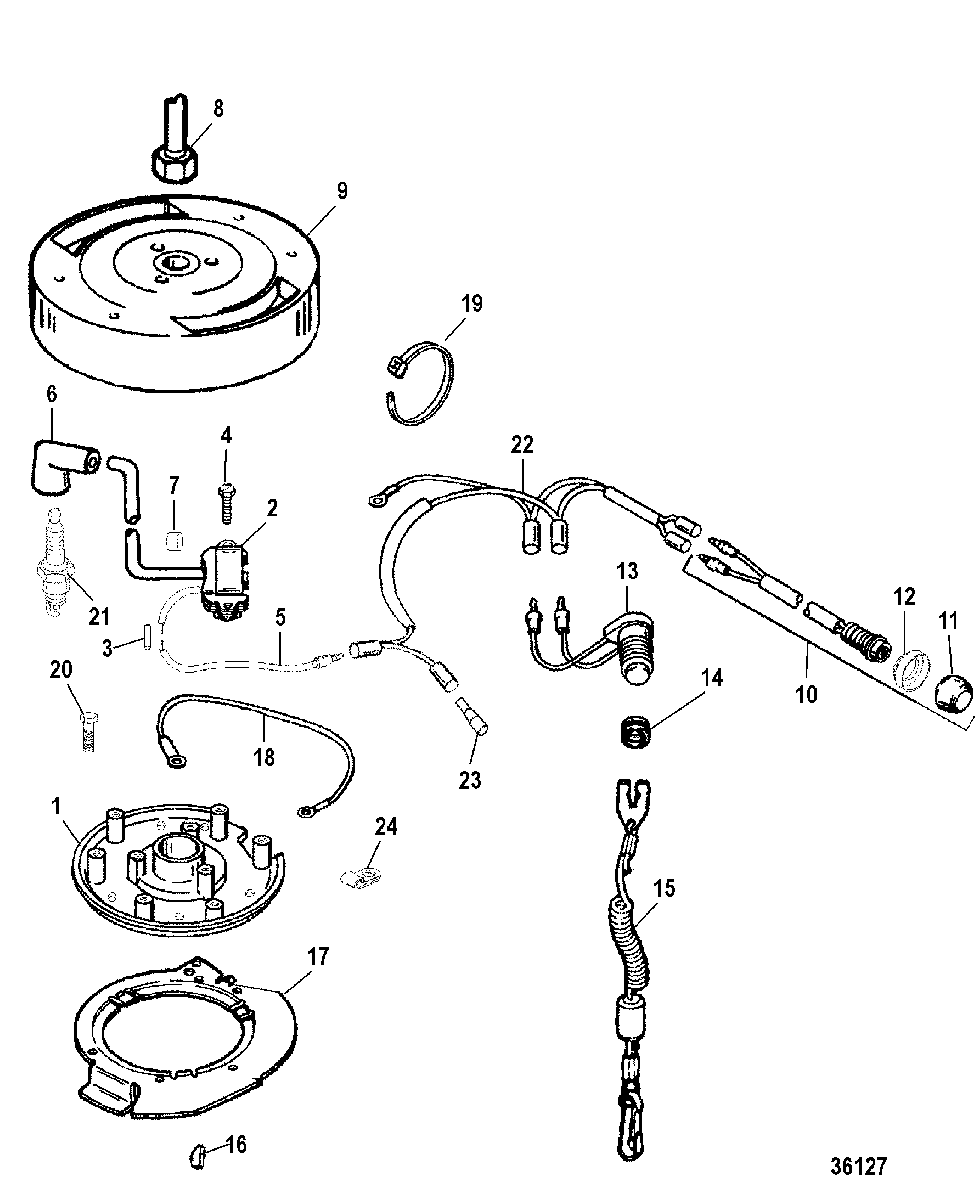

IGNITION SYSTEM для Mercury - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E268781 THRU 0E287999
-
№АртикулНазвание
-
-819155A2 STATOR ASSEMBLY (COMPLETE)STATOR ASSEMBLY (COMPLETE)
-
1300-819155T PLATE, StatorPLATE, Stator
-
2300-850899T1 MODULE KIT, IgnitionMODULE KIT, Ignition
-
386-830865 CONNECTOR (SERVICE ONLY)CONNECTOR (SERVICE ONLY)
-
410-824353 SCREW (#8-32 X .750)-IGN MODULE MOUNTSCREW (#8-32 X .750)-IGN MODULE MOUNT
-
584-12479A60 CABLE ASSEMBLY, Modules To HarnessCABLE ASSEMBLY, Modules To Harness
-
685-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
720117A1 MARKER SET, Ignition Cables (#1) (#2) (#3)MARKER SET, Ignition Cables (#1) (#2) (#3)
-
8F681091 NUT (SPECIAL)-FLYWHEELNUT (SPECIAL)-FLYWHEEL
-
9200-824380T4 FLYWHEELFLYWHEEL
-
1087-824440A14 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
11824466A3 COVER ASSEMBLY, Stop SwitchCOVER ASSEMBLY, Stop Switch
-
12824915 BEZEL, Stop Switch CoverBEZEL, Stop Switch Cover
-
1387-826214A1 SWITCH ASSEMBLY, Emergency StopSWITCH ASSEMBLY, Emergency Stop
-
1411-855594 NUT (SPECIAL)-STOP SWITCH SLEEVENUT (SPECIAL)-STOP SWITCH SLEEVE
-
15879104 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
1628-F458498-1 KEY, Crankshaft/FlywheelKEY, Crankshaft/Flywheel
-
178278961 CAM, ThrottleCAM, Throttle
-
1884-821375A44 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1956762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
1954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2010-824358 SCREW, (#10-24 x .500) (#10-24 X .500)-STATOR PLATESCREW, (#10-24 x .500) (#10-24 X .500)-STATOR PLATE
-
2133-896323 SPARK PLUG (CHAMPION # L82C)SPARK PLUG (CHAMPION # L82C)
-
2133-896329874 SPARK PLUG (RFI) (CHAMPION # RL82C)SPARK PLUG (RFI) (CHAMPION # RL82C)
-
2284-79138A93 HARNESS ASSEMBLY, Engine StopHARNESS ASSEMBLY, Engine Stop
-
2313541 PLUG, MalePLUG, Male
-
2454-831275 CLAMPCLAMP
