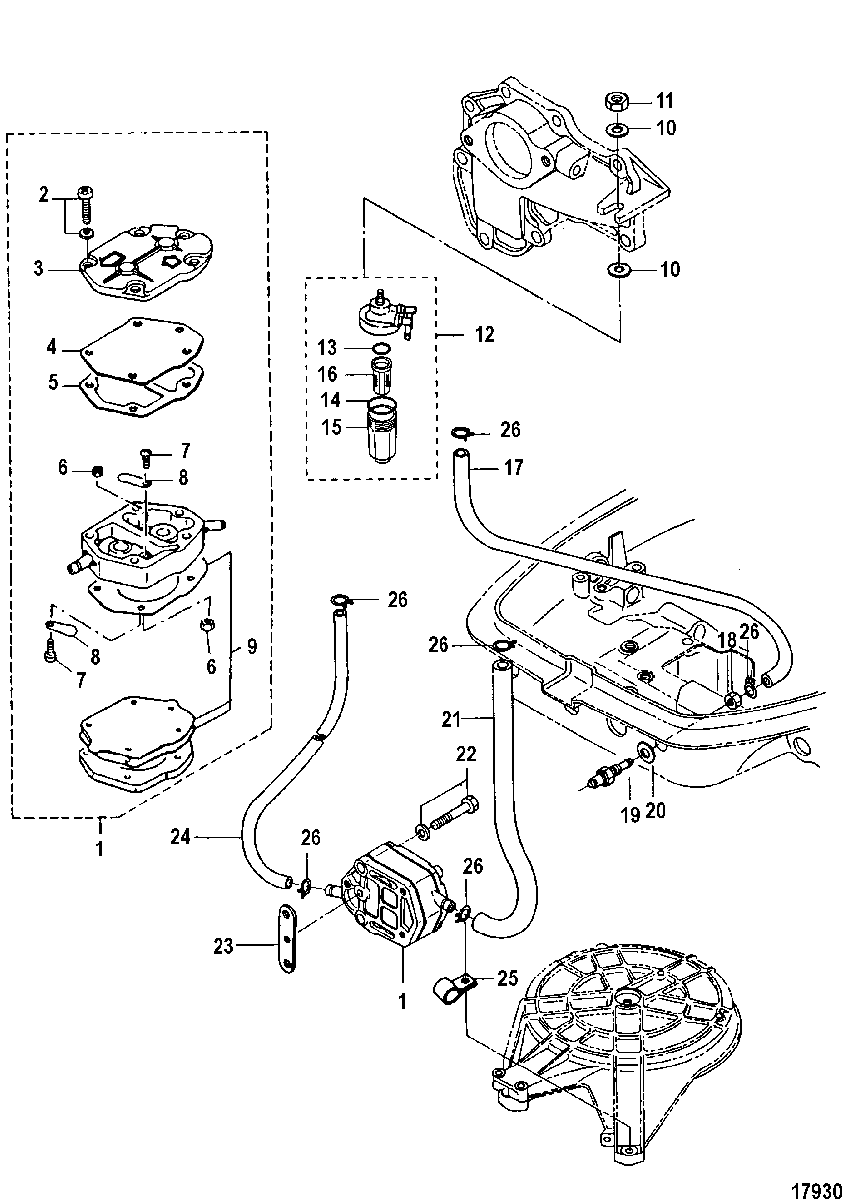

Fuel Pump для Mercury - 25 Jet (2 CYL.)(2-STROKE)(International) 0N088578 & Up
-
№АртикулНазвание
-
1853729A1 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
210-823042071 SCREWSCREW
-
3853730 COVERCOVER
-
4853731 DIAPHRAGMDIAPHRAGM
-
527-8537031 GASKETGASKET
-
611-8537222 NUTNUT
-
710-853698 SCREWSCREW
-
8853732 CHECK VALVECHECK VALVE
-
98537311 DIAPHRAGM SETDIAPHRAGM SET
-
1012-8M0135942 WASHERWASHER
-
1111-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
1235-8M0088825 FILTER ASSEMBLY, Fuel
SN# 0N072166 & BelowFILTER ASSEMBLY, Fuel
SN# 0N072166 & Below -
1235-8M0088825 FILTER ASSEMBLY, Fuel
SN# 0N072167 & UpFILTER ASSEMBLY, Fuel
SN# 0N072167 & Up -
1325-8518151 O-RING
SN# 0N072166 & BelowO-RING
SN# 0N072166 & Below -
1425-851815 O-RING
SN# 0N072166 & BelowO-RING
SN# 0N072166 & Below -
1425-851815006 O-RING
SN# 0N072167 & UpO-RING
SN# 0N072167 & Up -
158537351 CUP
SN# 0N072166 & BelowCUP
SN# 0N072166 & Below -
15853735002 CUP
SN# 0N072167 & UpCUP
SN# 0N072167 & Up -
1635-8537331 FILTER
SN# 0N072166 & BelowFILTER
SN# 0N072166 & Below -
1635-853733002 FILTERFILTER
-
1732-8M0057113 HOSE, (150 mm) (Cut to 140mm)
Design IHOSE, (150 mm) (Cut to 140mm)
Design I -
1732-8M0057113 TUBING, Cut to 110mm
Design IITUBING, Cut to 110mm
Design II -
1811-17480 NUTNUT
-
1922-853736 CONNECTOR, FuelCONNECTOR, Fuel
-
2027-803663017 GASKETGASKET
-
2132-8M0057113 TUBING, (230 mm)TUBING, (230 mm)
-
2210-162451 SCREWSCREW
-
2327-8M0084271 GASKETGASKET
-
2432-8M0057113 TUBING, Rubber (160 mm)TUBING, Rubber (160 mm)
-
2554-953951 CLAMPCLAMP
-
2654-95395 CLIP, Stainless SteelCLIP, Stainless Steel
-
-27-8M0119225 GASKET SET, Powerhead
SN# 0N076150 & BelowGASKET SET, Powerhead
SN# 0N076150 & Below -
-27-8M0119225 GASKET SET, Powerhead
SN# 0N076151 & UpGASKET SET, Powerhead
SN# 0N076151 & Up
