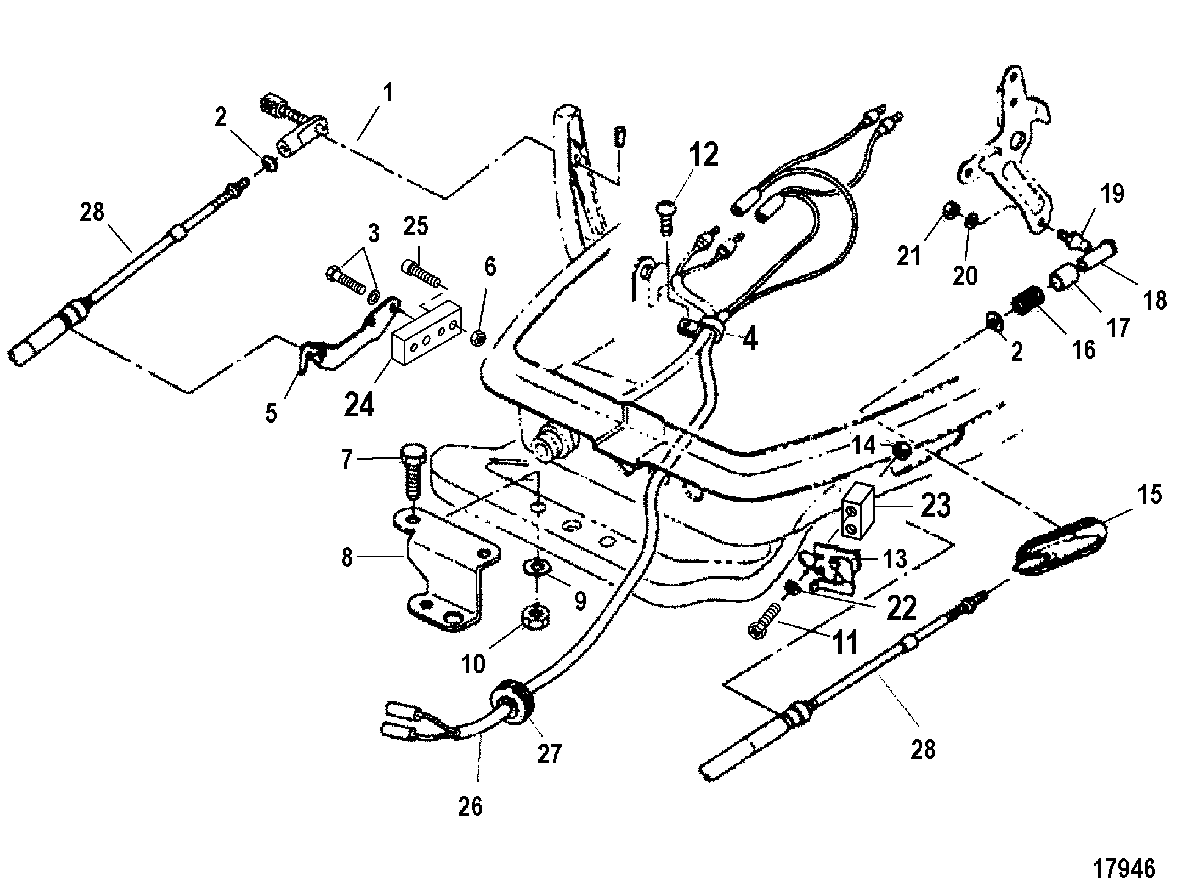

Remote Control Attaching Kit для Mercury - 25 Jet (2 CYL.)(2-STROKE)(International) 0N088578 & Up
-
№АртикулНазвание
-
-853800A02 ATTACHING KIT, Remote Control
SN# 0N114998 & BelowATTACHING KIT, Remote Control
SN# 0N114998 & Below -
-853800A02 ATTACHING KIT, Remote Control
SN# 0N114999 & UpATTACHING KIT, Remote Control
SN# 0N114999 & Up -
1853804 CONNECTOR SHIFT KITCONNECTOR SHIFT KIT
-
212-17029 WASHERWASHER
-
310-167051 BOLTBOLT
-
454-17169 CLAMPCLAMP
-
58538021 RETAINER, Shift CableRETAINER, Shift Cable
-
611-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
710-8230428 BOLTBOLT
-
88538022 PLATE, Steering HookPLATE, Steering Hook
-
912-16192 WASHERWASHER
-
1011-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
1110-898103A79 SCREW/WASHER KIT, Includes Reference 22
SN# 0N114998 & BelowSCREW/WASHER KIT, Includes Reference 22
SN# 0N114998 & Below -
1110-898103206 SCREW
SN# 0N114999 & UpSCREW
SN# 0N114999 & Up -
1210-16827 SCREWSCREW
-
13853802 RETAINER, Throttle CableRETAINER, Throttle Cable
-
1411-16081 NUT, Stainless SteelNUT, Stainless Steel
-
1525-853803 GROMMETGROMMET
-
1624-17028 SPRINGSPRING
-
1717027 CAPCAP
-
1817026 BRACKETBRACKET
-
19853801 BALL JOINTBALL JOINT
-
2013-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
2111-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2213-16079 LOCKWASHERLOCKWASHER
-
2323-898103207 SPACER
SN# 0N114999 & UpSPACER
SN# 0N114999 & Up -
2423-898103209 SPACER
SN# 0N114999 & UpSPACER
SN# 0N114999 & Up -
2510-898103208 SCREW
SN# 0N114999 & UpSCREW
SN# 0N114999 & Up -
2684-853799A1 CABLE ASSEMBLY
(3.9M)CABLE ASSEMBLY
(3.9M) -
2684-853799A2 CABLE ASSEMBLY
(5.9M)CABLE ASSEMBLY
(5.9M) -
2725-162262 GROMMETGROMMET
-
28NSS NOT SOLD SEPARATE, Throttle/Shift Cable
(See Accessory Guide)NOT SOLD SEPARATE, Throttle/Shift Cable
(See Accessory Guide)
