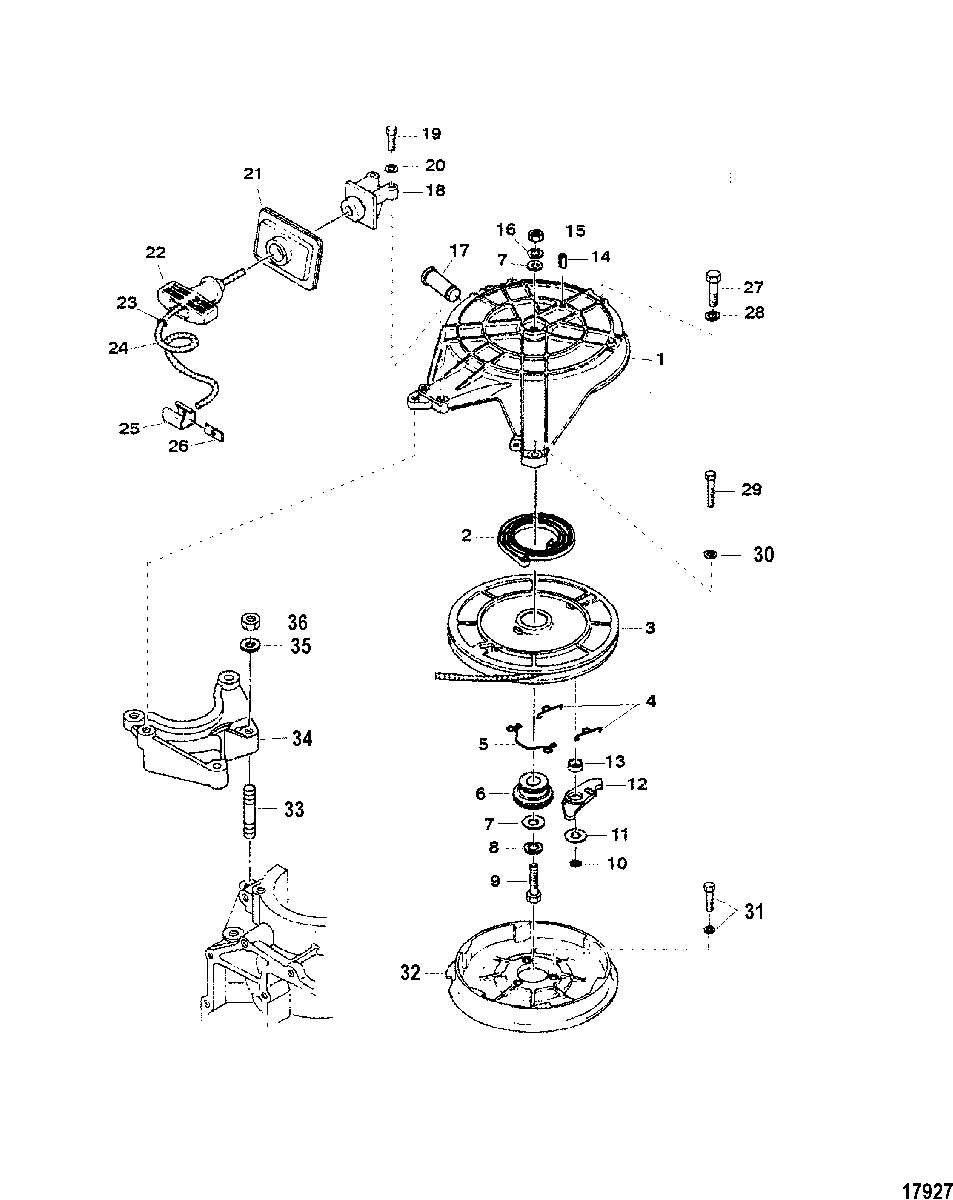

Recoil Starter для Mercury - 25 Jet (2 CYL.)(2-STROKE)(International) 0N088578 & Up
-
№АртикулНазвание
-
-812632T04 STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
1812632T01 HOUSING, StarterHOUSING, Starter
-
224-8126451 SPRING, StarterSPRING, Starter
-
3812633T01 REELREEL
-
424-812634005 SPRINGSPRING
-
524-8126342 SPRINGSPRING
-
6853753 SHAFT, StarterSHAFT, Starter
-
712-4002217 WASHERWASHER
-
813-8537233 LOCKWASHERLOCKWASHER
-
910-8M0106739 BOLTBOLT
-
1053-953181 E RINGE RING
-
1112-898101937 WASHERWASHER
-
12812635T01 RATCHETRATCHET
-
1323-8537432 BUSHINGBUSHING
-
1417-952187 PIN, RollPIN, Roll
-
1511-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
1613-8537233 LOCKWASHERLOCKWASHER
-
17853757 LEVER, Shift InterlockLEVER, Shift Interlock
-
18853754 GUIDEGUIDE
-
1910-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2013-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
21161102 PLATE, SealPLATE, Seal
-
228126401 HANDLE, Starter RopeHANDLE, Starter Rope
-
2325-16109 O-RINGO-RING
-
2450-8126391 ROPE, StarterROPE, Starter
-
25853755 RETAINERRETAINER
-
26853756 PLATEPLATE
-
2710-8M0106739 BOLTBOLT
-
2813-17025 LOCKWASHERLOCKWASHER
-
2910-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3013-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
3110-168284 BOLTBOLT
-
32812642T01 PULLEYPULLEY
-
3316-8M0106733 STUDSTUD
-
34853758 BRACKET, StarterBRACKET, Starter
-
3512-4002217 WASHERWASHER
-
3611-8537228 NUTNUT
-
3726-8M0129213 SEAL
SN# ON160523 & UpSEAL
SN# ON160523 & Up
