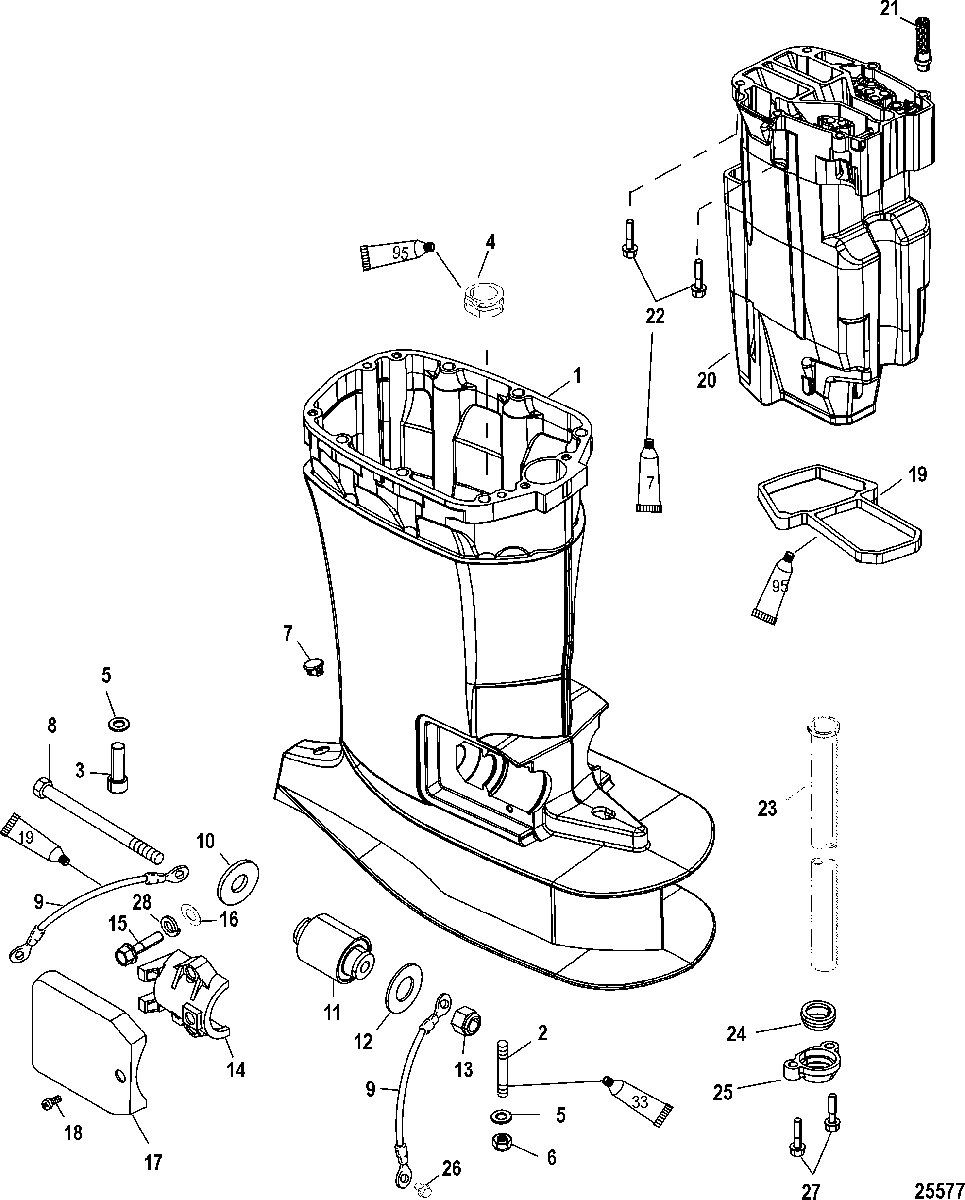

Drivehshaft Housing and Exhaust Tube для Mercury - 250 PRO XS (3.0L DFI) 1B426561 THRU 1B752546
-
№АртикулНазвание
-
13518-832937A06 HOUSING ASSEMBLY, Driveshaft
(Long)HOUSING ASSEMBLY, Driveshaft
(Long) -
13519-832938A06 HOUSING ASSEMBLY, Driveshaft
(X-Long)HOUSING ASSEMBLY, Driveshaft
(X-Long) -
216-8M0070951 STUD, (M12 x 52)STUD, (M12 x 52)
-
310-892860 SCREW, (M12 x 35)SCREW, (M12 x 35)
-
425-8331231 GROMMETGROMMET
-
512-856982 WASHER, (.500 x .810 x .090) Stainless SteelWASHER, (.500 x .810 x .090) Stainless Steel
-
611-896895 NUT, (M12)NUT, (M12)
-
719-64649 PLUGPLUG
-
810-898834 BOLT, (M14 x 178)BOLT, (M14 x 178)
-
988238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1012-815432 WASHER, (.562 x 2.00 x .125)WASHER, (.562 x 2.00 x .125)
-
118M0055931 MOUNT (Lower)
(Long)MOUNT (Lower)
(Long) -
118M0050840 MOUNT (Lower)
(X-Long)MOUNT (Lower)
(X-Long) -
1212-825190 WASHERWASHER
-
1311-896602 NUT, (M14)NUT, (M14)
-
14879150A90 CLAMPCLAMP
-
1510-8M0084475 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
1612-847541 WASHERWASHER
-
17879150A90 COVER, Lower MountCOVER, Lower Mount
-
1810-69079 SCREW, (#10-16 x .440)SCREW, (#10-16 x .440)
-
198329321 SEALSEAL
-
20833116A19 TUBE ASSEMBLY, ExhaustTUBE ASSEMBLY, Exhaust
-
2135-8M0026113 STRAINERSTRAINER
-
2210-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2332-8M0042785 TUBE, Water
(Long)TUBE, Water
(Long) -
2332-8M0042786 TUBE, Water
(X-Long)TUBE, Water
(X-Long) -
24832940001 SEALSEAL
-
258329391 CLAMPCLAMP
-
2610-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
2710-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2813-72521 LOCKWASHER, Internal ToothLOCKWASHER, Internal Tooth
