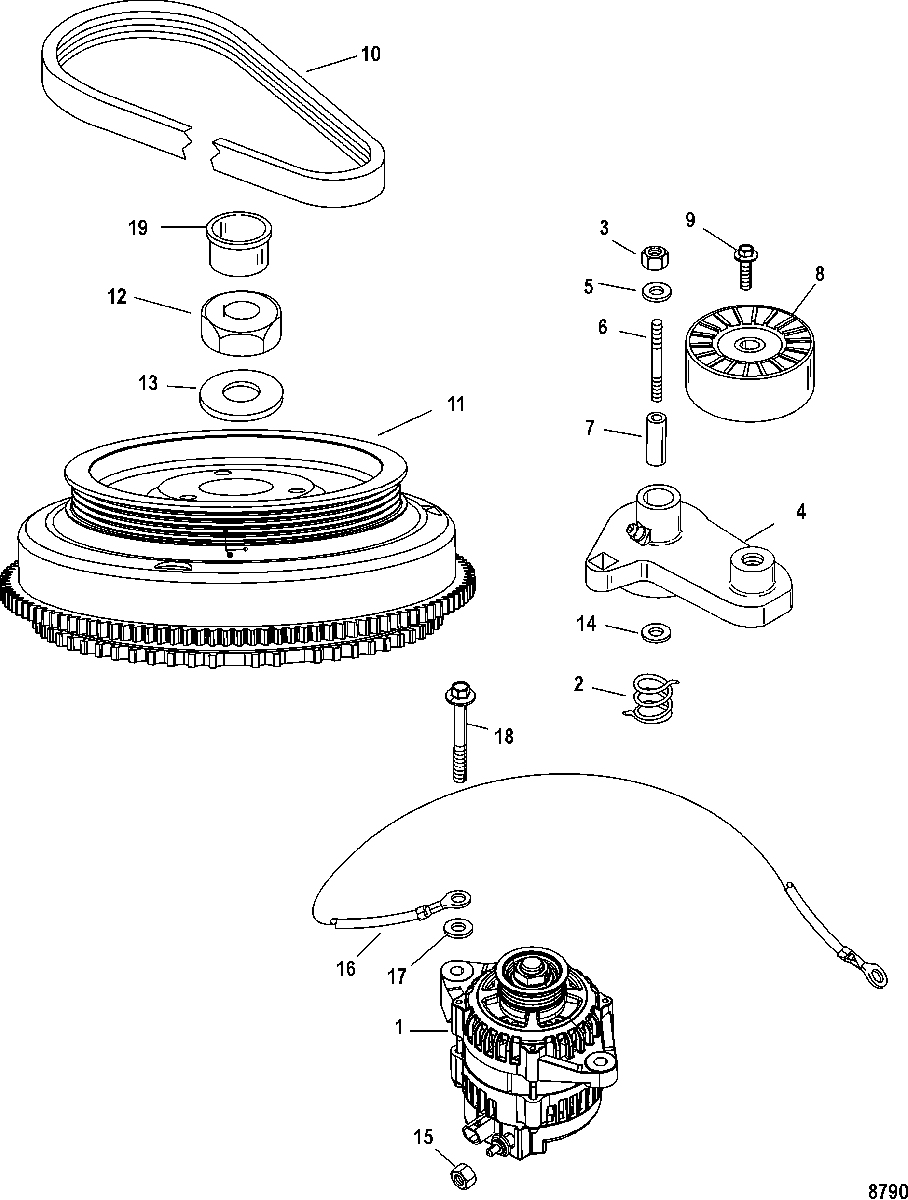

Flywheel/Alternator для Mercury - 250 PRO XS (3.0L DFI) 1B426561 THRU 1B752546
-
№АртикулНазвание
-
18M0064020 ALTERNATORALTERNATOR
-
224-8523742 SPRINGSPRING
-
311-400636 NUTNUT
-
4856815T2 ARM TENSIONER ASSEMBLYARM TENSIONER ASSEMBLY
-
512-4002320 WASHERWASHER
-
616-8M0034457 STUD, (M10 x 85)STUD, (M10 x 85)
-
616-8M0063255 STUD, M10x92
ProXSSTUD, M10x92
ProXS -
723-8568941 BUSHINGBUSHING
-
88M6005030 PULLEY ASSEMBLYPULLEY ASSEMBLY
-
910-4010835 SCREW, (M10 x 35) Hex Flange - Stainless SteelSCREW, (M10 x 35) Hex Flange - Stainless Steel
-
1057-828507Q5 BELTBELT
-
11283-859619T1 FLYWHEELFLYWHEEL
-
1211-42979 NUT, (M16)NUT, (M16)
-
1312-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
1412-47533 WASHER, ThermostatWASHER, Thermostat
-
1511-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1684-856583A5 CABLE ASSEMBLY, To BlockCABLE ASSEMBLY, To Block
-
1712-4002319 WASHERWASHER
-
1810-82130150 SCREW, (M10 x 50)SCREW, (M10 x 50)
-
1919-45907 PLUG, YellowPLUG, Yellow
